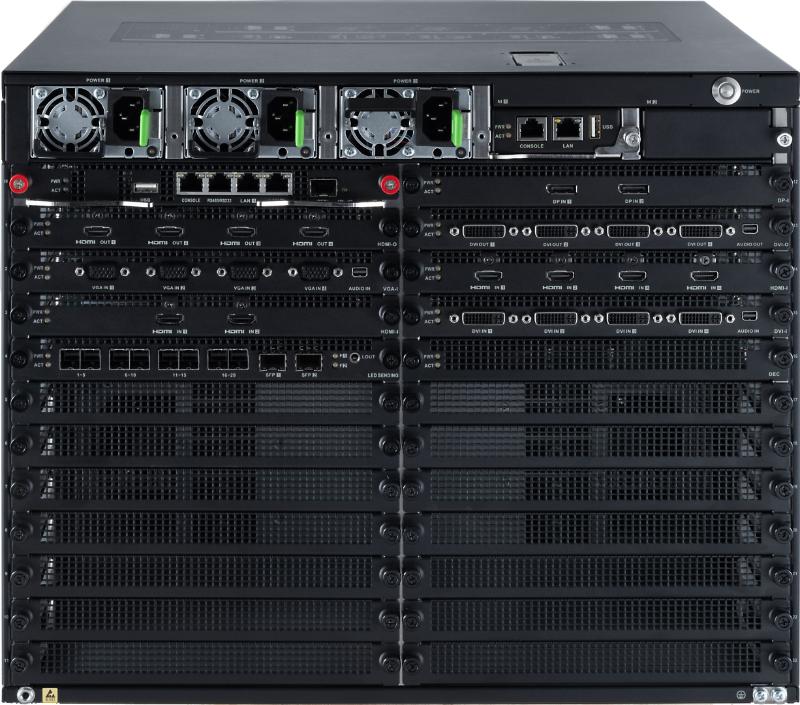

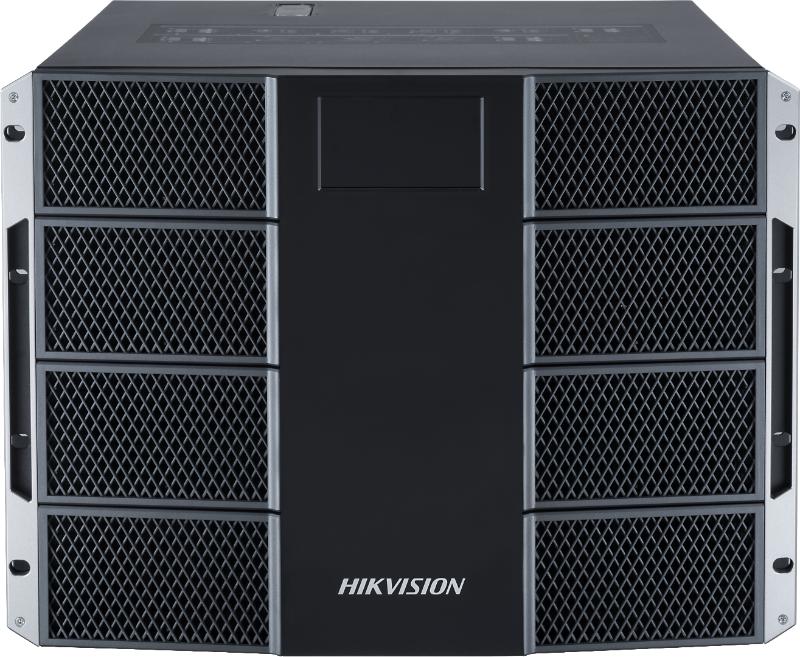

בקר קיר וידאו DS-C30S-S23

מפרט טכני

Chassis Height

8 U

Bus Type

10 GB network switching

Signal Sampling Quality

YUV 444

Mixed Installation of Service Boards

Supported

Main Control Board Slot

2

Installed Main Control Boards

1

Max. Input Slot

22

Service Board Slot

Input slots: 0, output slots: 0, mixed slots: 23, empty slots: 0

Max. Output Slot

22

Device Decoding Capability

Up to 8 decoding boards. Supports 128 channels of 1080p 30 fps and simultaneously decoding of 256 channels of network videos to the video wall.

Device Splicing Capability

88 channels

Power Supply Slot

3

Installed Power Supplies

2

Fan

6

Dual Device Hot Backup

Supported

USB Interface No.

2 × USB 2.0

Serial Interface

2 × Console port (RJ-45) + 1 × RS-485/RS-232 multiplex interface (RJ-45, baud rate:115200, valid data bit: 8 bit)

Screen Type

4.3 inch non-touch screen, length × width: 105.42 mm × 67.07 mm (4.15 inch × 2.64 inch), resolution: 480 × 272

Power Interface

100 VAC to 240 VAC, 50/60 Hz

Working Temperature

0 °C ~ 50 °C

Working Humidity

10 ~ 90%

Management Network Port

2 × 10/100/1000 Mbps auto-sensing Ethernet interface (2 network ports on the switching board and 1 network port reserved on the main control board)

Transmission Protocol

SDK, RTSP, ONVIF

Video Walls

8

Video Wall Scale

88

Split Window

Supported

Open Windows

16

Window Division per Screen

1, 4, 6, 8, 9, 16

Input Source Copy Capability

Each output board can duplicate eight 2K images from the input source but the LED controller board does not have copy capability.

Layers Per Screen

8 × 1080p layers or 4 × 4K layers

Layers per Device

512 (fully installed with the output boards)

Scenes

128

Scene Auto-Switch Delay

400 ms

Plans

128

Preview Resolution

16-channel D1 or 32-channel CIF; 4-channel D1 or 16-channel CIF when previewing the image of a video wall on a client with all service boards installed in the device

UHD Fusions

≤ 16

Background Image

Total: 8; One background image on each video wall. Resolution: 16382 × 8192 Format: JGP, JPEG

Subtitles

Total: ≤ 12; Single video wall: ≤ 3

Input OSD

Supported

Input Image Clipping

Supported 200 pixel points on top, bottom, left, and right.

Local Signal Source Decoding Delay

50 ms

Network Signal Source Decoding Delay

200 ms

Signal Source Live View

Supported

Net Weight

≤ 57.54 kg (126.87 lb.) Full configuration, including 31.14 kg (68.65 lb.) chassis and 1.05 kg (2.31 lb.) for each service board

Gross Weight

≤ 105.81 kg (233.48 lb.) Full configuration, including 59.35 kg (130.88 lb.) chassis and 2.02 kg (4.45 lb.) for each service board

Dimensions (W × H × D)

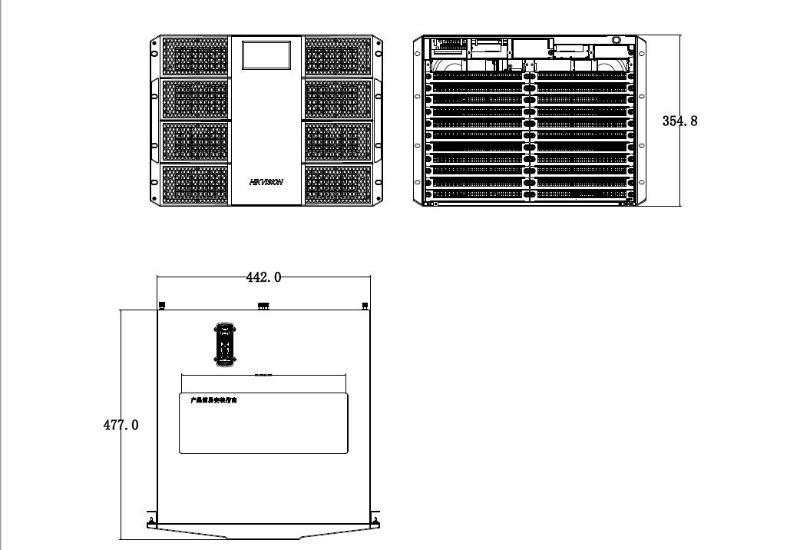

442 mm × 354.8 mm × 447 mm (17.4 inch × 13.97 inch × 17.59 inch)

Packing List

1 × grounding cable, 1 × audio adapter cable, 1 × serial port cable, 1 × AC power cord, 2 × power supply, 1 × regulatory compliance and safety information manual

Power Consumption

≤ 1000 W (full configuration)
