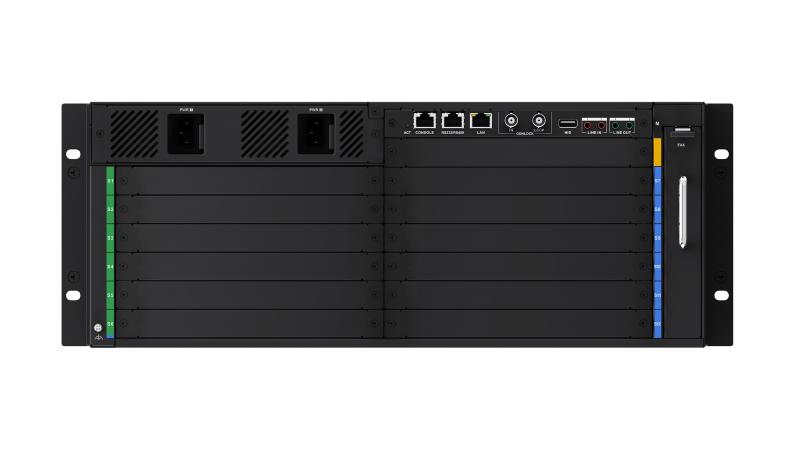

בקר קיר וידאו DS-C66S-S12

מפרט טכני

Processing Depth

8/10 bit

Hot Swapping

Supported

Chassis Height

4 U

Bus Type

Network switching

Signal Sampling Quality

Up to RGB101010

Main Control Board Slot

1

Installed Main Control Boards

1

Max. Input Slot

6

Service Board Slot

Input slots: 6, output slots: 6, mixed slots: 0, empty slots: 1

Power Supply Slot

2

Installed Power Supplies

1

Fans

1

USB Interface No.

2 × USB 2.0+1 × Type-C

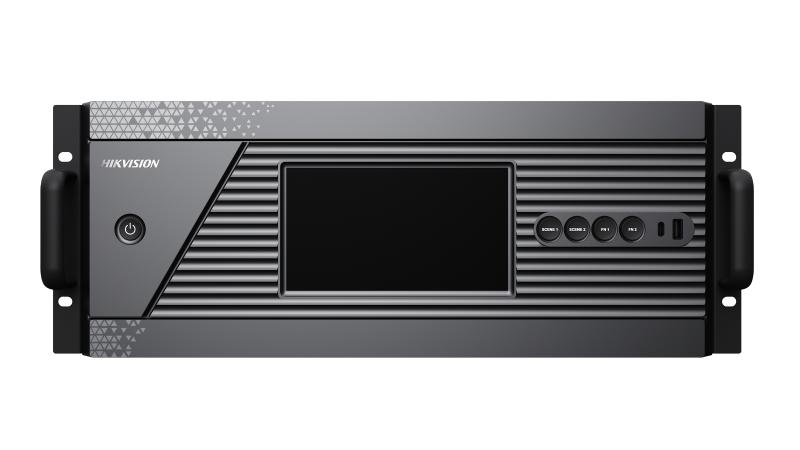

Screen Type

7 inch, 1024 × 600, full-color touch LCD panel

Power Interface

100 VAC to 240 VAC, 50/60 Hz

Device Power Consumption

550 W

Control Network Port

1 × 1000 Mbps Ethernet port (RJ-45)

Transmission Protocol

SDK, RTSP, ONVIF

Video Walls

8

Split Window

Supported(1/4/9/16)

Input Source Copy Capability

1) 4-channel 2K input board: supports 8 outputs to video wall (1 input can be replicated to 8 outputs). 2) 2-channel 4K input board: At 30Hz: supports 3 outputs to video wall (1 input can be replicated to 3 outputs). At 60Hz: supports 2 outputs to video wall (1 input can be replicated to 2 outputs). 3) SDI input board: supports 5 outputs to video wall (1 input can be replicated to 5 outputs).

Layers

Output board: 16 layers per port LED controller board: 16 layers per board

Display Video Wall Image

Supported with the installation of preview board

Scenes

128

Scene Auto-Switch Delay

300 ms

Plans

64 in total, 8 per video wall

Live View Resolution

16-channel D1, 32-channel CIF

UHD Fusions

Supported (up to 16 channels)

Background Image

Supported, 3 × 2K background images, JPG/JPEG

Subtitles

24 in total, 3 per video wall, 2 per port. Each subtitle supports up to 512 characters.

Input Image Clipping

Supported (up to 200 pixels on each side)

Local Signal Source Decoding Delay

50 ms

Network Signal Source Decoding Delay

300 ms

Window Division

1/4/6/8/9/16

Working Humidity

10% RH to 90% RH, no condensation

Working Temperature

0℃ to 50℃(0℉ to 122℉)

Net Weight

16.28 kg(35.89 lb), full configuration, chassis 10.28 kg(22.67 lb), each sub-board 0.5 kg(1.1 lb)

Gross Weight

19.28 kg(42.51 lb), full configuration, chassis 10.28 kg(22.67 lb), each sub-board 0.5 kg(1.1 lb)

Dimensions (W × H × D)

442 mm × 177 mm × 385 mm (17.40 inch × 6.97 inch × 15.16 inch)

Packing List

1 × AC power cord, 1 ×regulatory compliance and safety information manual

Button

1 × power button, 2 × scene switch button, 2 × custom scene switch button

Serial Interface

RS-232/485

Device Decoding Capability

48 channels of 1080p 30 fps,(requires decoding boards; maximum of 2 per device)

Device Splicing Capability

24 channels

Genlock Interface

1 input port + 1 loop-through output port
