Hikvision

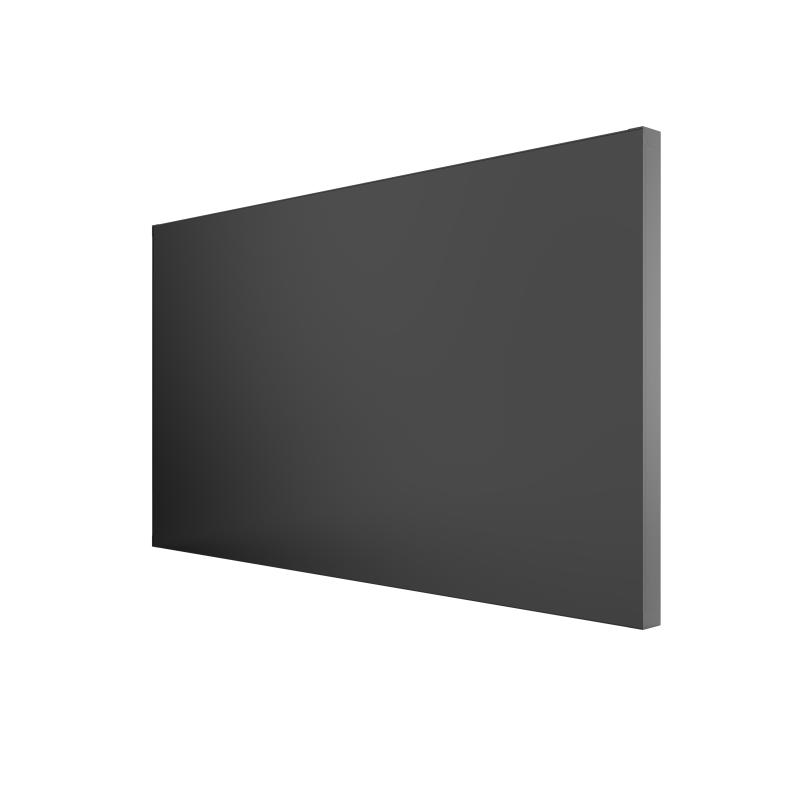

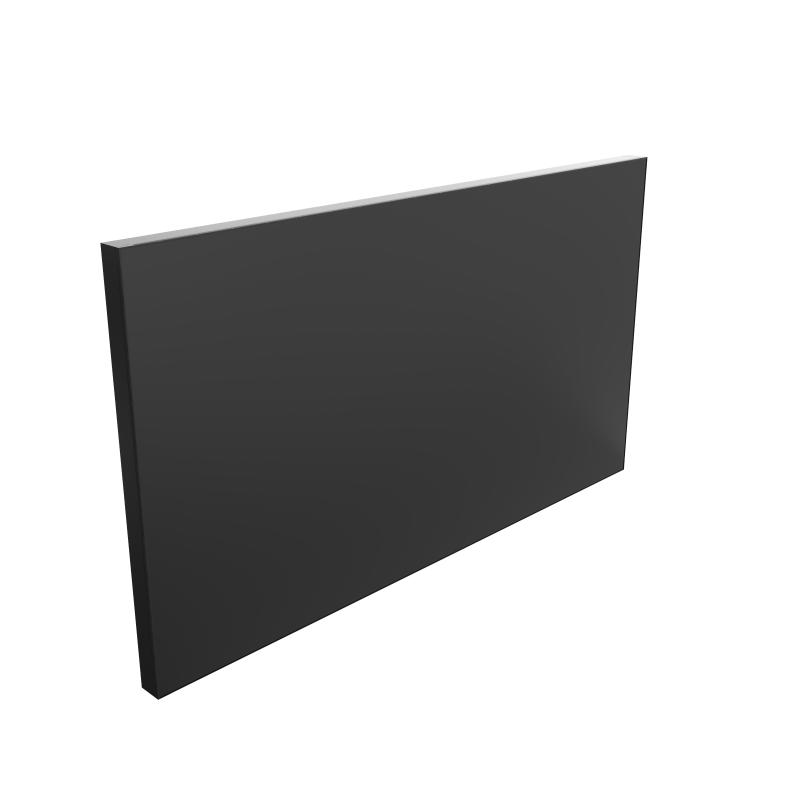

מסך קיר וידאו LCD 46"
DS-D2046TL-2B
46", 500 nits, 2.5 mm
4K signal input, auto loop up to 30 screens with HDMI interfaces; Switching between three picture modes: Monitoring, Meeting, and Movie; Factory calibration for color and brightness uniformity; Direct-lit LED backlight with uniform brightness; 1920 × 1080 resolution, 178° viewing angle; Ultra-narrow 2.5 mm bezel design; Anti-glare, high definition, high brightness, high color gamut, and vivid images with rich colors; Stable and 24-hour continuous working; Metal casing for preventing from radiation and magnetic & electric field interference; Wall-mount and modular brackets available to meet various installation requirements
מפרט טכני
- סדרה
- LCD Video Wall
- Screen Size
- 46 inch, 116.84 cm
- Active Display Area
- 1018.08 (H) mm × 572.67 (V) mm, 58.30 dm²
- Color Temperature
- 10,000 ± 1,000K
- Backlight
- Direct-lit LED backlight
- Physical Seam
- 2.5 mm
- Physical Seam Tolerance
- ±0.8 mm
- Surface Treatment
- Haze 25%
- Pixel Pitch
- 0.53 mm
- Brightness
- 500 cd/m²
- Physical Resolution
- 1920 × 1080
- Viewing Angle
- Horizontal 178°, vertical 178°
- Color Depth
- 8 bit, 16.7 M
- Contrast Ratio
- 1200:1
- Response Time
- 8.5ms
- Color Gamut
- 72% NTSC
- Video & Audio Input
- VGA × 1, HDMI × 1, DVI × 1, DP × 1, USB × 1
- Video & Audio Output
- HDMI × 1
- Control Interface
- RS232 IN × 1, RS232 OUT × 1
- LCD Technology
- VA
- Power Supply
- 100-240 VAC, 50/60 Hz
- Power Consumption
- ≤ 200 W
- Standby Consumption
- ≤ 0.5 W
- Working Temperature
- 0°C to 40°C (32°F to 104°F)
- Working Humidity
- 20% to 80% RH (non-condensing)
- Storage Temperature
- -20°C to 60°C (-4°F to 140°F)
- Storage Humidity
- 10% to 90% RH (non-condensing)
- Standby Time
- 600 s
- Casing Material
- Metal

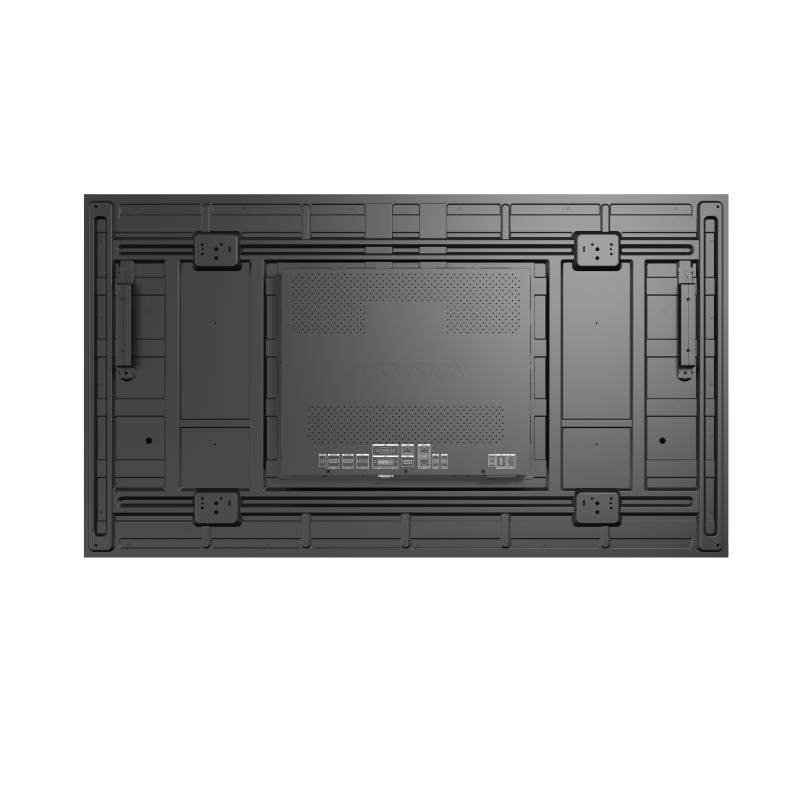

- VESA
- 600 (H) mm × 400 (V) mm
- Product Dimension (W × H × D)
- 1020.91 mm × 575.44 mm × 47.95 mm (40.19'' × 22.66'' ×1.89'')
- Package Dimension (W × H × D)
- 1159 (W) mm × 725 (H) mm ×310 (D) mm (45.63'' × 28.54'' × 12.20'')
- Net Weight
- 10.5 ± 0.5 kg (23.1 ± 1.1 lb) for single display
- Gross Weight
- 15.0 ± 0.5 kg (33.1 ± 1.1 lb) for carton with a single display
- Packing List
- Carton with a single display : LCD display × 1, power cable × 1, network cable × 1, 2-meter HDMI cable × 1, screw × 4, remote control × 1, IR receiver × 1, quick start guide (multilingual) × 1, quick start guide (English) × 1, LCD Maintenance Notice × 1
