Hikvision
מסך LED פנים DS-D4007BW-2FB
DS-D4007BW-2FB

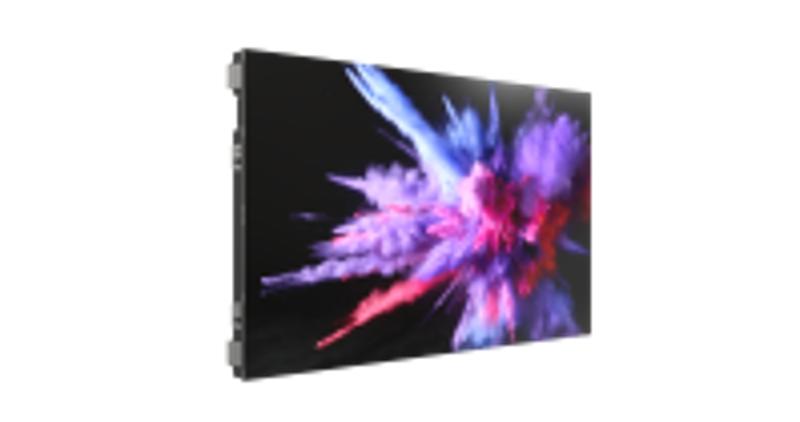

DS-D4007BW-2FB 300*168.75mm LED Module של Hikvision — דגם DS-D4007BW-2FB.
DS-D4007BW-2FB 300*168.75mm LED Module
מפרט טכני
- Product Model
- DS-D4007BW-2FB/A
- Product Type
- Fine Pixel Pitch Indoor Full-color LED Display
- Pixel Configuration
- Flip-chip COB
- Pixel Pitch
- 0.78mm
- Pixel Pitch Category
- P0.7
- Pixel Density
- 1638400 dots/㎡
- Modules Component
- 2 × 2
- Dimensions (W × H × D)
- 600 (W) × 337.5 (H) × 29.3(D) mm ；
- Resolution
- 768*432
- Area
- 0.2025 ㎡
- Cabinet Material
- Aluminium die casting
- Maintenance Method
- Front maintenance for all components
- Module Resolution
- 384*216
- White Balance Brightness
- 600 cd/㎡
- Color Temperature
- 1700 K to 15000 K adjustable
- Viewing Angle
- 160°(H)/160°(V)
- Contrast Ratio
- 10000:1
- Color Uniformity
- ≤ ± 0.003Cx，Cy
- Brightness Uniformity
- ≥ 97％
- Driving Method
- Constant current driving
- Frame Frequency
- 60 Hz
- Refresh Rate
- 3840 Hz
- Grey Level
- 18 bit
- Max. Consumption
- ≤420 W/㎡ （600nits）
- Average Consumption
- ≤140W/㎡
- Input Voltage
- 100 to 240 VAC ± 10％
- Working Temperature
- -10 ℃ to 40 ℃ (14 ℉ to 104 ℉)
- Working Humidity
- 10% to 90% RH (without condensation)
- Storage Temperature
- -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
- Storage Humidity
- 10% to 90% RH (without condensation)
- Packing List
- Regulatory Compliance and Safety Information × 1 Connecting screws, driver IC, iron sheets
- Modular Bracket
- standard bracket:DP-D40XXCB22-1X1-Q0.3-NW-Q0.3-HC 1*1;DP-D40XXCB22-2X2-Q0.8-NW-Q0.8-HC 2*2,ultra-thin bracket:DP-D40XXCB22-1X1-Q0.2-NW-Q0.2-ZF
בקשת הצעת מחיר עבור מסך LED פנים DS-D4007BW-2FB
השאירו פרטים ונחזור עם מחיר, זמינות מלאי וזמני אספקה.
