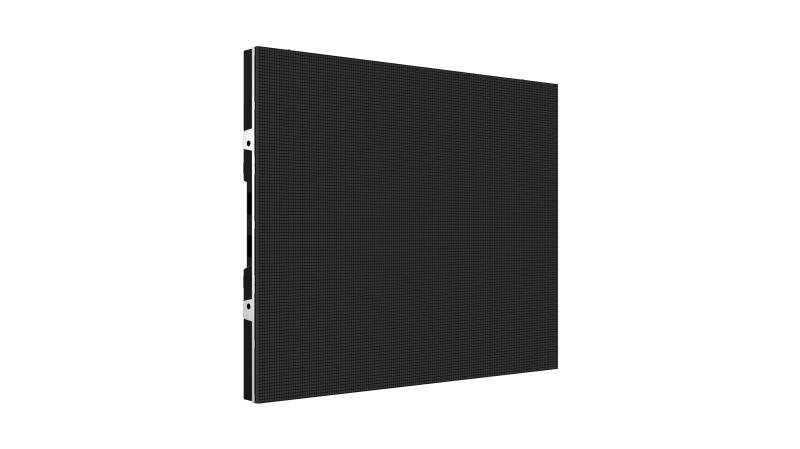

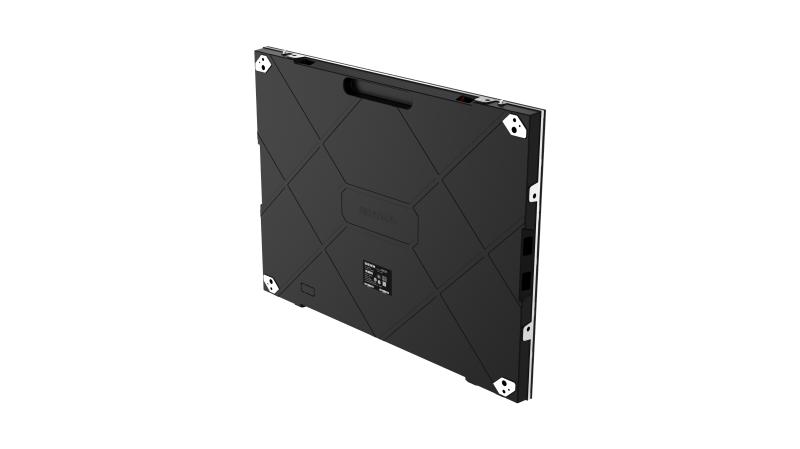

מסך LED פנים DS-D4012CS-2F

מפרט טכני

Product Model

DS-D4012CS-2F

Product Type

Indoor small pitch full color LED

Pixel Configuration

SMD Triad LED

Pixel Pitch

1.25mm

Pixel Pitch Category

P1.2

Pixel Density

640000 dots/m²

Modules Component

2 × 3

Dimensions (W × H × D)

640 (W) mm × 480 (H) mm ×36 (D) mm (25.197'' × 1.898'' × 1.42'')

Resolution

512 × 384

Area

0.3072 ㎡

Cabinet Material

Die cast aluminum

Maintenance Method

Complete front maintenance

Dimension (W × H × D)

320×160mm

Module Resolution

256 × 128

White Balance Brightness

600 cd/㎡

Color Temperature

3000-10000 K adjustable

Viewing Angle

160°(H)/160°(V)

Contrast Ratio

5000:1

Color Uniformity

≤ ± 0.003Cx，Cy

Brightness Uniformity

≥ 97％

Driving Method

Constant current driving

Frame Frequency

60 Hz

Refresh Rate

3840 Hz

Grey Level

Up to 16 bit

Max. Consumption

450W/㎡

Average Consumption

150W/㎡

Input Voltage

100~240 VAC ± 10％

Working Temperature

-10 ℃ to 40 ℃ (14 ℉ to 104 ℉)

Working Humidity

10% to 60% RH (without condensation)

Storage Temperature

-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)

Storage Humidity

10% to 85% RH (without condensation)

Package Dimension (W × H × D)

758 (W) mm × 606 (H) mm × 606 (D) mm (29.843 '' × 23.858 '' × 17.402 '')

Packing List

Regulatory Compliance and Safety Information × 1 Several Joint pieces,Fixing screws and Signal cables Several LED lamp beads and IC components

Gross Weight

7 kg (15.4 lb.)

Net Weight

6 kg (13.23 lb.)

Modular Bracket

DP-D40XXCA23-1X1-Q0.3-NW-Q0.3-HC 1*1;DP-D40XXCA23-2X2-Q1-NW-Q1-HC 2*2
