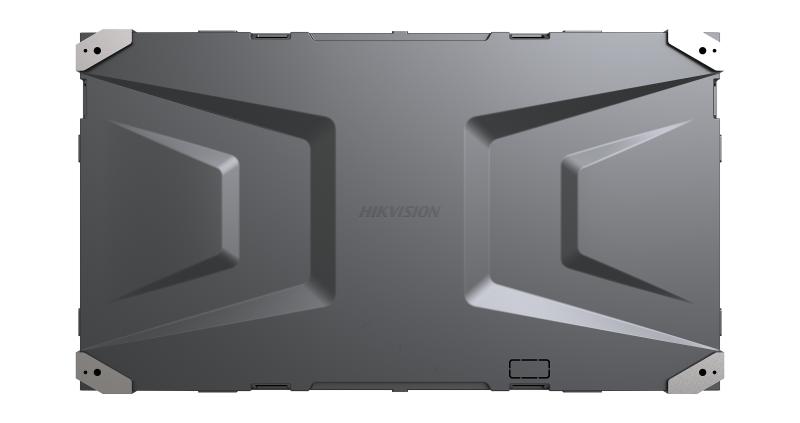

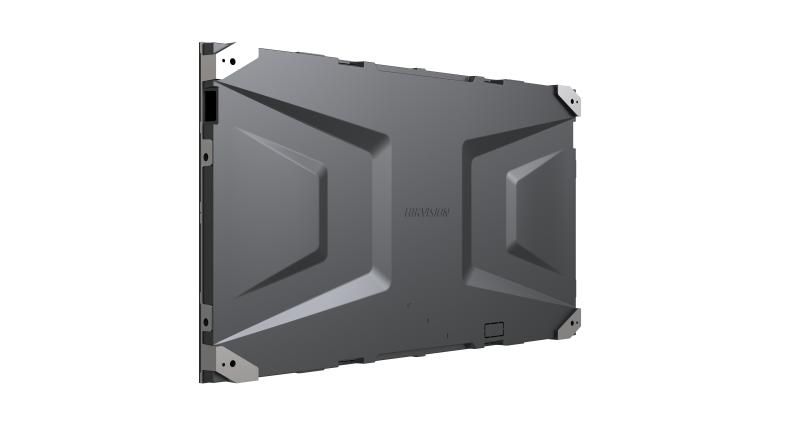

מסך LED פנים P1.5 DS-D4015AW-2FQ

מפרט טכני

Product Model

DS-D4015AW-2FQ

Product Type

Small Pixel Pitch Indoor Full-color LED Display

Pixel Configuration

Regular Chip MIP

Pixel Pitch

1.5625 mm

Pixel Pitch Category

P1.5

Pixel Density

409600 dots/㎡

Modules Component

2 × 2

Dimensions (W × H × D)

600 mm × 337.5 mm × 29.5 mm (23.622" × 13.287" × 1.161")

Resolution

384 × 216

Area

0.2025 ㎡

Cabinet Material

Aluminium die casting

Maintenance Method

Front maintenance for all components

Dimensions

300 × 168.75 mm

Module Resolution

192× 108

White Balance Brightness

600 cd/㎡

Color Temperature

3000-10000 K adjustable

Viewing Angle

160°(H)/160°(V)

Contrast Ratio

10000:1

Color Uniformity

≤ ± 0.003Cx，Cy

Brightness Uniformity

≥ 97％

Driving Method

Constant current driving

Frame Frequency

60 Hz

Refresh Rate

3840 Hz

Grey Level

16 bit

Max. Consumption

≤ 278 W/㎡ （600 nits）

Average Consumption

≤ 93 W/㎡

Input Voltage

100~240 VAC ± 10％

Working Temperature

-10 ℃ to 40 ℃ (14 ℉ to 104 ℉)

Working Humidity

10% to 60% RH (without condensation)

Storage Temperature

-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)

Storage Humidity

10% to 85% RH (without condensation)

Package Dimensions (W × H × D)

Module: 4-in-1(443X360X52mm) Structure: 5-in-1(708X393X433mm)

Packing List

Regulatory Compliance and Safety Information × 1 Connecting screws, light beads, driver IC, iron sheets

G.W.

4.5 kg（1 package in 1 box）

Net Weight

3.4 kg

Modular Bracket

standard bracket:DP-D40XXCB22-1X1-Q0.3-NW-Q0.3-HC 1*1;DP-D40XXCB22-2X2-Q0.8-NW-Q0.8-HC 2*2,ultra-thin bracket:DP-D40XXCB22-1X1-Q0.2-NW-Q0.2-ZF
