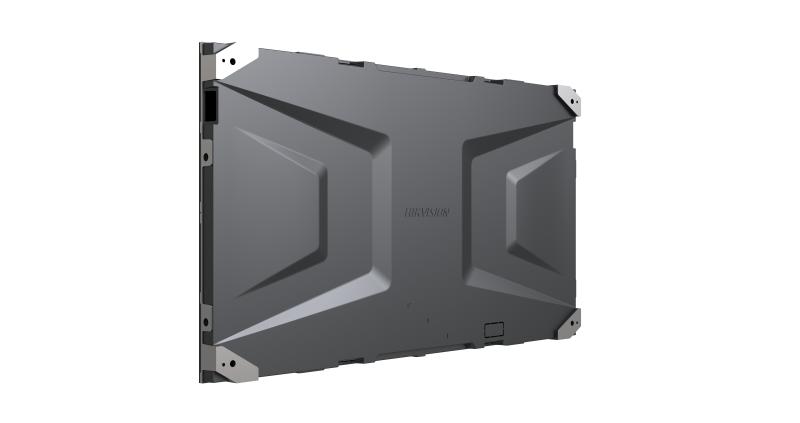

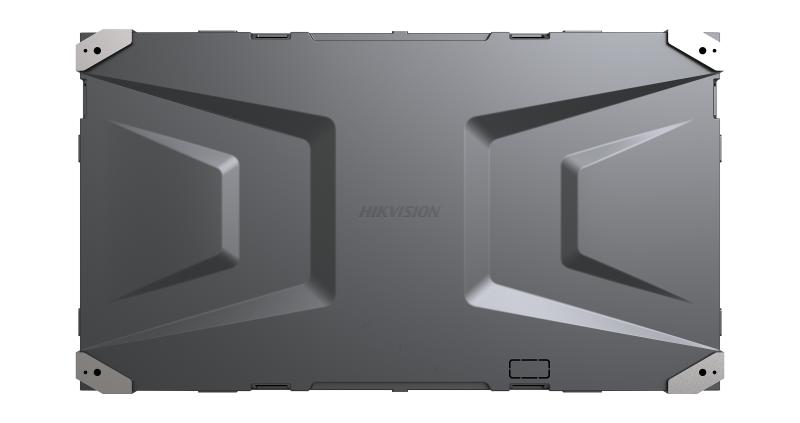

מסך LED פנים P1.5 DS-D4015CW-2FQ

מפרט טכני

Product Model

DS-D4015CW-2FQ/A

Product Type

Small Pixel Pitch Indoor Full-color LED Display

Pixel Configuration

SMD Triad LED (with glue)

Pixel Pitch Category

P1.5

Pixel Pitch

1.5625 mm

Pixel Density

409600 dots/㎡

Modules Component

2 × 2

Dimensions (W × H × D)

600 mm × 337.5 mm × 29.5 mm (23.622" × 13.287" × 1.161")

Resolution

384 × 216

Area

0.2025 ㎡

Cabinet Material

Aluminium die casting

Maintenance Method

Front maintenance for all components

Module Resolution

192 × 108

White Balance Brightness

600cd/㎡

Color Temperature

3000-10000 K adjustable

Viewing Angle

160°(H)/160°(V)

Contrast Ratio

5000:1

Color Uniformity

≤ ± 0.003Cx，Cy

Brightness Uniformity

≥ 97％

Driving Method

Constant current driving

Frame Frequency

60 Hz

Refresh Rate

Up to 3840 Hz

Grey Level

Up to 16 bit

Max. Consumption

≤ 390 W/㎡

Average Consumption

＜ 130 W/㎡

Input Voltage

100~240 VAC ± 10％

Working Temperature

10 °C to 40 °C (14 °F to 104 °F)

Working Humidity

10% RH to60% RH (without condensation)

Storage Temperature

-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)

Storage Humidity

10% RH to85% RH (without condensation)

Product Dimension (W × H × D)

Module: 4-in-1(443X360X52 mm)，20-in-1 (471X378X266 mm)

Packing List

Regulatory Compliance and Safety Information × 1 Connecting screws, light beads, driver IC, iron sheets

Gross Weight

Module: 4-in-1 (1.744 kg), 20-in-1 (8.72 kg)； Structure: 1-in-1 (2.8 kg)，5-in-1 (14 kg)

Net Weight

Module: 4-in-1 (1.224 kg), 20-in-1 (6.120 kg) Structure: 1-in-1 (2.6 kg)，5-in-1 (13 kg)

Modular Bracket

standard bracket:DP-D40XXCB22-1X1-Q0.3-NW-Q0.3-HC 1*1;DP-D40XXCB22-2X2-Q0.8-NW-Q0.8-HC 2*2,ultra-thin bracket:DP-D40XXCB22-1X1-Q0.2-NW-Q0.2-ZF
