מסך LED פנים DS-D40CE11-2F(Q)

מפרט טכני

Product Type

LED Display Structure

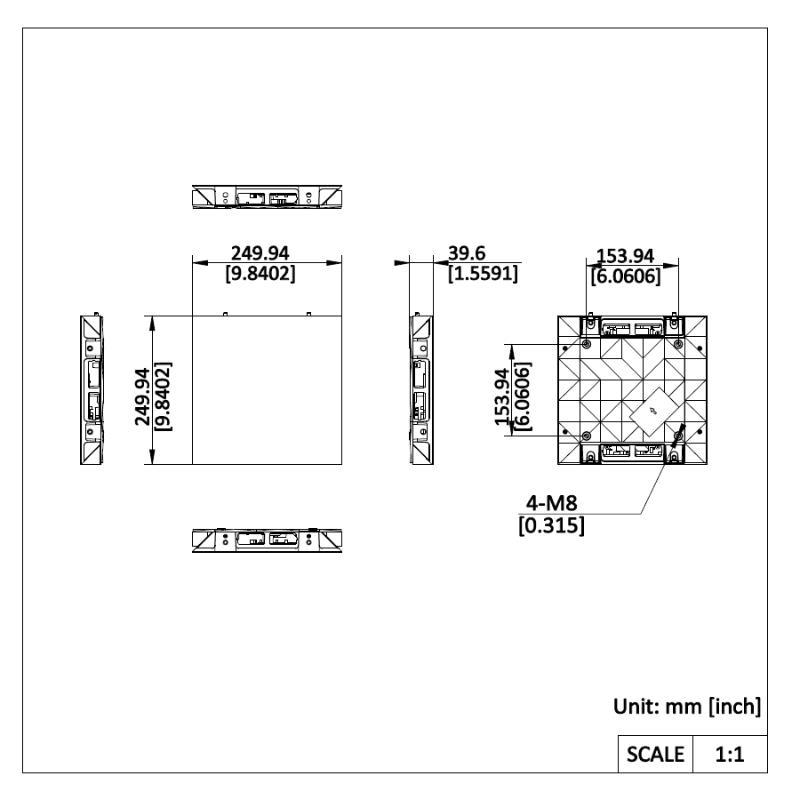

Dimensions (W × H × D)

250 mm × 250 mm × 50 mm (9.843" × 9.843" × 1.969")

Area

0.0625 m²

Cabinet Material

Aluminium die casting

Display Color

281 trillion

Input Voltage

110~220 VAC ± 15%

Working Temperature

-20 ℃ to + 45 ℃ (-4 ℉ to + 113 ℉)

Working Humidity

10%~90%RH (No condensation)

Storage Humidity

10%~90%RH (No condensation)

Storage Temperature

-40 ℃ to +60 ℃ (-40 ℉ to +140 ℉)

Package Dimension (W × H × D)

334 mm × 314 mm × 95 mm (13.15" × 12.35\" × 3.74\") (Carton，1 cabinet in 1 box) 692 mm × 505 mm × 340 mm (27.24 × 19.88\" × 13.39\") (Carton，10 cabinets in 1 box)"

Packing List

Regulatory Compliance and Safety Information × 1 Connecting screws, light beads, driver IC, iron sheets

Net Weight

0.880 kg (1.94 lb)

Gross Weight

4.285KG
