מסך LED פנים DS-D40CE13-2F(Q)

מפרט טכני

Product Type

LED Display Structure

Modules Component

1 × 3

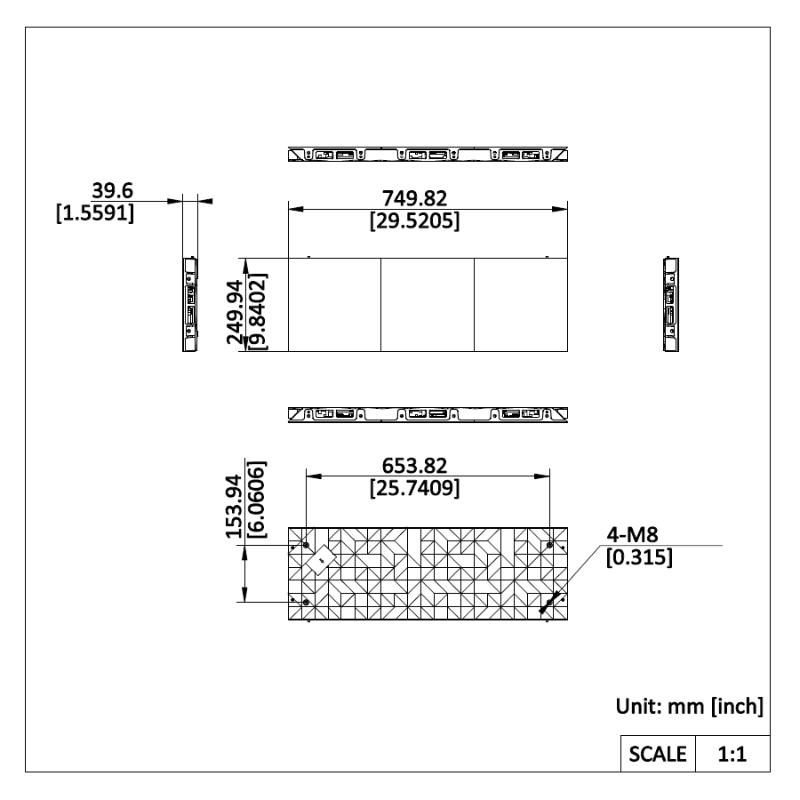

Dimensions (W × H × D)

750 mm × 250 mm × 50 mm (29.528" × 9.843" × 1.969")

Area

0.1875 m²

Cabinet Material

Aluminium die casting

Maintenance Method

Front maintenance for all components

Input Voltage

110~220 VAC ± 15%

Working Temperature

-20 ℃ to + 45 ℃ (-4 ℉ to + 113 ℉)

Working Humidity

10%~90%RH

Storage Humidity

10%~90%RH

Storage Temperature

-40 ℃ to +60 ℃ (-40 ℉ to +140 ℉)

Package Dimension (W × H × D)

844 mm × 324 mm × 95 mm (33.23" × 12.76\" × 3.74\") (Carton，1 cabinet in 1 box) 860 mm × 505 mm × 350 mm (33.86 × 19.88\" × 13.78\") (Carton，5 cabinets in 1 box)"

Packing List

Regulatory Compliance and Safety Information × 1 Connecting screws, light beads, driver IC, iron sheets

Net Weight

2.635 kg (5.81 lb)

Gross Weight

4.89KG
