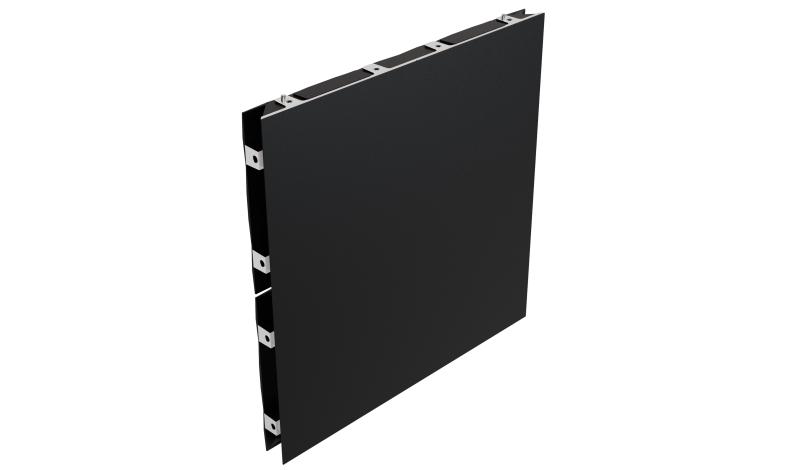

מסך LED פנים DS-D40CE22-2F(Q)

מפרט טכני

Product Type

LED Display Structure

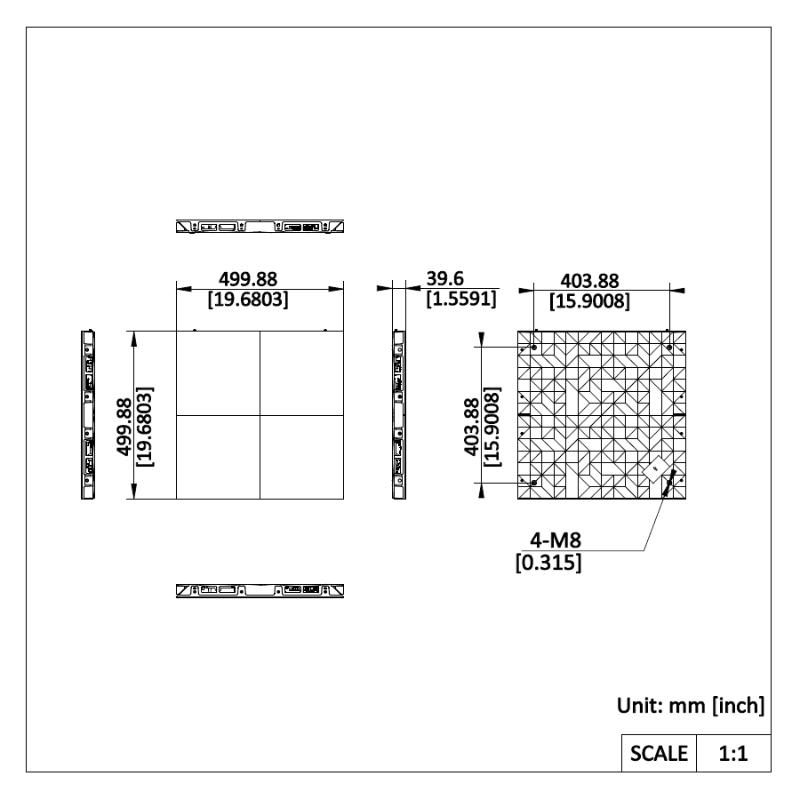

Dimensions (W × H × D)

500 mm × 500 mm × 50 mm (19.685" × 19.685" × 1.969")

Area

0.25 m²

Cabinet Material

Aluminum die casting

Maintenance Method

Front maintenance for all components

Input Voltage

110~220 VAC ± 15%

Working Temperature

-20 ℃ to + 45 ℃ (-4 ℉ to + 113 ℉)

Working Humidity

10%~90%RH

Storage Humidity

10%~90%RH

Storage Temperature

-40 ℃ to +60 ℃ (-40 ℉ to +140 ℉)

Package Dimension (W × H × D)

594 mm × 574 mm ×95 mm (23.39" ×22.6\" × 3.74\") (Carton，1 cabinet in 1 box) 610 mm × 505 mm ×600 mm (24.02 × 19.88\" × 23.62\") (Carton，5 cabinets in 1 box)"

Packing List

Regulatory Compliance and Safety Information × 1 Connecting screws, light beads, driver IC, iron sheets

Net Weight

3.245 kg (7.18 lb)

Gross Weight

2.11KG
