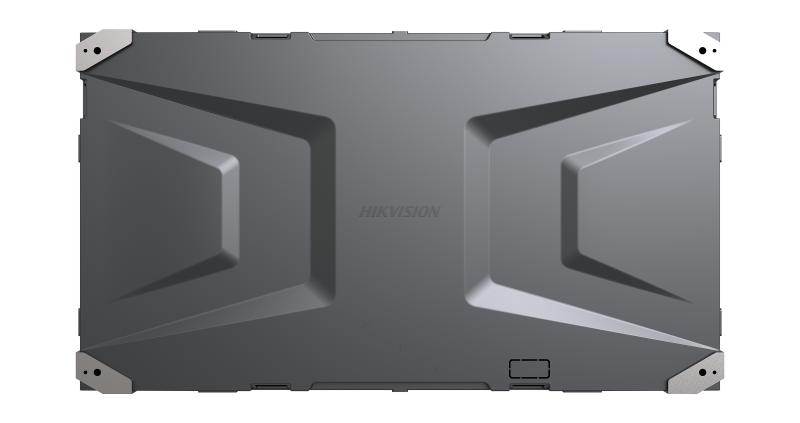

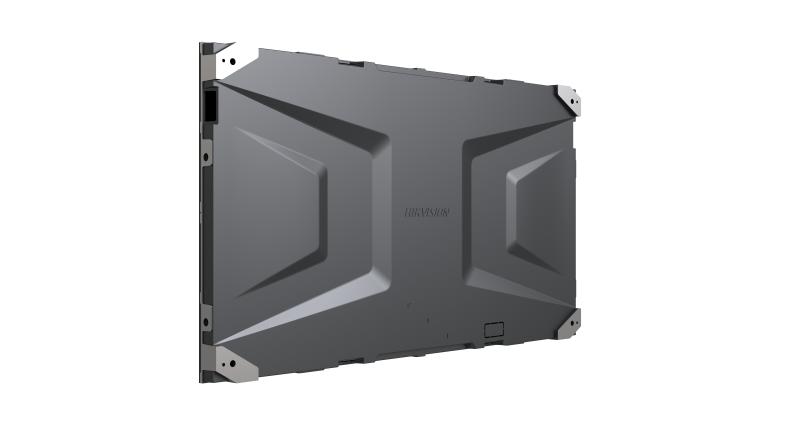

מסך LED פנים DS-D40W-2F

מפרט טכני

Product Model

DS-D40W-2F

Product Type

LED Display Structure

Dimensions (W × H × D)

600（W）×337.5（H）×29.5（D） mm (23.622" × 13.287" × 1.161")

Area

0.2025 ㎡

Cabinet Material

Aluminium die casting

Maintenance Method

Front maintenance for all components

Input Voltage

100~240 VAC ± 10％

Working Temperature

-10 ℃ to 40 ℃ (14 ℉ to 104 ℉)

Working Humidity

10% to 60% RH (without condensation)

Storage Temperature

-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)

Storage Humidity

10% to 85% RH (without condensation)

Package Dimensions (W × H × D)

1-in-1：687X405X74mm; 5-in-1：708X393X433mm

Packing List

Regulatory Compliance and Safety Information × 1 Connecting screws, light beads, driver IC, iron sheets

G.W.

4.5 kg（1 package in 1 box）

Net Weight

3.4 kg

Modular Bracket

DS-DL116033W 1*1;DS-DL126033W 1*2;DS-DL226033W 2*2
