Hikvision

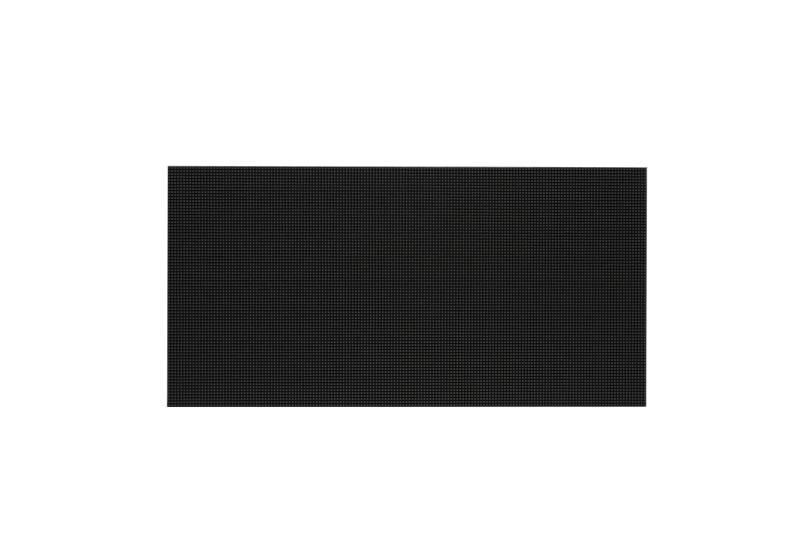

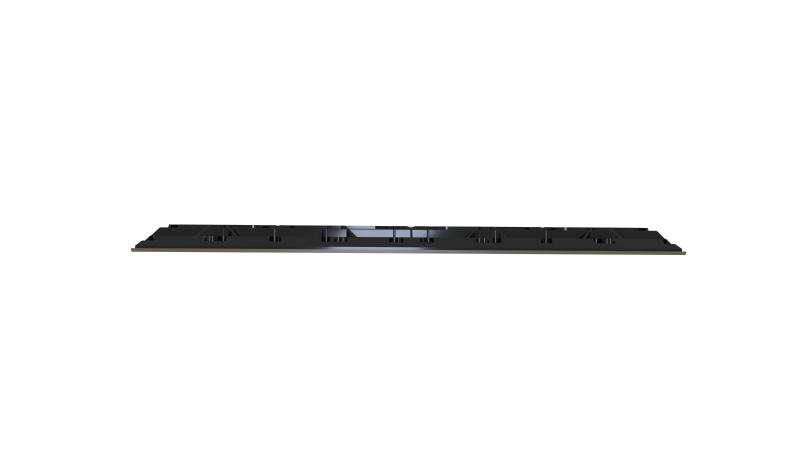

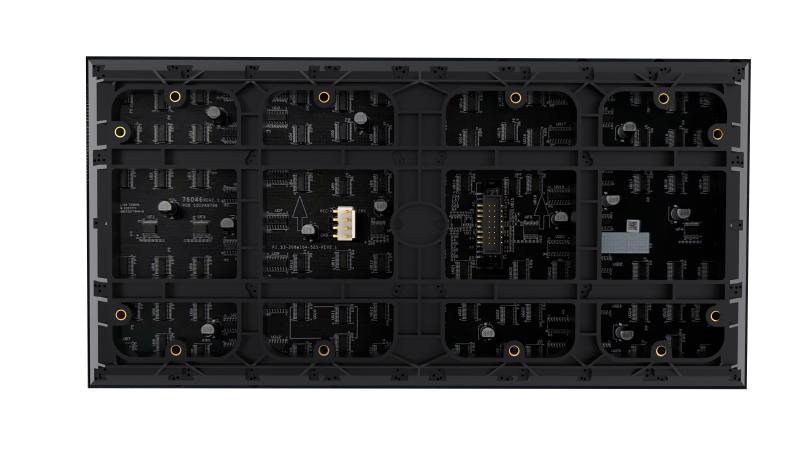

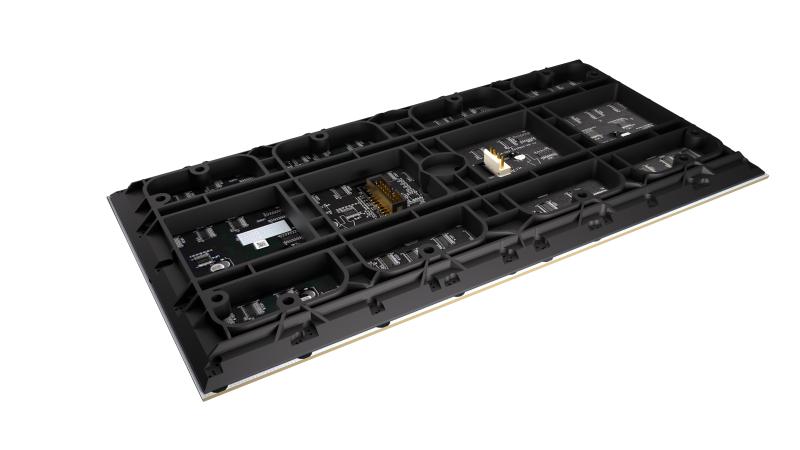

מודול LED DS-D41Q15CA-1PHT
DS-D41Q15CA-1PHT
DS-D41Q15CA-1PHT，1.538mm，edge-cut של Hikvision — דגם DS-D41Q15CA-1PHT.
DS-D41Q15CA-1PHT，1.538mm，edge-cut
מפרט טכני
- Product Model
- DS-D41Q15CA-1PHT
- Pixel Configuration
- SMD Triad LED
- Pixel Pitch Category
- P1.5
- Pixel Pitch
- 1.538 mm
- Lamp Bead Dimensions
- 1212
- Dimensions (W × H × D)
- 320 mm × 160 mm × 16.6 mm(12.6'' × 6.3'' × 0.65'')
- Resolution
- 208 × 104
- Pixel Density
- 422500
- Signal Source Interface
- HUB75E
- White Balance Brightness
- 550cd/㎡
- Color Temperature
- 3000—10000K adjustable
- Viewing Angle
- 160°(H)/160°(V)
- Brightness Uniformity
- ≥97%
- Color Uniformity
- ≤ ± 0.003Cx，Cy
- Contrast Ratio
- 3000:1
- Refresh Rate
- 3840 Hz
- Scanning Amount
- 52
- Grey Level
- Up to 16 bit
- Max. Consumption
- ≤ 600 W/㎡
- Average Consumption
- ＜ 290 W/㎡
- Input Voltage
- DC：4.5~5V
- Working Temperature
- -10 ℃ to 40 ℃ (14 ℉ to 104 ℉)
- Working Humidity
- 10% to 80% RH (without condensation)
- Storage Temperature
- -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
- Storage Humidity
- 10% to 85% RH (without condensation)
- Package Dimensions (W × H × D)
- 673 (W) mm × 453 (H) mm × 390 (D) mm(26.496" × 17.834" × 15.354")（40 pcs in 1 box）
- Packing List
- Several LED lamp beads and IC components Several signal cables and power cables
- Gross Weight
- 0.55 kg(1.21 lb)
- Net Weight
- 0.48 kg(1.06 lb)
