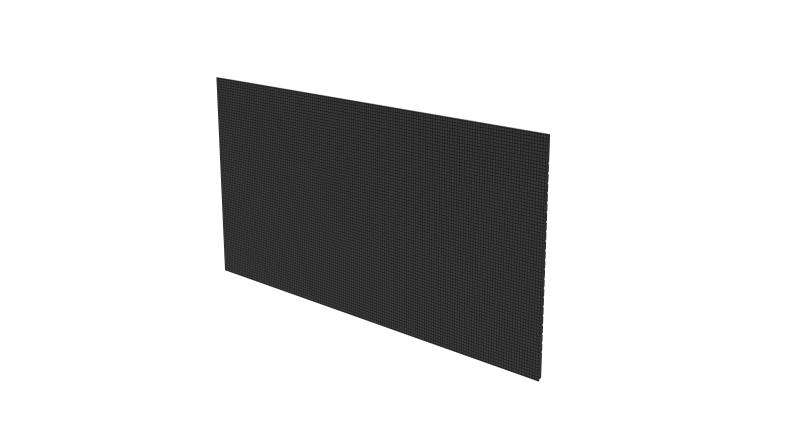

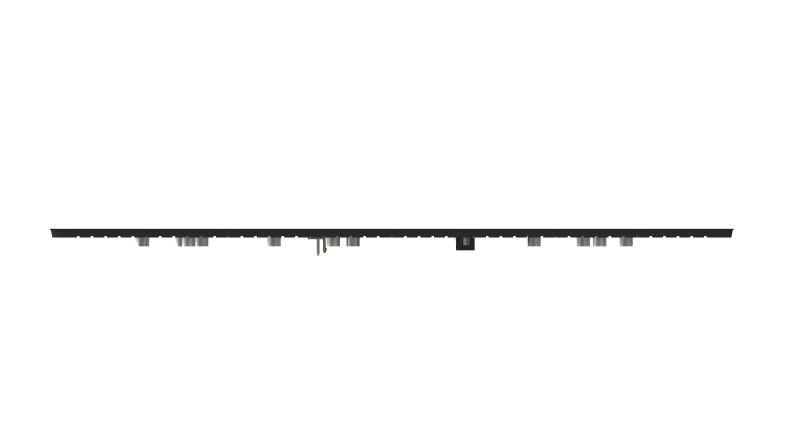

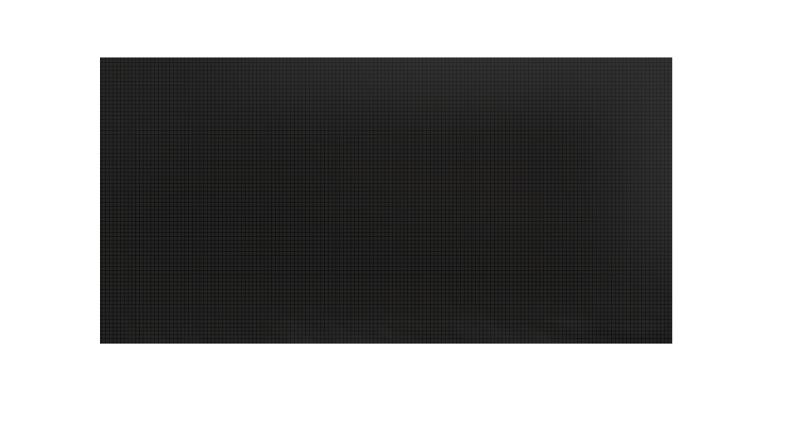

מודול LED DS-D41Q18CA-1GS

מפרט טכני

Product Model

DS-D41Q18CA-1GS

Pixel Configuration

SMD Triad LED

Pixel Pitch Category

P1.8

Pixel Pitch

1.86

Lamp Bead Dimensions

1515

Dimensions (W × H × D)

320 mm × 160 mm × 13 mm (12.60" × 6.30" × 0.51") (connectors contained)

Resolution

172 × 86

Pixel Density

288906 dot/m²

Maintenance Method

Front and Rear Maintenance

Signal Source Interface

HUB75E

Module Flatness

≤ 0.3 mm

Waterproof Level

IP30

Component Material

Silicon soft panel

Curvature

Out Arc & Inner Arc ≥ 157°

White Balance Brightness

600cd/㎡

Color Temperature

3000 K to 10000 K adjustable

Viewing Angle

160°(H)/160°(V)

Brightness Uniformity

≥ 97%

Color Uniformity

≤ ± 0.003Cx，Cy

Contrast Ratio

3000:1

Refresh Rate

3840 Hz

Optimal View Distance

2.4 m to 6.2 m

Blind Spot Rate

< 0.0003, 0 by default

Power Interface

VH4PIN

Driving Method

Constant current driving

Scanning Amount

43S

Frame Frequency

60 Hz

Grey Level

Up to 16 bit

Max. Consumption

450W/m²

Average Consumption

150W/m²

Input Voltage

AC 100 V to 240 V~

Working Voltage

DC 4.5 V to 5 V

Modular Max. Consumption

23 W

Modular Max. Current

5 A

Working Temperature

-10 ℃ to 40 ℃ (14 ℉ to 104 ℉)

Working Humidity

10% to 80% RH (without condensation)

Storage Temperature

-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)

Storage Humidity

10% to 85% RH (without condensation)

Package Dimensions (W × H × D)

634 (W) mm × 410 (H) mm × 380 (D) mm (24.96 '' × 16.14 '' × 14.96 '')

Packing Method

48 modules in 1 package

Packing List

Lamp beads, Driver IC, signal cables, 5 V power cables

Gross Weight

0.28 kg (0.62 lb)

Net Weight

0.22 kg (0.59 lb)

Min. Diameter

815 mm
