Hikvision

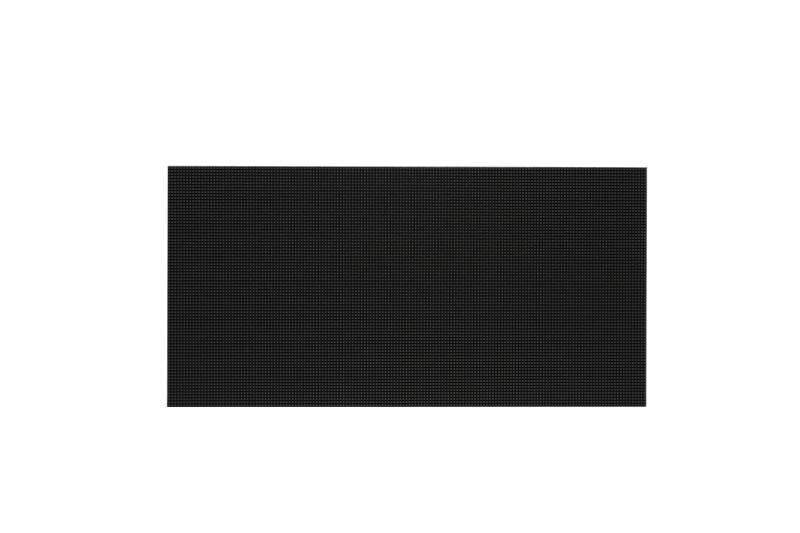

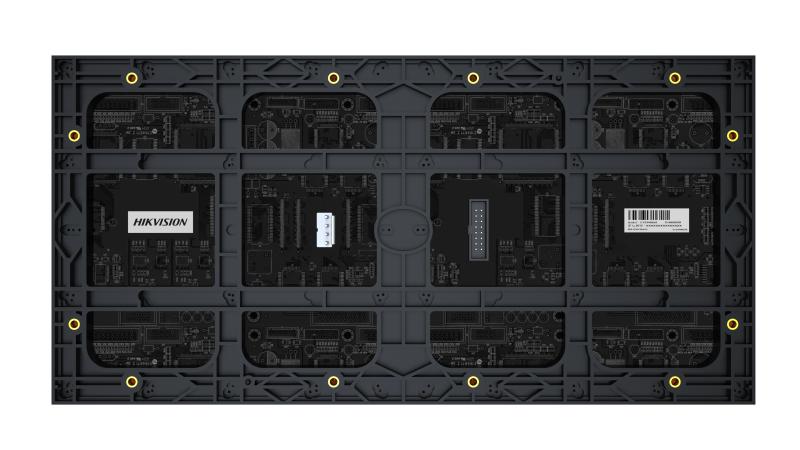

מודול LED DS-D41Q25CA-1PH
DS-D41Q25CA-1PH
DS-D41Q25CA-1PH,indoor,2.5mm,320*160mm,3840hz של Hikvision — דגם DS-D41Q25CA-1PH.
DS-D41Q25CA-1PH,indoor,2.5mm,320*160mm,3840hz
מפרט טכני
- Product Model
- DS-D41Q25CA-1PH V2
- Pixel Configuration
- SMD Triad LED
- Pixel Pitch Category
- P2.5
- Pixel Pitch
- 2.5 mm
- Lamp Bead Dimensions
- 2121

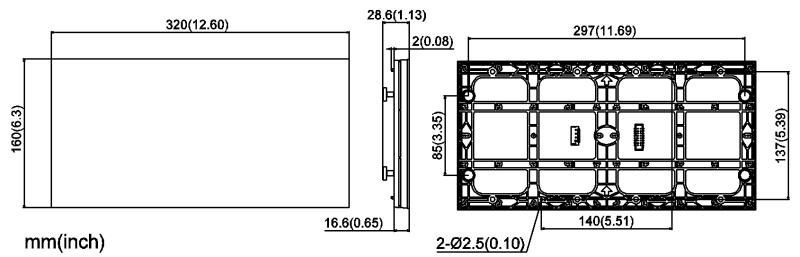

- Dimensions (W × H × D)
- 320 mm × 160 mm × 17 mm
- Resolution
- 128 × 64
- Pixel Density
- 160000
- Signal Source Interface
- HUB75E
- White Balance Brightness
- 600cd/㎡
- Color Temperature
- 3000—10000K adjustable
- Viewing Angle
- 160°(H)/160°(V)
- Brightness Uniformity
- ≥97%
- Color Uniformity
- ≤ ± 0.003Cx，Cy
- Contrast Ratio
- 3000:1
- Refresh Rate
- 3840 Hz
- Scanning Amount
- 32
- Grey Level
- Up to 16 bit
- Max. Consumption
- ≤ 420 W/㎡
- Average Consumption
- ＜ 180 W/㎡
- Input Voltage
- DC：4.5~5V
- Working Temperature
- -10 ℃ to 40 ℃ (14 ℉ to 104 ℉)
- Working Humidity
- 10% to 80% RH (without condensation)
- Storage Temperature
- -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
- Storage Humidity
- 10% to 85% RH (without condensation)
- Package Dimensions (W × H × D)
- 673 (W) mm × 453 (H) mm × 390 (D) mm（40 cabinets in 1 box）
- Packing List
- Several high magnetic brackets Several LED lamp beads and IC components Several signal cables and power cables
- Gross Weight
- 0.61 Kg
- Net Weight
- 0.48 Kg
