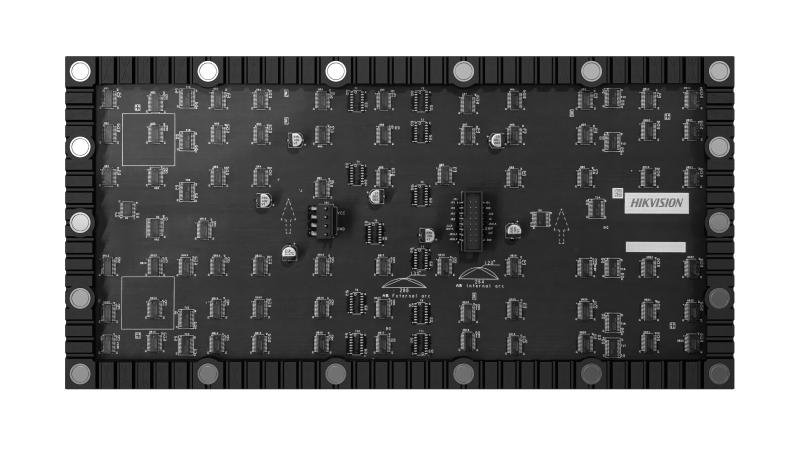

מודול LED DS-D41Q25CA-2GS

מפרט טכני

Product Model

DS-D41Q25CA-1GS

Pixel Configuration

SMD Triad LED

Pixel Pitch Category

P2.5

Pixel Pitch

2.5

Lamp Bead Dimensions

2121

Dimensions (W × H × D)

320 (W) mm × 160 (H) mm × 13.3 (D) mm (12.60" × 6.30" × 0.524") (connectors contained)

Resolution

128 × 64

Pixel Density

160000 dot/m²

Maintenance Method

Front and Rear Maintenance

Signal Source Interface

HUB75E

Module Flatness

≤ 0.3 mm

Waterproof Level

IP30

Component Material

Silicon soft panel

Curvature

Inner Arc ≥ 120°，Out Arc ≥ 135°

White Balance Brightness

500 cd/㎡

Color Temperature

3000 K to 10000 K adjustable

Viewing Angle

160°(H)/160°(V)

Brightness Uniformity

≥ 97%

Color Uniformity

≤ ± 0.003Cx，Cy

Contrast Ratio

3000:1

Refresh Rate

3840 Hz

Optimal View Distance

3.2 m to 8.4 m

Blind Spot Rate

< 0.0003, 0 by default

Power Interface

VH4PIN

Driving Method

Constant current driving

Scanning Amount

64S

Frame Frequency

60 Hz

Grey Level

Up to 16 bit

Max. Consumption

450W/m²

Average Consumption

150W/m²

Input Voltage

AC 200~240 V

Working Voltage

DC 4.5~5 V

Modular Max. Consumption

23 W

Modular Max. Current

5 A

Working Temperature

-10 ℃ to 40 ℃ (14 ℉ to 104 ℉)

Working Humidity

10% to 80% RH (without condensation)

Storage Temperature

-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)

Storage Humidity

10% to 85% RH (without condensation)

Package Dimensions (W × H × D)

652 (W) mm × 393 (H) mm × 380 (D) mm (25.67 '' × 15.47 '' × 14.96 '')

Packing Method

48 modules in 1 package

Packing List

Lamp beads, Driver IC, signal cables, 5 V power cables,Regulatory Compliance and Safety Information

Gross Weight

0.358 kg (0.789 lb)

Net Weight

0.264 kg (0.58 lb)

Min. Diameter

Inner Arc ≥ 304.8 mm，Out Arc ≥ 407.3 mm
