מסך LED חוץ DS-D4225CE-1AP/M

DS-D4225CE-1AP/M

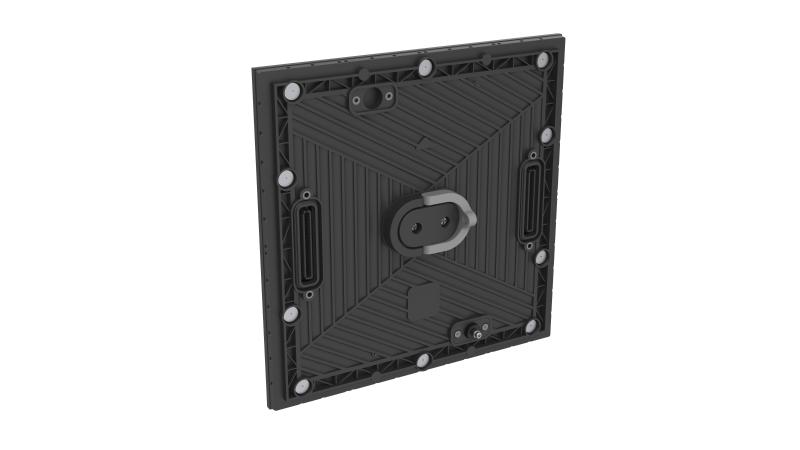

Module,2.5mm，250*250mm של Hikvision — דגם DS-D4225CE-1AP/M.

Module,2.5mm，250*250mm

שיתוף:

מפרט טכני

Product Type: Spare LED Module
Pixel Configuration: SMD Triad LED
Pixel Pitch Category: P2.5
Pixel Pitch: 2.5 mm
Resolution: 100 × 100
Pixel Density: 160000 dots/m²
Maintenance Method: Front and Rear maintenance
Lamp Board Housing: With housing
White Balance Brightness: 4500 nit (Factory preset brightness) 5000 nit (Peak)
Color Temperature: 9300K adjustable
Viewing Angle: Horizontal 160°, vertical 160°
Contrast Ratio: ≥ 6000:1
Color Uniformity: ≤ ± 0.003Cx，Cy
Brightness Uniformity: ≥ 97％
Frame Frequency: 50/60 Hz
Refresh Rate: 7680 Hz
Grey Level: 14 bit
Lamp Encapsulation: 1415
Control System: Hikvision
Working Temperature: -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉)
Working Humidity: 10% RH to 90% RH
Storage Humidity: 10% RH to 95% RH
Storage Temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
Package Dimension (W × H × D): 314 (W) mm × 55 (H) mm × 328 (D) mm (12.36'' × 2.17'' × 12.91'')
Gross Weight: 0.95 kg/1 in 1 (2.09 lb.)
