Hikvision
מסך LED חוץ DS-D4225CE22-1AP
DS-D4225CE22-1AP

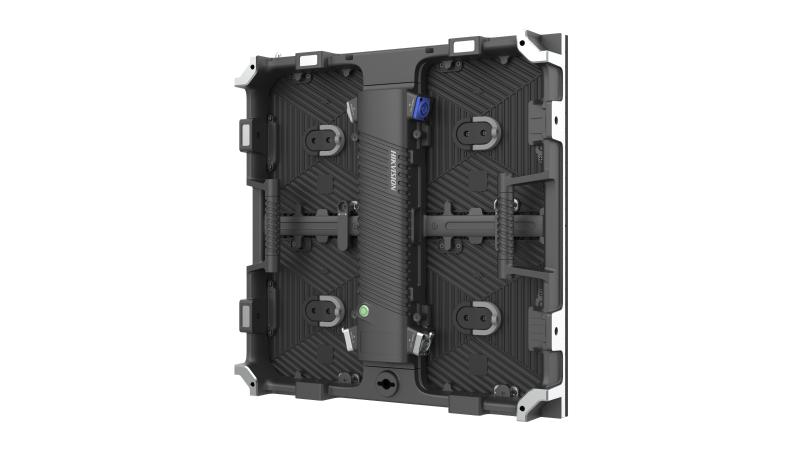

Die-cast aluminum cabinet, 2.5mm, 500*500mm של Hikvision — דגם DS-D4225CE22-1AP.
Die-cast aluminum cabinet, 2.5mm, 500*500mm
מפרט טכני
- Pixel Configuration
- SMD Triad LED
- Pixel Pitch Category
- P2.5
- Pixel Pitch
- 2.5 mm
- Modules Component
- 2 × 2
- Dimensions (W × H × D)
- 500 (W) mm × 500 (H) mm × 69 (D) mm (19.69'' × 19.69'' × 2.72'')
- Resolution
- 200 × 200
- Area
- 0.25 m²
- Pixel Density
- 160000 dots/m²
- Lamp Board Housing
- With housing
- Cabinet Material
- Aluminum
- Maintenance Method
- Front and Rear maintenance
- Protection Level
- IP66
- White Balance Brightness
- 4500 nit (Factory preset brightness) 5000 nit (Peak)
- Color Temperature
- 9300K adjustable
- Viewing Angle
- Horizontal 160°, vertical 160°
- Contrast Ratio
- ≥ 6000:1
- Color Uniformity
- ≤ ± 0.003Cx，Cy
- Brightness Uniformity
- ≥ 97％
- Driving Method
- Constant current driving
- Frame Frequency
- 50/60 Hz
- Refresh Rate
- 7680 Hz
- Grey Level
- 14 bit
- Lamp Encapsulation
- 1415
- Control System
- Hikvision
- Power Supply
- AC: 110 to 220 V ± 15%
- Max. Consumption
- ≤ 510 W/㎡（AC 220V） ≤ 530 W/㎡（AC 100V）
- Average Consumption
- ≤ 170 W/㎡（AC 220V） ≤ 177 W/㎡（AC 100V）
- Working Temperature
- -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉)
- Working Humidity
- 10% RH to 90% RH
- Storage Humidity
- 10% RH to 95% RH
- Storage Temperature
- -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
- Gross Weight
- 8.6 kg (18.96 lb.)
- Package Dimension (W × H × D)
- 642 (W) mm × 648 (H) mm × 157 (D) mm (25.28'' × 25.51'' × 6.18'')
