מסך LED חוץ P5.7 DS-D4257GO-2AAA

DS-D4257GO-2AAA

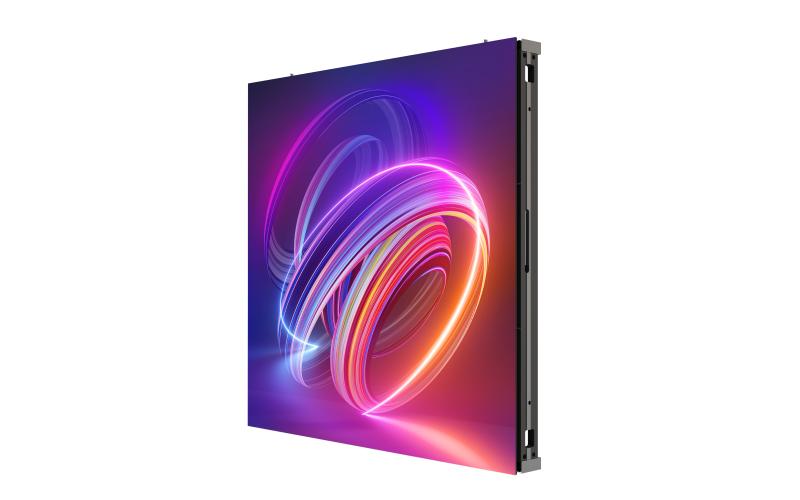

P5.7 Outdoor LED Display Unit של Hikvision — דגם DS-D4257GO-2AAA.

P5.7 Outdoor LED Display Unit

שיתוף:

מפרט טכני

Modules Component: 3 × 2
Resolution: 168 × 168
Pixel Configuration: SMD Triad LED
Pixel Pitch Category: P5.7
Pixel Pitch: 5.71 mm
Lamp Bead Dimensions: 2727

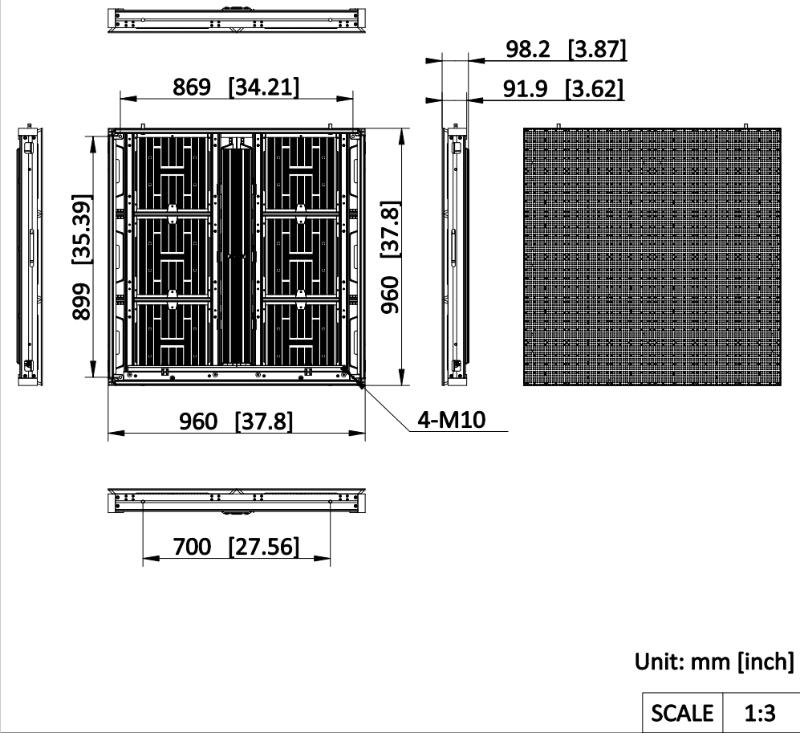

Dimensions (W × H × D): 960 mm × 960 mm × 100 mm (37.795'' × 37.795'' × 3.973'')
Area: 0.9216 m²
Pixel Density: 30625 dots/m²

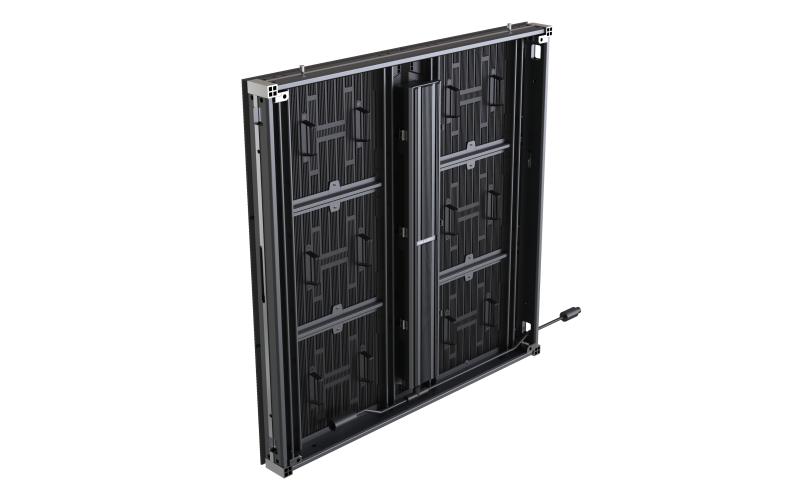

Maintenance Method: Front/Rear maintenance
Waterproof Level: IP66
Component Material: Aluminum Profile
White Balance Brightness: 9000 nit (Factory preset brightness) 10000 nit (Peak)
Color Temperature: 9300K adjustable
Viewing Angle: Horizontal 160°, vertical 130°
Contrast Ratio: ≥ 8000:1
Color Uniformity: ≤ ± 0.003Cx，Cy
Brightness Uniformity: ≥ 97％
Driving Method: Constant current driving
Frame Frequency: 50/60 Hz
Refresh Rate: Up to 7680 Hz
Grey Level: 14~16 bit adjustable
Lamp Encapsulation: 2727 (gold wire)
Control System: Hikvision
Power Supply: 110~220 VAC ± 15%
Max. Consumption: ≤480 W/m² （9000nits）
Average Consumption: ≤160 W/m² （9000nits）
Working Temperature: -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉)
Working Humidity: 10%~95%RH (No condensation)
Storage Humidity: 10%~95%RH (No condensation)
Storage Temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
Gross Weight: 32.35 kg /1 in 1
Package Dimension (W × H × D): 1140 (W) mm × 244 (H) mm × 1068 (D) mm
Lifespan: Lamp 100,000 hours

השאירו פרטים ונחזור עם מחיר, זמינות מלאי וזמני אספקה.
