Hikvision
מסך LED חוץ P6.6 DS-D4266CQ42-2BP
DS-D4266CQ42-2BP

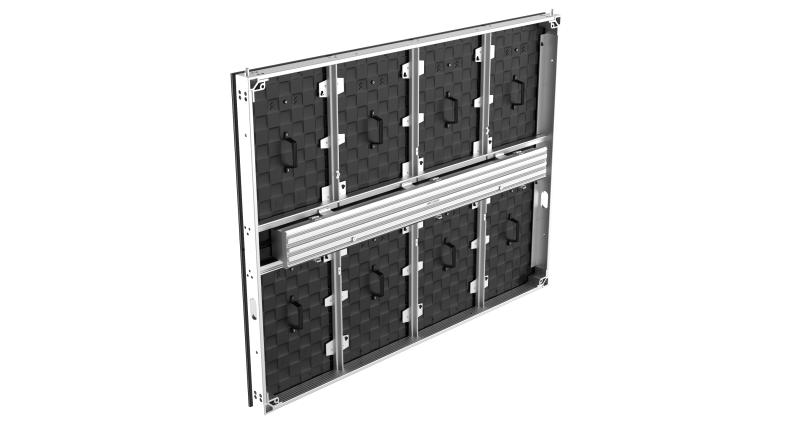

P6.6 Outdoor LED Display Unit V2.0 של Hikvision — דגם DS-D4266CQ42-2BP.
P6.6 Outdoor LED Display Unit V2.0
מפרט טכני
- Pixel Configuration
- SMD Triad LED
- Pixel Pitch Category
- P6.6
- Pixel Pitch
- 6.67 mm
- Modules Component
- 2 × 4

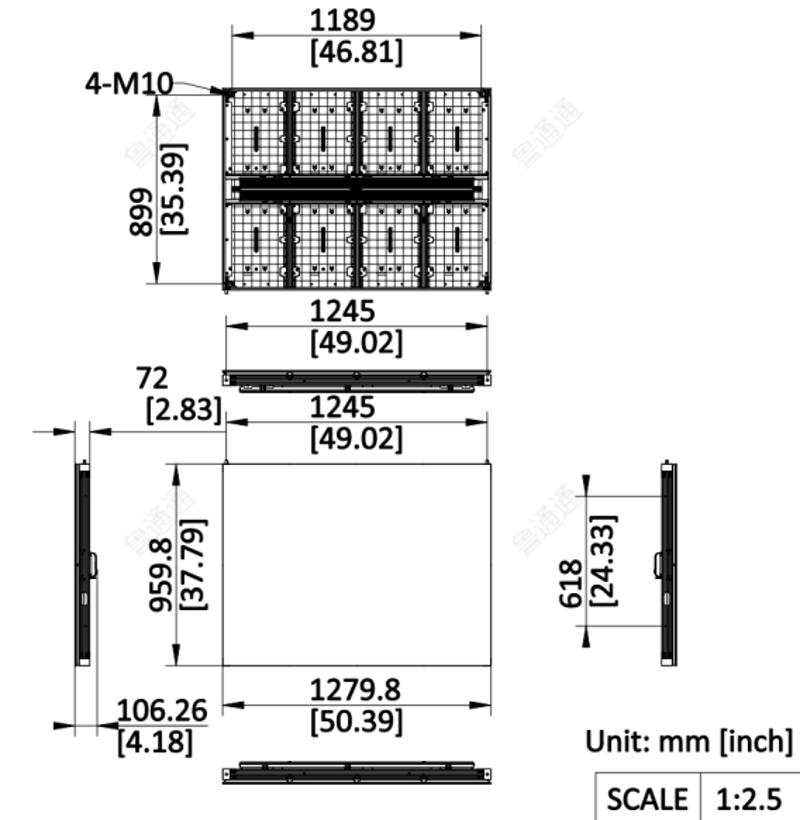

- Dimensions (W × H × D)
- 1280 mm × 960 mm × 106 mm
- Resolution
- 192 × 144
- Area
- 1.2288 m²
- Pixel Density
- 22500 dots/m²
- Lamp Board Housing
- With housing
- Cabinet Material
- Aluminum Profile
- Maintenance Method
- Rear maintenance
- Protection Level
- IP66
- White Balance Brightness
- 6000 cd/㎡
- Color Temperature
- 9300K adjustable
- Viewing Angle
- Horizontal 160°, vertical 130°
- Contrast Ratio
- ≥ 8000:1
- Color Uniformity
- ≤ ± 0.003Cx，Cy
- Brightness Uniformity
- ≥ 97％
- Driving Method
- Constant current driving
- Frame Frequency
- 50/60 Hz
- Refresh Rate
- 7680 Hz
- Grey Level
- 14~16 bit adjustable
- Lamp Encapsulation
- 2727 (Copper)
- Control System
- Hikvision
- Power Supply
- 110~220 VAC ± 15%
- Max. Consumption
- ≤579 W/m² （6000nits）
- Average Consumption
- ≤193 W/m² (6000nits)
- Working Temperature
- -30 ℃ to 50 ℃ (-22℉ to 122 ℉)
- Working Humidity
- 10%~95%RH (No condensation)
- Storage Humidity
- 10%~95%RH (No condensation)
- Storage Temperature
- -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
- Gross Weight
- 30.5kg /1 in 1
- Package Dimension (W × H × D)
- 1410 (W) mm × 210 (H) mm × 1057 (D) mm
- Lifespan
- Lamp 100,000 hours
