מסך LED חוץ P10 DS-D42A0CO-2APA

DS-D42A0CO-2APA

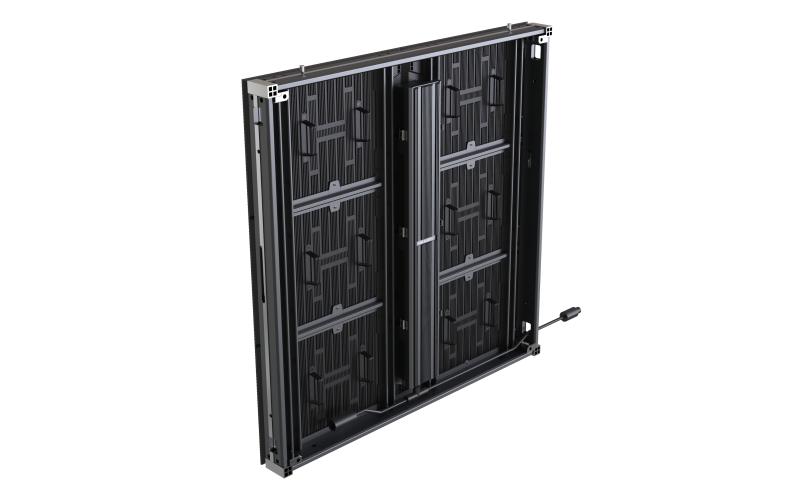

P10 Outdoor LED Display Unit של Hikvision — דגם DS-D42A0CO-2APA.

P10 Outdoor LED Display Unit

שיתוף:

מפרט טכני

Pixel Configuration: SMD Triad LED
Pixel Pitch Category: P10
Pixel Pitch: 10 mm
Modules Component: 3 × 2
Dimensions (W × H × D): 960 mm × 960 mm × 100 mm
Resolution: 96 × 96
Area: 0.9216 m²
Pixel Density: 10000 dots/m²
Lamp Board Housing: With housing
Cabinet Material: Aluminum Profile
Maintenance Method: Front/Rear maintenance
Protection Level: IP66
White Balance Brightness: 6500 nit (Factory preset brightness) 7000 nit (Peak)
Color Temperature: 9300K adjustable
Viewing Angle: Horizontal 160°, vertical 130°
Contrast Ratio: ≥ 8000:1
Color Uniformity: ≤ ± 0.003Cx，Cy
Brightness Uniformity: ≥ 97％
Driving Method: Constant current driving
Frame Frequency: 50/60 Hz
Refresh Rate: Up to 7680 Hz
Grey Level: 14~16 bit adjustable
Lamp Encapsulation: 2727(Copper)
Control System: Hikvision
Power Supply: 110~220 VAC ± 15%
Max. Consumption: ≤510 W/m² （6500nits）
Average Consumption: ≤170 W/m² (6500nits)
Working Temperature: -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉)
Working Humidity: 10%~95%RH (No condensation)
Storage Humidity: 10%~95%RH (No condensation)
Storage Temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
Gross Weight: 27.8kg /1 in 1
Package Dimension (W × H × D): 1140 (W) mm × 244 (H) mm × 1068 (D) mm
Lifespan: Lamp 100,000 hours
