Hikvision

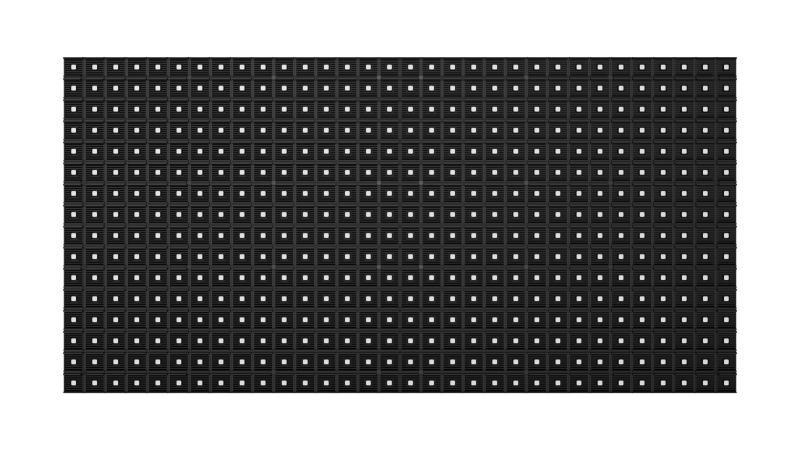

מודול LED DS-D43Q25CA-1PH
DS-D43Q25CA-1PH
DS-D43Q25CA-1PH,outdoor,2.5mm,320*160mm,3840hz של Hikvision — דגם DS-D43Q25CA-1PH.
DS-D43Q25CA-1PH,outdoor,2.5mm,320*160mm,3840hz
מפרט טכני
- Pixel Configuration
- SMD Triad LED
- Pixel Pitch Category
- P2.5
- Pixel Pitch
- 2.5mm
- Dimensions (W × H × D)
- 320 mm × 160 mm x 18mm
- Resolution
- 128 × 64
- Pixel Density
- 16000 dot/m2
- Maintenance Method
- Back maintenance
- Signal Source Interface
- HUB75E
- Module Flatness
- 0.3 mm
- Waterproof Level
- IP65(Front)
- White Balance Brightness
- 4500cd/㎡
- Color Temperature
- 2000～14000K adjustable
- Viewing Angle
- 140°(H)/120°(V)
- Contrast Ratio
- 5000:1
- Color Uniformity
- ≤ ± 0.003Cx，Cy
- Brightness Uniformity
- ≥ 97％
- Driving Method
- Constant current driving，Scan：16/S
- Frame Frequency
- 60 Hz
- Refresh Rate
- Up to 3840 Hz
- Grey Level
- Up to 14 bit
- Control System
- DT60C
- Power Supply
- 5V DC
- Max. Consumption
- ≤ 700 W/㎡
- Average Consumption
- ≤233W/m²
- Working Temperature
- -20 ℃ to 50 ℃ (-4 ℉ to 120 ℉)
- Working Humidity
- 10% RH to80% RH (without condensation)
- Storage Humidity
- 10% RH to90% RH (without condensation)
- Storage Temperature
- -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
- Package Dimensions (W × H × D)
- 626 (W) mm × 372 (H) mm × 402 (D) mm (24.65 '' × 14.65 '' × 15.83 '')
- Packing Method
- 40 pcs/BOX
- Net Weight
- 0.425 kg/PCS
