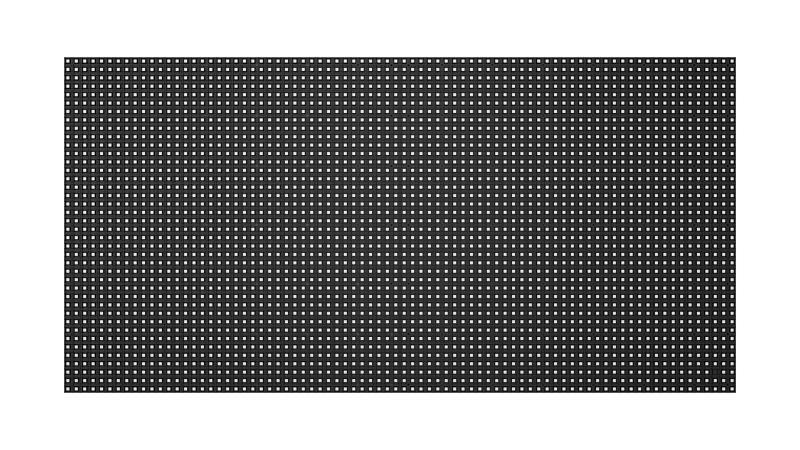

מודול LED DS-D43Q50CA-1PH

DS-D43Q50CA-1PH

DS-D43Q50CA-1PH,outdoor,5.0mm,320*160mm,3840hz של Hikvision — דגם DS-D43Q50CA-1PH.

DS-D43Q50CA-1PH,outdoor,5.0mm,320*160mm,3840hz

שיתוף:

מפרט טכני

Pixel Configuration: SMD Triad LED
Pixel Pitch Category: P5.0
Pixel Pitch: 5 mm
Dimensions (W × H × D): 320 mm × 160 mm x 17.3 mm
Resolution: 64 × 32
Pixel Density: 40000 dots/m²
Maintenance Method: Back maintenance
Signal Source Interface: HUB75E
Module Flatness: 0.2 mm
Waterproof Level: IP65 (Front)
White Balance Brightness: 4500cd/㎡
Color Temperature: 2000～14000K adjustable
Viewing Angle: Horizontal 140°, vertical 120°
Contrast Ratio: ≥ 5000:1
Color Uniformity: ≤ ± 0.003Cx，Cy
Brightness Uniformity: ≥ 97％
Driving Method: Constant current driving，Scan：8/S
Frame Frequency: 60 Hz
Refresh Rate: Up to 3840 Hz
Grey Level: Up to 14 bit
Lamp Encapsulation: 1921
Control System: DS-D42C08-H DS-D42C16-H
Power Supply: 5V DC
Max. Consumption: ≤ 744 W/m² (4500nits)
Average Consumption: ≤ 248 W/m² (4500nits)
Working Temperature: -20 ℃ to 50 ℃ (-4 ℉ to 120 ℉)
Working Humidity: 10%~80%RH
Storage Humidity: 10%~90%RH
Storage Temperature: -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
Package Dimensions (W × H × D): 626 (W) mm × 372 (H) mm × 402 (D) mm (24.65 '' × 14.65 '' × 15.83 '')
Packing Method: 40 pcs/BOX
Net Weight: 0.425 kg/PCS
