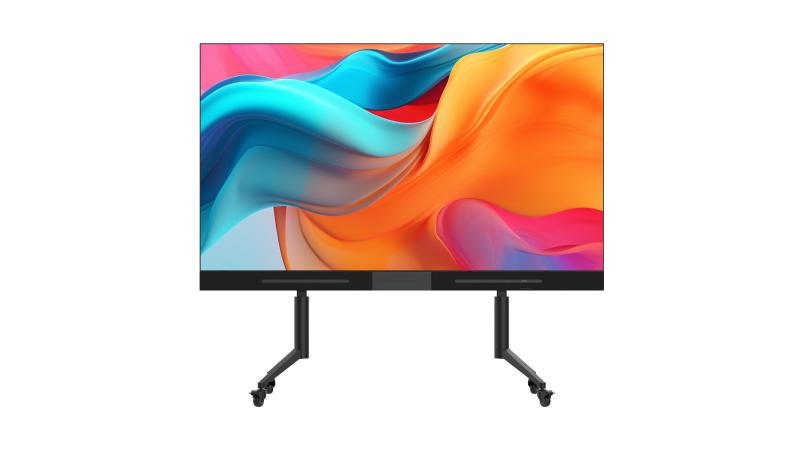

מסך LED קריאייטיב DS-D4512CB108-2FQ

מפרט טכני

Product Model

DS-D4512CB108-2FQ

Pixel Configuration

SMD Triad LED (with glue)

Pixel Pitch

1.25 mm

Resolution

1920*1080

Pixel Density

640000 dots/m²

Cabinet Material

Aluminum alloy

Pixel Pitch Category

P1.2

Maintenance Method

Front maintenance

White Balance Brightness

600 cd/m²

Color Temperature

3000-10000K adjustable

Viewing Angle

160° (H)/160° (V)

Brightness Uniformity

± 0.003Cx，Cy

Color Uniformity

≥ 97％

Screen Size

108inch （275.3cm）

Contrast Ratio

3000:1

Active Screen Area

3.2 ㎡

Display Ratio

16:9

Optimal View Distance

3 m

Operation System

Android 12, windows 10 (optional with OPS accessories)

Processor

Android: Max. 1.5 GHz, A76 × 4 + A55 × 4 Windows: i5-11390H

Memory

Android: 16GB Windows: 16GB

Built-in Storage

Android: 256 GB Windows: 256 GB

NIC

Integrated gigabit LAN with router mode enabled

CPU Clock Speed

2.4 GHz

Wireless

Supports concurrent operation in station and access point (AP) mode, enabling Wi-Fi hotspot functionality.

Bluetooth

Integrated BLE module compliant with Bluetooth 5.1 and backward-compatible versions.

Video & Audio Input

LINE IN × 1, HDMI IN × 4

Video & Audio Output

LINE OUT × 1, SPDIF OUT × 1，HDMI OUT × 1

Data Transmission Interface

Front Panel Interfaces: USB 3.0 × 2, Type-C × 1 Internal Slot at Bottom: USB 2.0 × 1

Control Interface

1 × RS232 serial port

Speaker

Built-in 2*18 W speaker

Driving Method

Constant current driving

Frame Frequency

30 Hz/60 Hz

Refresh Rate

3840 Hz

Grey Level

16 bit

Power Specification

4.2 V/40 A (Cabinet Power Supply), 19 V/8 A (Control Power Supply)

Standby Consumption

≤ 0.5 W

Short Circuit

220V, 20A

Max. Consumption

≤ 1500 W

Average Consumption

≤ 500 W

Input Voltage

110~240 VAC，50/60 Hz (110V with Low-Voltage Power Cord)

Working Temperature

-10 to 40 °C (14 to 104 °F)

Working Humidity

20% to 80% RH (non-condensing)

Storage Temperature

-10 to 50 °C (14 to 122 °F)

Storage Humidity

10% to 90% RH (non-condensing)

Product Dimension (W × H × D)

With Base: 2411.6 (W) mm × 3138.2 (H) mm × 929.2 (D) mm Without Base: 2411.6 (W) mm × 1476.4 (H) mm × 47.6 (D) mm Screen size: 2400 (W) mm × 1350 (H) mm

Mounting Type

Wall Mounting / Mobile Floor Standing Bracket Mounting (Packaging Includes Wall-mount Bracket by default.)

Packing Method

1 Wooden case package

Net Weight

95.3 kg (210.1 lb.)

Package Dimensions (W × H × D)

1494 (W) mm × 1239 (H) mm × 454 (D) mm (58.52 '' × 48.78 '' × 17.87 '')

Packing List

LED Module Spare Parts ×4, Multilingual Manual ×1, Bottom Panel Connecter X1, Wall Mounting Bracket X1, Cables (OPS Power cable, OPS Signal Cable, Main Power Cable, Ethernet Cable, Cabinet Cascase Power Cable), Accessories (Lamps, IC, Screws, Expansion Bolt, Tools, etc.)

Indicator

Red: The device is standby. Blue: The device is powered on.

Button

On/Off/Sleep button × 1

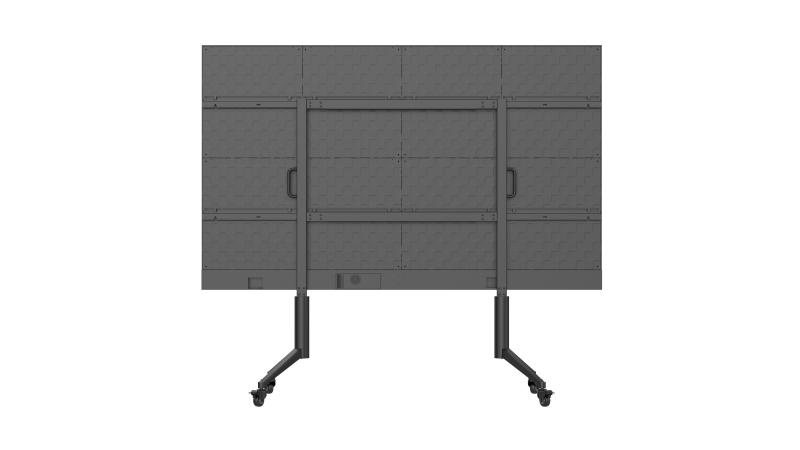

Modular Bracket

Floor-standing Bracket:DP-D40XCB22-4X4-Q3-NS-Q4-ZY/108;
