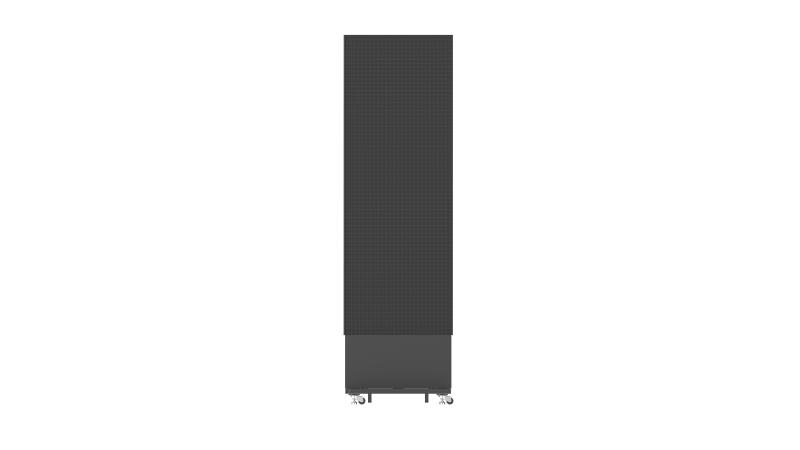

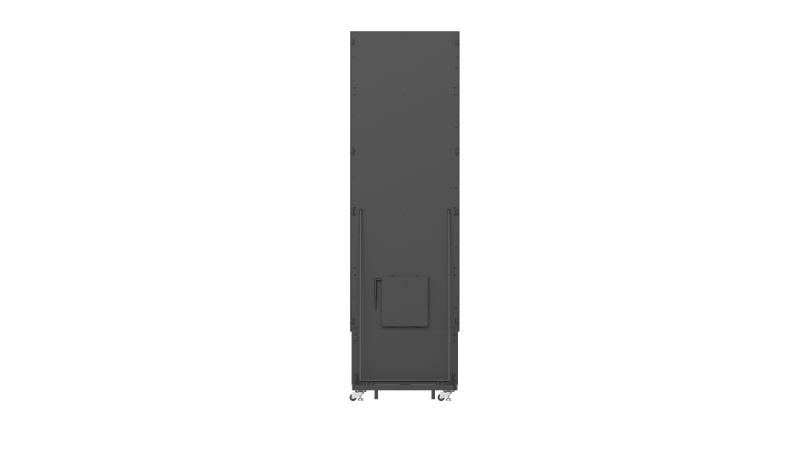

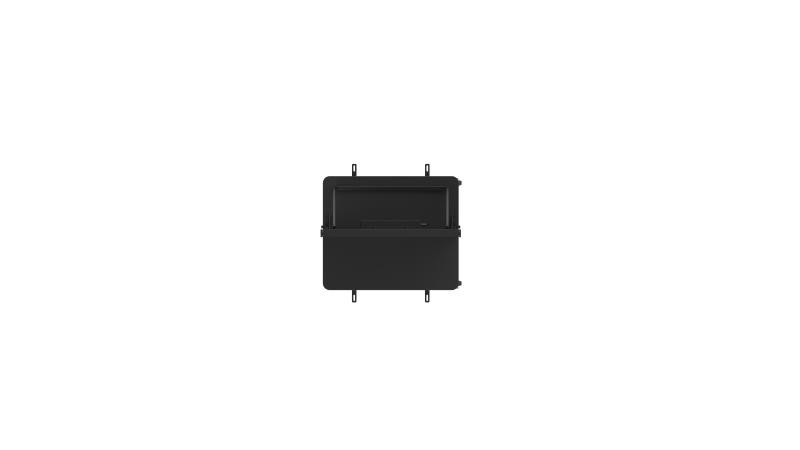

מסך LED קריאייטיב DS-D4512CH-1FQF

מפרט טכני

Product Model

DS-D4512CH-1FQF

Pixel configuration

SMD Triad LED (with glue)

Pixel Pitch Category

P1.2

Pixel pitch

1.25 mm

Lamp Bead Dimensions

1.02 x 1.02 mm

Modules Component

Cabinet × 5, single cabinet LED Module (2 × 2)

Dimensions (W × H × D)

600 (W) mm × 1687.5 (H) mm ×29.5 (D) mm (23.622'' × 66.435'' × 1.161'')

Resolution

480*1350

Area

1.0125 ㎡

Pixel density

640000 dots/㎡

Lamp board housing

Without housing, glue potting

Cabinet material

Diecasting Aluminium

Maintenance method

Front maintenance

White balance brightness

600 cd/㎡

Color temperature

1700-15000K adjustable

Viewing angle

160°(H)/160°(V)

Contrast ratio

4000：1

Color uniformity

± 0.003Cx，Cy

Brightness uniformity

≥ 97％

Driving method

Constand Current Driving

Frame frequency

60 Hz

Refresh rate

3840 Hz

Grey level

22 bit+

Input Voltage

100~240 VAC ± 10％

Max. Consumption

≤460 W/㎡(600nit)

Average Consumption

≤153 W/㎡

Opration Temperature

-10 ℃~40 ℃

Operation Humidity

10%~60%RH

Storage humidity

-20 ℃ ~ 60 ℃

Storage temperature

-20 ℃~60 ℃

Package Dimension (W × H × D)

2070 (W) mm × 665 (H) mm × 350 (D) mm (81.5 '' × 26.18 '' × 13.78 '')

Accessory

50 LED lamp beads, 10 IC chips, 1 network cable, 1 power cable, 1 HDMI cable, 1 multilingual user manual, 1 remote control, 1 magnetic adjustment rod, 1 cable clip, 1 Phillips screwdriver, 1 hex key wrench, 1 power cable, 2 spare LED modules, 1 spare HUB Board

Gross Weight

90.5 kg/1 in 1 (199.52 lb.)

Net Weight

50kg/1 in 1 (110.23 lb.)
