מסך LED להשכרה DS-D4626CE22-1AB/P

מפרט טכני

Pixel Configuration

SMD Triad LED

Pixel Pitch Category

P2.6

Pixel Pitch

2.6042 mm

Modules Component

2 × 2

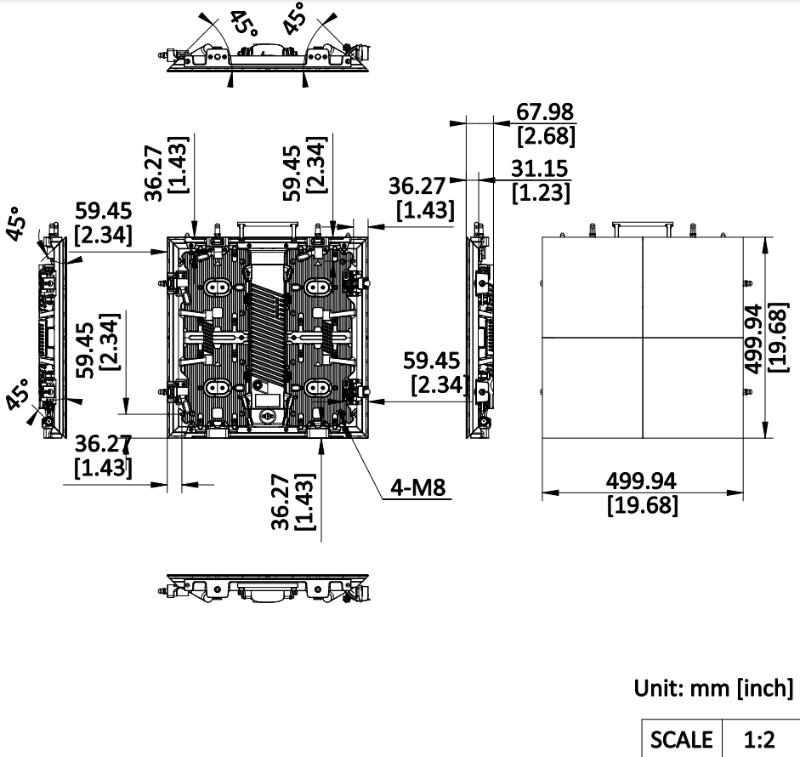

Dimensions (W × H × D)

500 (W) mm × 500 (H) mm × 69 (D) mm (19.69'' × 19.69'' × 2.72'')

Resolution

192 × 192

Area

0.25 m²

Pixel Density

147456 dots/m²

Lamp Board Housing

With housing

Cabinet Material

Die-casting Aluminium

Maintenance Method

Front & Rear maintenance

Protection Level

IP40

White Balance Brightness

800 cd/㎡

Color Temperature

6500K adjustable

Viewing Angle

Horizontal 160°, vertical 140°

Contrast Ratio

≥ 6000:1

Color Uniformity

≤ ± 0.006Cx，Cy

Brightness Uniformity

≥ 97％

Driving Method

1/16

Frame Frequency

50/60 Hz

Refresh Rate

7680 Hz

Grey Level

16 bit

Lamp Encapsulation

SMD1515

Control System

Hikvision

Power Supply

AC: 110 to 220 V ± 15%

Max. Consumption

≤500 W/m² (1000nits)

Average Consumption

≤160 W/m² (800nits)

Working Temperature

-20 ℃ to 45 ℃ (-4 ℉ to 113 ℉)

Working Humidity

10% RH to 90% RH (No condensation)

Storage Humidity

10% RH to 90% RH (No condensation)

Storage Temperature

-40 ℃ to 60 ℃ (-40 ℉ to 140 ℉)

Gross Weight

111 kg/10 in 1 (244.71 lb.)

Package Dimension (W × H × D)

1092 (W) mm × 610 (H) mm × 580 (D) mm (42.99'' × 24.02'' × 22.83'')
