מסך LED להשכרה DS-D4629CE22-1AS

מפרט טכני

Pixel Configuration

SMD Triad LED

Pixel Pitch Category

P2.9

Pixel Pitch

2.9762 mm

Modules Component

2 × 2

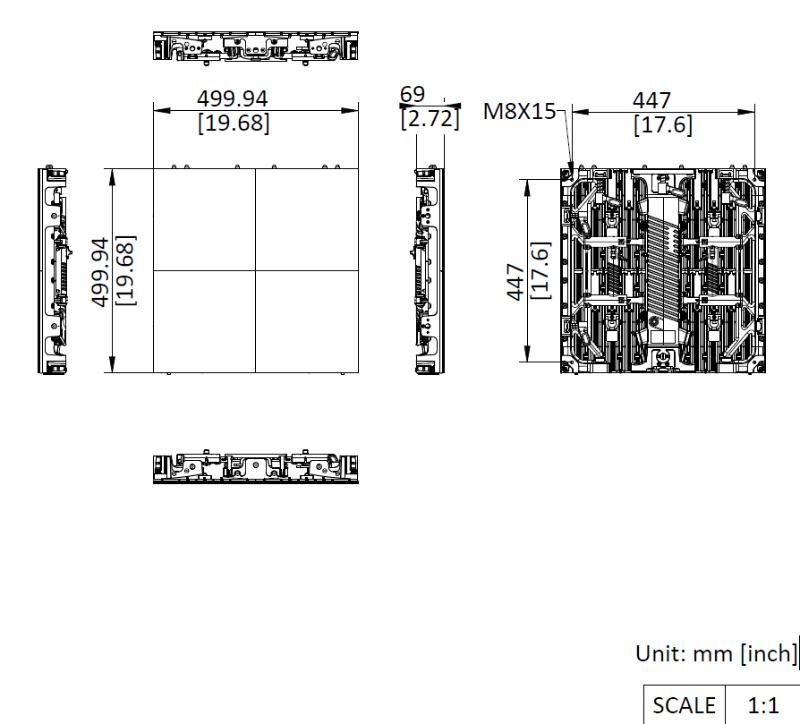

Dimensions (W × H × D)

500mm × 500mm × 69mm

Resolution

168 × 168

Area

0.25 m²

Pixel Density

112896 dots/m²

Lamp Board Housing

With housing

Cabinet Material

Die-casting Aluminium

Maintenance Method

Rear maintenance

Protection Level

IP40

White Balance Brightness

1000 cd/㎡

Color Temperature

6500K adjustable

Viewing Angle

Horizontal 160°, vertical 140°

Contrast Ratio

≥ 6000:1

Color Uniformity

≤ ± 0.004Cx, Cy

Brightness Uniformity

≥ 97％

Driving Method

1/21

Frame Frequency

50/60 Hz

Refresh Rate

7680 Hz

Grey Level

14-bit

Lamp Encapsulation

SMD2020

Control System

Hikvision

Power Supply

110~220 VAC ± 15%

Max. Consumption

≤460 W/m² (1000nits)

Average Consumption

≤154 W/m²

Working Temperature

-20 ℃ to + 45 ℃ (-4 ℉ to + 113 ℉)

Working Humidity

10% ~ 90%RH (No condensation)

Storage Humidity

10% ~ 90%RH (No condensation)

Storage Temperature

-40 ℃ to + 60 ℃ (-40 ℉ to + 140 ℉)

Gross Weight

120.6 kg /10 in 1

Package Dimension (W × H × D)

1092(W) × 580(D) × 610(H) mm
