מסך LED להשכרה DS-D4729CE-1AB/P/M

מפרט טכני

Product Type

Spare Modules Package

Pixel Configuration

SMD Triad LED

Pixel Pitch Category

P2.9

Pixel Pitch

2.9762 mm

Resolution

84 × 84

Pixel Density

112896 dots/m²

Lamp Board Housing

With housing

Maintenance Method

Rear maintenance

White Balance Brightness

4000 cd/㎡

Color Temperature

6500K adjustable

Viewing Angle

Horizontal 160°, vertical 140°

Contrast Ratio

≥ 6000:1

Color Uniformity

≤ ± 0.006Cx，Cy

Brightness Uniformity

≥ 97％

Frame Frequency

50/60 Hz

Refresh Rate

7680 Hz

Grey Level

16 bit

Lamp Encapsulation

Black SMD1415

Control System

Hikvision

Working Temperature

-20 ℃ to 45 ℃ (-4 ℉ to 113 ℉)

Working Humidity

10% RH to 90% RH (No condensation)

Storage Humidity

10% RH to 90% RH (No condensation)

Storage Temperature

-40 ℃ to 60 ℃ (-40 ℉ to 140 ℉)

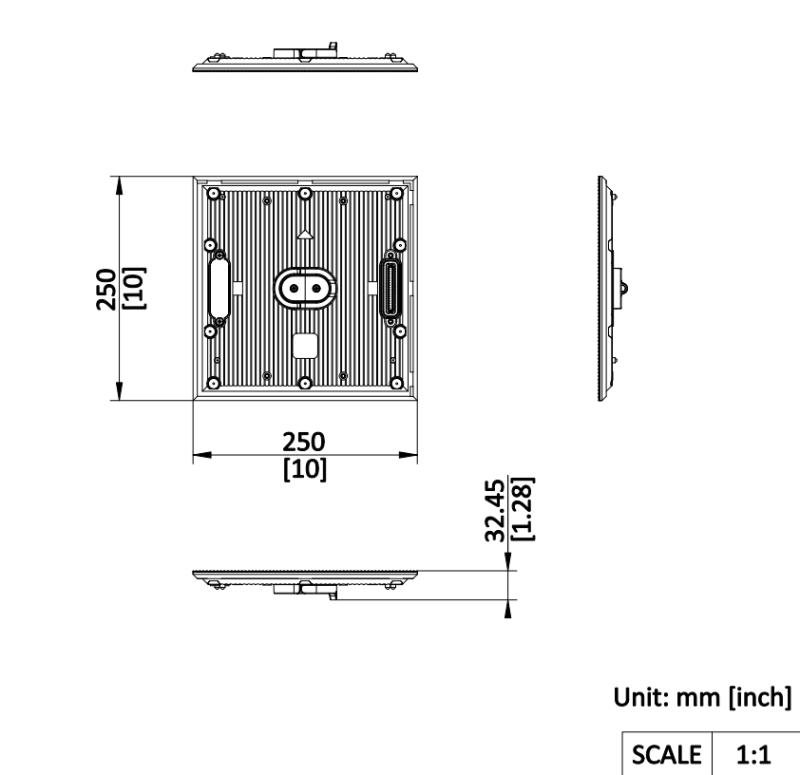

Package Dimensions (W × H × D)

320 (W) mm × 315 (H) mm × 150 (D) mm (12.60'' × 12.40'' × 5.91'')

Gross Weight

2.8 kg/4 in 1 (6.17 lb.)
