מסך LED להשכרה DS-D4729CE22-1AB/P

מפרט טכני

Pixel Configuration

SMD Triad LED

Pixel Pitch Category

P2.9

Pixel Pitch

2.9762 mm

Modules Component

2 × 2

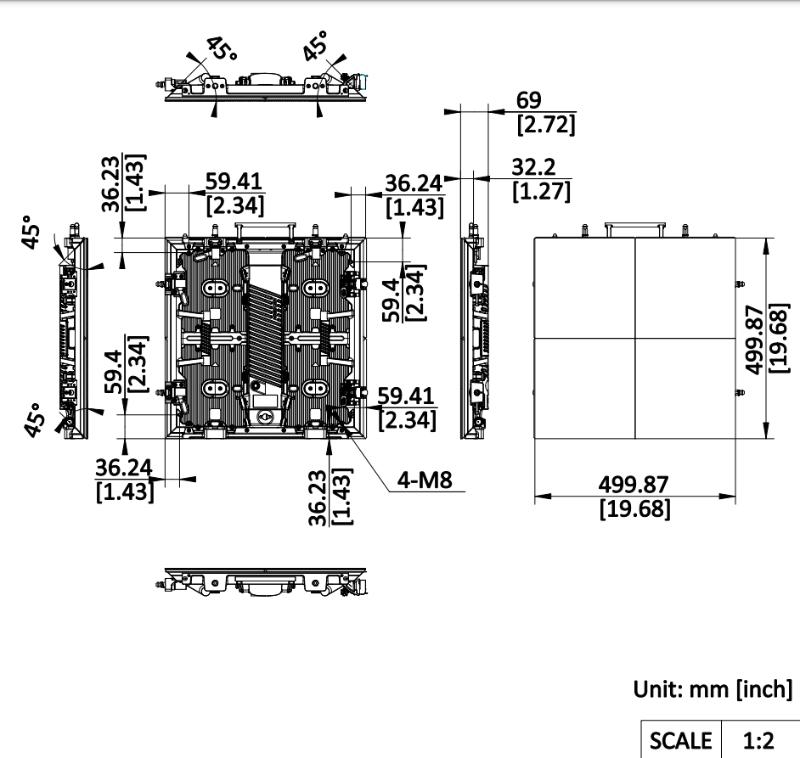

Dimensions (W × H × D)

500 (W) mm × 500 (H) mm × 69 (D) mm (19.69'' × 19.69'' × 2.72'')

Resolution

168 × 168

Area

0.25 m²

Pixel Density

112896 dots/m²

Lamp Board Housing

With housing

Cabinet Material

Die-casting Aluminium

Maintenance Method

Rear maintenance

Protection Level

IP65

White Balance Brightness

4000 cd/㎡

Color Temperature

6500K adjustable

Viewing Angle

Horizontal 160°, vertical 140°

Contrast Ratio

≥ 6000:1

Color Uniformity

≤ ± 0.006Cx，Cy

Brightness Uniformity

≥ 97％

Driving Method

1/14

Frame Frequency

50/60 Hz

Refresh Rate

7680 Hz

Grey Level

16 bit

Lamp Encapsulation

Black SMD1415

Control System

Hikvision

Power Supply

AC: 110 to 220 V ± 15%

Max. Consumption

≤730 W/m² (4000nits)

Average Consumption

≤244 W/m²

Working Temperature

-20 ℃ to 45 ℃ (-4 ℉ to 113 ℉)

Working Humidity

10% RH to 90% RH (No condensation)

Storage Humidity

10% RH to 90% RH (No condensation)

Storage Temperature

-40 ℃ to 60 ℃ (-40 ℉ to 140 ℉)

Gross Weight

115 kg/10 in 1 (253.53 lb.)

Package Dimension (W × H × D)

1092 (W) mm × 610 (H) mm × 580 (D) mm (42.99'' × 24.02'' × 22.83'')
