בקר LED DS-DT30P-01HI02NO

מפרט טכני

Brightness Control

1 to 100 tunable (level-by-level white balance)

Input Frame Rate

25 Hz to 60 Hz

Grey Level

256

Display Color

16 MP

Processing Depth

8 bit

Image Scaling

Supported

Product Model

DS-DT30P-01HI02NO

Chassis Height

28.9 mm(1.14 inch)

Chassis Width

156 mm(6.14 inch)

Light Sensor Port

Supported

Average Consumption

11 W

Power Interface Quantity

1

Power Interface

12 V, Φ2.1

USB Interface

1 × USB 2.0

Control Network Port

1 × 10/100/1000 Mbps auto-sensing Ethernet port (RJ-45),Connects to the external network.

Open Windows

Simultaneously display of 1 channel of HDMI signal source and 1 channel of Android source

Background Images

2

Background Resolution

Min.: 640 × 480, Max.: 1920 × 1200

Background Format

JPG/JPEG

Working Temperature

-20℃ to 60℃(-4℉ to 140℉)

Storage Humidity

10% RH to 90% RH, no condensation

Working Humidity

10% RH to 90% RH, no condensation

Storage Temperature

-20℃ to 60℃(-4℉ to 140℉)

Packaging Size (W × H × D)

210 mm × 85 mm × 127 mm (8.27 inch × 3.35 inch × 5inch)

Net Weight

0.18 kg (0.4 lb)

Gross Weight

0.33 kg (0.73 lb)

Dimensions (W × H × D)

156 mm × 28.9 mm × 110 mm (6.14 inch × 1.14 inch × 4.33 inch)

Packing List

1 × DC adapter, 1 × terminal block, 1 × Rod-shaped Wi-Fi antenna, 1 × Regulatory compliance and safety information manual

Product Type

LED controller

Audio Input Interfaces

1

Audio Input Interface Type

1 channel of embedded HDMI input

Video Input Interfaces

2

Video Input Interface Type

1 HDMI 1.3 + 1 embedded Android

Max. Video Input Resolution

1080p

Video Input Resolution

HDMI 1.3 port: Max. resolution: 1920 × 1080@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 2.07 MP@60 Hz Max. width: 320 to 2048, alignment: multiple of 4 Max. height: 180 to 2048, alignment: multiple of 2 Supports HDCP 1.4. Interlacing signal input is not supported.

Video Input Processing Feature

Processing depth: 8 bit Sampling format: RGB: 444 YUV: 444 YUV: 422

Built-in Android Resolution

1080p

Max. Video Output Resolution

1300000

Loading Capacity for Video Output to LED

Single port load 650000, Width 144 - 2048, Height 64 - 2048, Width must be a multiple of 2 and height must be a multiple of 1

LED Loading Interfaces

2

LED Loading Interface Type

RJ-45

Audio Output Interfaces

1

Audio Output Interface

3.5mm audio output

System

Android 14

Memory Capacity

2 GB

Storage Capacity

64 GB

CPU

4-core 64-bit ARM cortex-A53 2.0 GHz

Wi-Fi

2.4 GHz

Antenna

1 × rod-shaped Wi-Fi antenna

Remote Control

Supported(RF remote control)

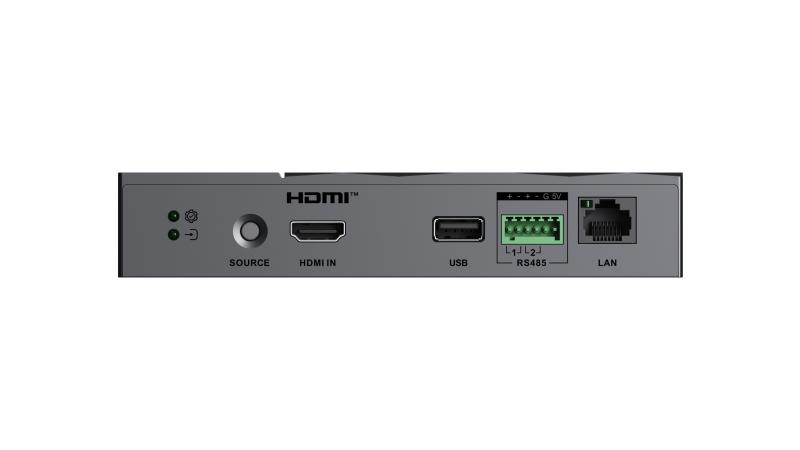

Button

Source: change signal source between HDMI and Android sources

Serial Interface

1 × RS-485 serial port for central control device (green Phoenix contact, baud rate: 115200, data bit: 8)+1 × RS-485 serial port for temperature humidity sensor (green Phoenix contact, baud rate: 115200, data bit: 8)

File Format

Video, image, music, document, text, stream media, clock, network camera, HDMI signal source

Program Playback

Supports starting and stopping program playback

Playback Attribute

Supports configuration of window size, position, and playback time. Supports program creation and schedule configuration.

Video Playback Performance

Supports 1 channel of 4K@30 or 2 channels of 1080p@60 multi-media video

Indicator

Active: The device is running. Source: The signal source is connected.
