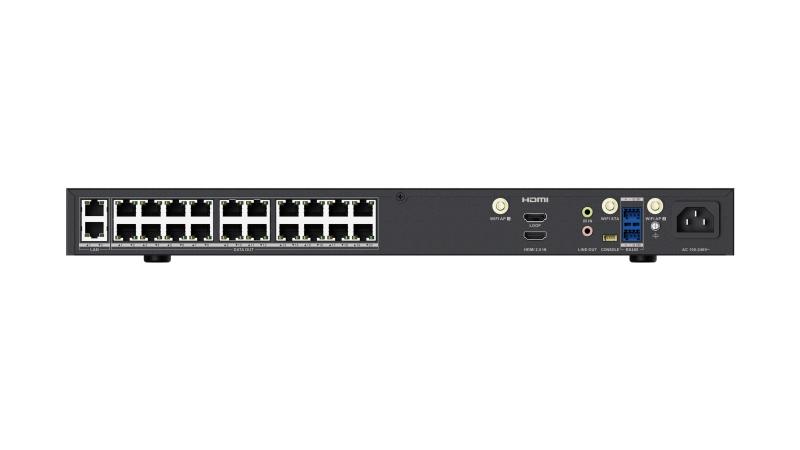

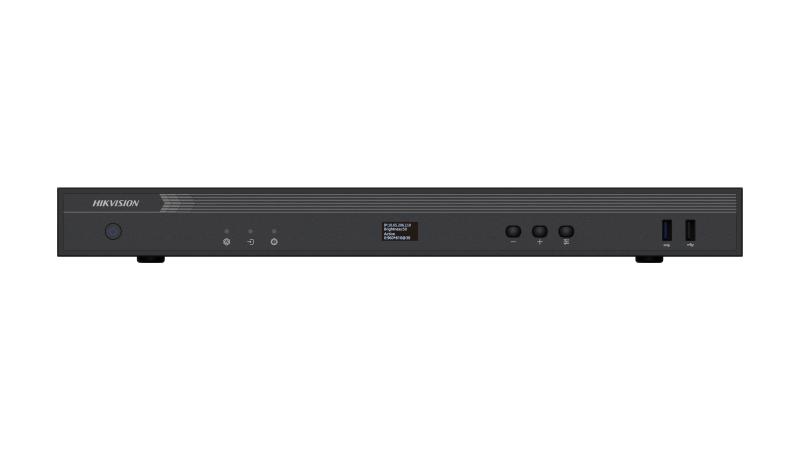

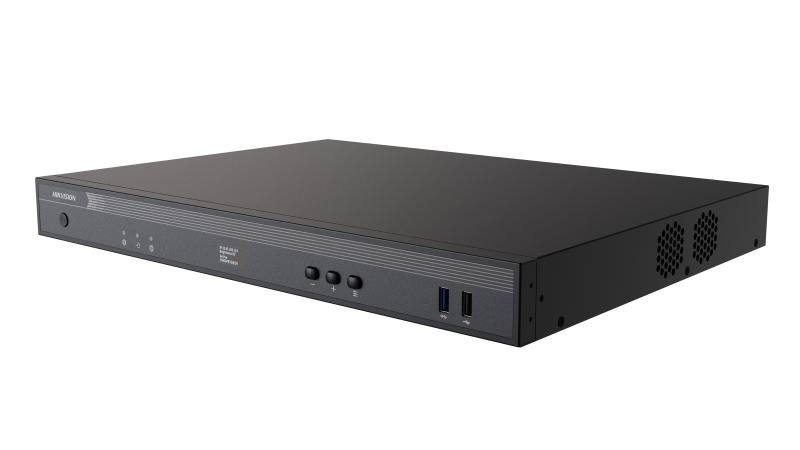

בקר LED DS-DT60B-01HI20NO/U

מפרט טכני

Brightness Control

1 to 100 tunable (level-by-level white balance)

Input Frame Rate

25 Hz to 120 Hz

Grey Level

1024

Display Color

1 Gigapixel

Processing Depth

10 bit

Image Scaling

Supported

Product Model

DS-DT60B-01HI20NO/U

Chassis Height

1 U

Chassis Width

440 mm(17.32 inch)

Light Sensor Port

Supported

Average Consumption

≤32 W

USB Interface

1 × USB 2.0 + 1 × USB 3.0

Serial Interface

1 × debugging port (4-pin connector)+ 1× RS-485 central control port (green Phoenix contact) + 1 × RS-485 light sensor port (green Phoenix contact) Baud rate: 115200, data bit: 8

Power Interface

1, 100 VAC to 240 VAC, 50/60 Hz

Control Network Port

2 × 10/100/1000 Mbps auto-sensing Ethernet port (RJ-45),Connects to the external network and supports multi-device network cascade management.

Scenes

10

Background Image

Supported (quantity: 1, max. resolution: 1920 × 1200, min. resolution: 640 × 480, format: JPG/JPEG)

Screen

Screen type: OLED, resolution: 128 × 64

Working Temperature

-10℃ to 50℃(14℉ to 122℉)

Storage Humidity

10% RH to 90% RH, no condensation

Working Humidity

10% RH to 90% RH, no condensation

Storage Temperature

-10℃ to 50℃(14℉ to 122℉)

Packaging Size (W × H × D)

589 mm × 103 mm × 410 mm (23.19 inch × 4.06 inch × 16.14inch)

Net Weight

3.24 kg (7.14 lb)

Gross Weight

4.42 kg (9.74 lb)

Dimensions (W × H × D)

440 mm × 44.5 mm × 320.8 mm (17.32 inch × 17.5 inch × 12.63 inch)

Packing List

1 × AC power cord, 1 × mounting bracket, 2 × RS-485 green Phoenix contact for central control device, 1 × regulatory compliance and safety information manual, 3 × bar antenna, 1× RF remote control

Product Type

LED controller

Audio Input Interface

1-channel HDMI 2.0 + 1-channel embedded Android

Video Input Interface Type

1-channel HDMI 2.0 or 1-channel embedded Android

Video Input Interfaces

2

Max. Video Input Resolution

HDMI2.0: 4K

Video Input Resolution

HDMI2.0 port: Max. resolution: 4096 × 2160@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 8.84 MP@60 Hz Max. width: 144 to 8192, alignment: 2 alignment Max. height: 144 to 8192, alignment: 1 alignment Supports HDCP 2.2. Interlacing signal input is not supported.

Video Input Processing Feature

Processing depth: 10 bit Sampling format: RGB: 444 YUV: 444 YUV: 422 YUV: 420

Video Input Preview

Supported

Built-in Android Resolution

4K

Max. Video Output Resolution

Mini loading mode: 13000000 Standard loading mode: 13000000

Loading Capacity for Video Output to LED

Mini loading mode: Single port load 650000, Width 144 - 8192, Alignment: multiple of 2, Height 64 - 8192, Alignment: multiple of 1, Max. load does not exceed 13000000; Standard loading mode: Single port load 2925000, Width 144 - 8192, Alignment: multiple of 2; Height 64 - 8192, Alignment: multiple of 1; Max. load does not exceed 13000000

LED Loading Interfaces

20

LED Loading Interface Type

RJ-45

Video Loop Output Interface

1-channel HDMI2.0

Video Loop Output Resolution

HDMI2.0 port: Max. resolution: 4096 × 2160@60 Hz Min. resolution: 320 × 180@60 Hz Output resolution matches the video input resolution. Max. width: 144 to 8192, width must be a multiple of 2. Max. height: 144 to 8192, height must be a multiple of 1. Supports HDCP2.2

Loading Mode

Mini loading mode: Single port max load 650000 Standard loading mode: Single port max load 2925000

Audio Output Interface

1 × 3.5 mm audio

System

Android 12

Memory Capacity

4 GB

Storage Capacity

64 GB

CPU

4-core 64-bit ARM cortex-A55 2.0 GHz

Wi-Fi

STA 2.4 GHz, AP 2.4&5 GHz

Bluetooth

Bluetooth 4.0

Antenna

3 × bar antenna

Remote Control

Supports IR remote control and RF remote control

Button

+: increase brightness -: decrease brightness Source: change signal source

Power Switch

Button switch

Program Material Type

Video, image, audio, document, text, stream media, clock

Program Playback

Supports play, stop, fast forward, and rewind in the material window. Supports play and stop in program playback.

Playback Attribute

Supports configuration of window size, position, and playback time. Supports configuration of programs and schedule. Supports real-time playback control and asynchronous signal transmission configuration.

Video Playback Performance

Supports 1 channel of 4K@60 Hz, 4 channels of 1080p@60 Hz, or 6 channels of 720p@60 Hz multimedia video playback.

Indicator

Active: The device is running. Source: The signal source is accessed. Error: The device operation exception occurs.

IR Input

1 × 3.5 mm connector Supports the access of IR remote control.
