בקר LED DS-DT60C-01HI06NO

מפרט טכני

Brightness Control

1 to 100 tunable (level-by-level white balance)

Input Frame Rate

25 Hz to 60 Hz

Grey Level

256

Display Color

16 MP

Processing Depth

8 bit

Image Scaling

Supported

Product Model

DS-DT60C-01HI06NO

Chassis Height

1 U

Chassis Width

Half-width

Light Sensor Port

Not supported

Average Consumption

14 W

Power Interface Quantity

1

Power Interface

100 to 240 VAC, 50/60 Hz

USB Interface

1 channel of USB 2.0

Serial Interface

1 × debugging serial port (4-pin connector) + 1 × RS-485 central control serial port (green Phoenix contact) Baud rate: 115200, data bit: 8

Control Network Port

2 × 10/100/1000 Mbps self-adaptive Ethernet port (RJ-45) Connects to the external network and supports multi-device network cascade management.

Background Images

2

Background Resolution

Min.: 640 × 480, Max.: 1920 × 1200

Background Format

JGP/JPEG

Working Temperature

-10°C to 50°C

Storage Humidity

10% to 90%

Working Humidity

10% to 90%

Storage Temperature

-10°C to 50°C

Packaging Size (W × H × D)

353 mm × 237 mm × 89 mm (13.90 inch × 9.33 inch × 3.50inch)

Net Weight

1.18 kg (2.60 lb)

Gross Weight

1.62 kg (3.57 lb)

Dimensions (W × H × D)

210 mm × 180 mm × 42 mm (8.27 inch × 7.09 inch × 1.65 inch)

Packing List

1 × AC power cord, 1 × connecting bracket, 1 × mounting bracket, 1 × RS-485 green Phoenix contact for central control device, 1 × regulatory compliance and safety information manual, 1 × RF remote control

Product Type

LED controller

Audio Input Interfaces

1

Audio Input Interface Type

1 channel of embedded HDMI input

Audio Output Interfaces

1

Audio Output Interface Type

3.5 mm audio output

Video Input Interfaces

1

Video Input Interface Type

HDMI 1.4

Max. Video Input Resolution

1080P

Video Input Resolution

HDMI 1.4 port: Max. resolution: 1920 × 1200@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 2.6 MP@60 Hz Max. width: 144 to 4096, alignment: 2 alignment Max. height: 144 to 4096, alignment: 1 alignment Supports HDCP 1.4. Interlacing signal input is not supported.

Video Input Processing Feature

Processing depth: 8 bit Sampling format: RGB: 444 YUV: 444 YUV: 422

Max. Video Output Resolution

Mini loading mode: 3900000 Standard loading mode: 2925000

Loading Capacity for Video Output to LED

Mini loading mode: Single port load 650000, Width 144 - 5120, Alignment: multiple of 2, Height 64 - 5120, Alignment: multiple of 1, Max. load does not exceed 3900000; Standard loading mode: Single port load 2925000, Width 144 - 5120, Alignment: multiple of 2; Height 64 - 5120, Alignment: multiple of 1; Max. load does not exceed 2925000

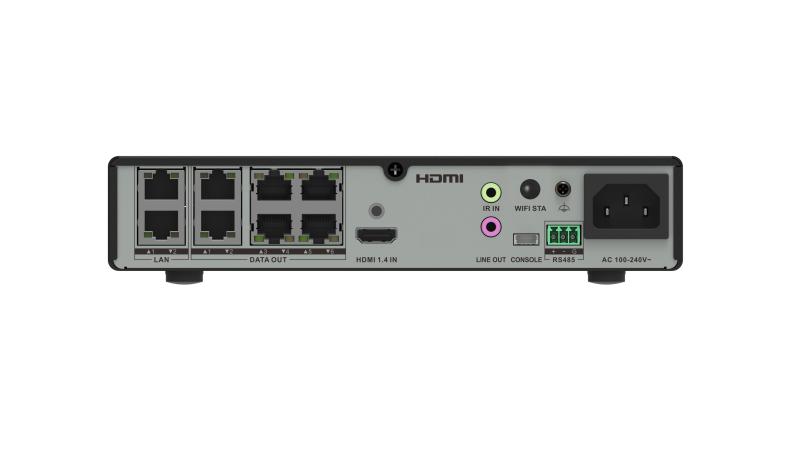

LED Loading Interfaces

6

LED Loading Interface Type

RJ-45

Loading Mode

Mini loading mode: Single port max load 650000 Standard loading mode: Single port max load 2925000

Remote Control

Supports IR remote control

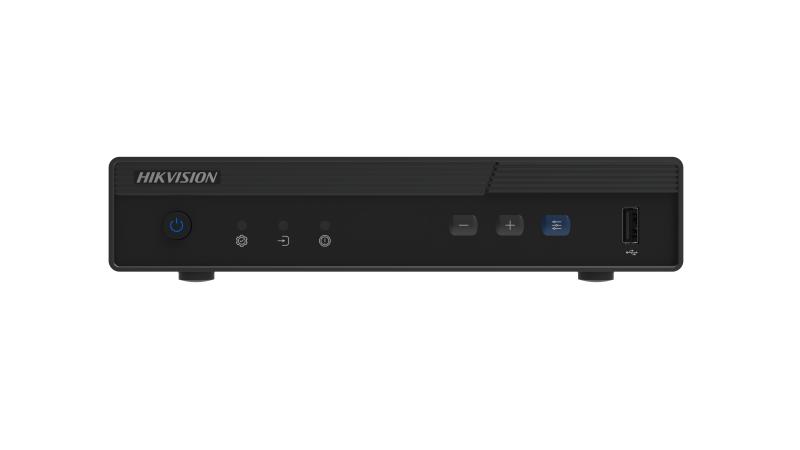

Button

+: increase brightness -: decrease brightness Source: change signal source

Indicator

Active: The device is running. Source: The signal source is accessed. Error: The device operation exception occurs.

Power Switch

On: The device is started and running. Off: The device is not powered on or is not started.

IR Input

1 × 3.5 mm connector Supports the access of IR remote control.
