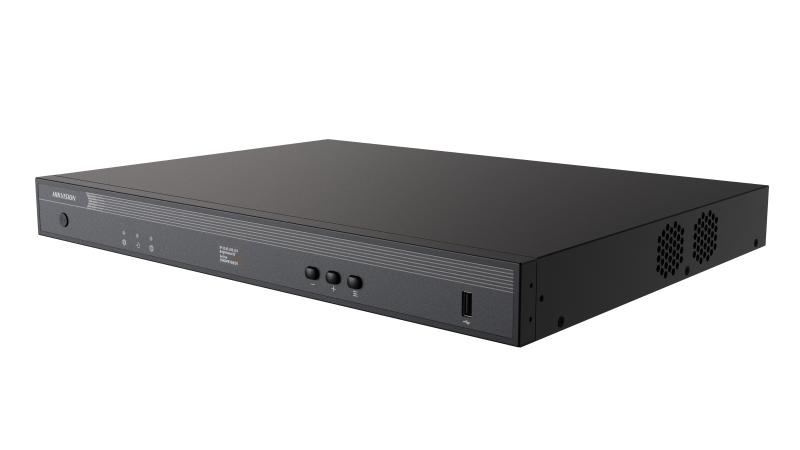

בקר LED DS-DT60V-03HDI20NO/U

מפרט טכני

Brightness Control

1 to 100 tunable (level-by-level white balance)

Input Frame Rate

25 Hz to 120 Hz

Grey Level

256

Display Color

16 MP

Processing Depth

8 bit

Image Scaling

Supported

Product Model

DS-DT60V-03HDI20NO/U

Chassis Height

1 U

Chassis Width

440 mm (17.32 inch)

Light Sensor Port

Supported

Average Consumption

≤43 W

Power Interface Quantity

1

Power Interface

100 to 240 VAC, 50/60 Hz

USB Interface

1 channel of USB 2.0

Serial Interface

1 × debugging serial port (4-pin connector) + 1 × RS-485 central control serial port (green Phoenix contact) + 1 × RS-485 serial port for light sensor (green Phoenix contact) Baud rate: 115200 Data bit: 8

Control Network Port

2 × 10/100/1000 Mbps self-adaptive Ethernet port (RJ-45) Connects to the external network and supports multi-device network cascade management.

Open Windows

3 signal source windows + 2 image windows + 1 scrolling text window + 1 background window

Layers per Device

7

Scenes

10

Background Images

1

Background Resolution

Min.: 640 × 480, Max.: 1920 × 1200

Background Format

JPG/JPEG

Subtitles

1

Subtitle Width

32760

Subtitle Font

Supports Xiaomi font and custom font

Screen

128 × 64, OLED screen

Working Temperature

-10°C to 50°C

Storage Humidity

10% to 90%

Working Humidity

10% to 90%

Storage Temperature

-10°C to 50°C

Packaging Size (W × H × D)

589 mm × 103 mm × 410 mm (23.19 inch × 4.06 inch × 16.14 inch)

Net Weight

3.30 kg (7.28 lb.)

Gross Weight

4.50 kg (9.92 lb.)

Dimensions (W × H × D)

440 mm × 44.5 mm × 320.8 mm (17.32 inch × 1.75 inch × 12.63 inch)

Packing List

1 × AC power cord, 1 pair of mounting brackets, 2 × RS-485 green Phoenix contact for central control device, 1 × regulatory compliance and safety information manual, 1 pair of rubber feet, 1 × RF remote control

Product Type

LED controller

Audio Input Interfaces

2

Audio Input Interface Type

1 channel of HDMI input with embedded audio + 1 channel of HDMI in-band audio

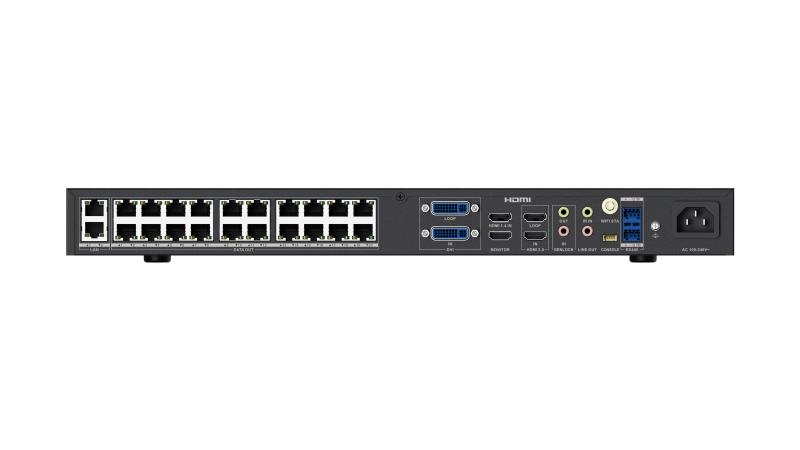

Video Input Interface Type

1 HDMI2.0 + 1 HDMI1.4 + 1 DVI

Video Input Interfaces

3

Max. Video Input Resolution

HDMI 2.0: 4K; HDMI 1.4: 1080P; DVI: 1080P

Video Input Resolution

HDMI 2.0 port: Max. resolution: 4096 × 2160@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 8.84 MP@60 Hz Max. width: 144 to 8192, alignment: 2 alignment Max. height: 144 to 8192, alignment: 1 alignment Supports HDCP 2.2 Interlacing signal input is not supported. HDMI 1.4 port: Max. resolution: 1920 × 1200@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 2.6 MP@60 Hz Max. width: 144 to 4096, alignment: 2 alignment Max. height: 144 to 4096, alignment: 1 alignment Supports HDCP 1.4 Interlacing signal input is not supported. DVI port: Max. resolution: 1920 × 1200@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 2.6 MP@60 Hz Max. width: 144 to 4096, alignment: 2 alignment Max. height: 144 to 4096, alignment: 1 alignment Supports HDCP 1.4 Interlacing signal input is not supported.

Video Input Processing Feature

Processing depth: 8 bit Sampling format: RGB: 444 YUV: 444 YUV: 422 YUV: 420

Max. Video Output Resolution

Mini loading mode: 13000000 Standard loading mode: 13000000

Loading Capacity for Video Output to LED

Mini loading mode: Single port load 650000, Width 144 - 8192, Alignment: multiple of 2, Height 64 - 8192, Alignment: multiple of 1, Max. load does not exceed 13000000; Standard loading mode: Single port load 2925000, Width 144 - 8192, Alignment: multiple of 2; Height 64 - 8192, Alignment: multiple of 1; Max. load does not exceed 13000000

LED Loading Interfaces

20

Video Output Resolution

RJ-45

Video Loop Output Interface

1 channel of HDMI 2.0 + 1 channel of DVI

Video Loop Output Resolution

HDMI 2.0 port: Max. resolution: 4096 × 2160@60 Hz Min. resolution: 320 × 180@60 Hz Output resolution maintains consistency with the video input resolution. Max. width: 144 to 8192, alignment: 2 alignment Max. height: 144 to 8192, alignment: 1 alignment Supports HDCP 2.2 DVI port: Max. resolution: 1920 × 1200@60 Hz Min. resolution: 320 × 180@60 Hz Output resolution maintains consistency with the video input resolution. Max. width: 144 to 4096, alignment: 2 alignment Max. height: 144 to 4096, alignment: 1 alignment Supports HDCP 1.4

Video Live View Output Interfaces

1

Type of Video Live View Output Interface

HDMI 1.4

Video Live View Output Resolution

720p@60 Hz

Loading Mode

Mini loading mode: Single port max load 650000 Standard loading mode: Single port max load 2925000

Audio Output Interface

1 × 3.5 mm audio

Remote Control

Supports IR remote control and RF remote control

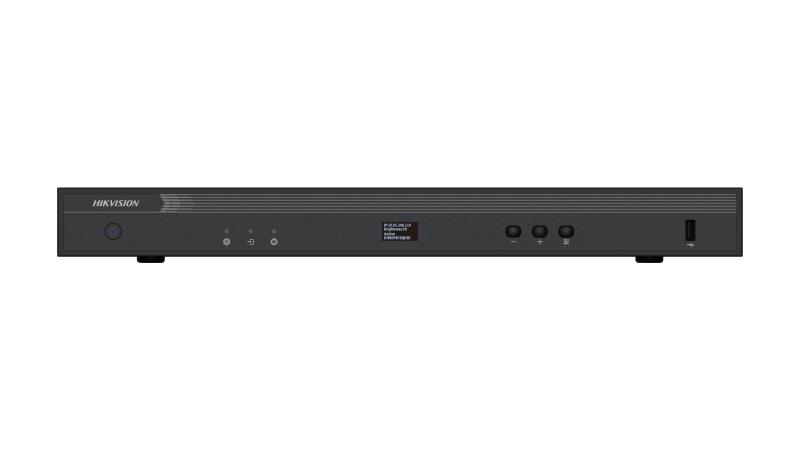

Button

+: increase brightness -: decrease brightness Source: change signal source

Power Switch

Button switch

Indicator

Active: The device is running. Source: The signal source is accessed. Error: The device operation exception occurs.

IR Input

1 × 3.5 mm connector Supports the access of IR remote control.
