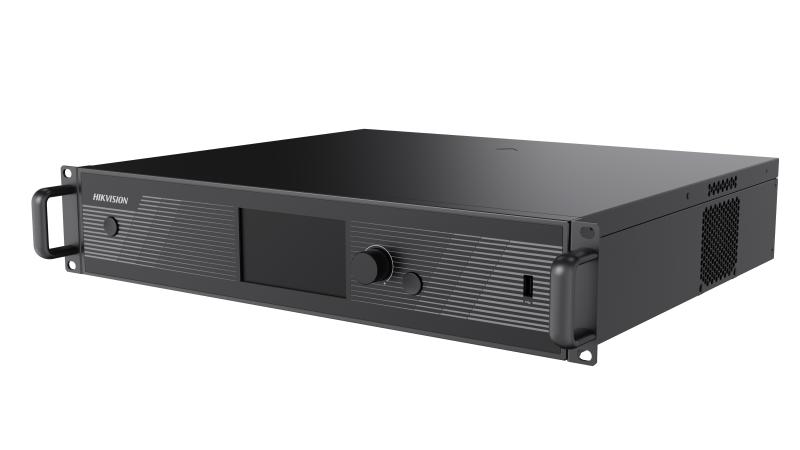

בקר LED DS-DT90C-07HDPSDI24NO/U

מפרט טכני

Brightness Control

1 to 100 tunable (level-by-level white balance)

Input Frame Rate

25 Hz to 120 Hz

Grey Level

1024

Display Color

1 Gigapixel

Processing Depth

8 bit/10 bit

Image Scaling

Supported

Product Model

DS-DT90C-07HDPSI24NO/U

Chassis Height

2 U

Chassis Width

442 mm(17.4 inch)

Light Sensor Port

Supported

Average Consumption

110 W

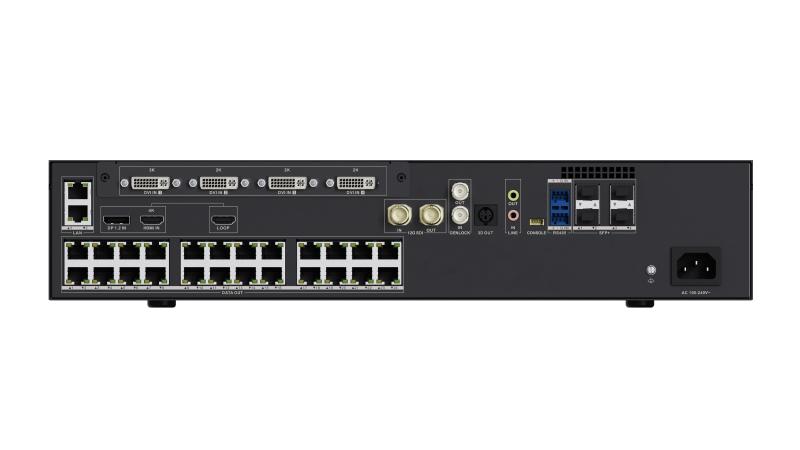

Optical Interface

4 × 10G optical ports; The functionality of the optical interfaces varies depending on the optical port mode. In optical port transmit mode, OPT 1 to OPT 3 transmit data from Ethernet ports 1 to 8, 9 to 16, and 17 to 24, respectively, and OPT 4 is reserved. In optical port receive mode, OPT 1 to OPT 4 serve as optical inputs and Ethernet ports serve as outputs. Supports both single-mode and multi-mode transceiver modules: Transmission distance of single-mode duplex transceiver module ≤ 10 km; Transmission distance of multi-mode duplex transceiver module ≤ 300 m

3D Interface

1 × 3D port; To achieve 3D effect, use this port together with a 3D transmitter and compatible 3D glasses. After enabling 3D effect, when the video source format is side-by-side, top-and-bottom, or front/back frame, the output load capacity of the device is halved.

USB Interface

1 × USB 2.0

Genlock Interface

Genlock interface supports Bi-Level, Tri-Level, and Blackburst. IN: Sync signal input. LOOP: Sync signal loop output. The Genlock input supports frame rates from 23.98 Hz to 60 Hz. Standard Genlock signal generators support cascading of up to 20 devices.

Serial Interface

1 × debugging port (4-pin connector)+ 2× RS-485 port (green Phoenix contact) Baud rate: 115200 Data bit: 8

Power Interface

1, 100 VAC to 240 VAC, 50/60 Hz

Control Network Port

2 × 10/100/1000 Mbps auto-sensing Ethernet port (RJ-45),Used for connecting to external networks, supporting multi-device network cascade management.

Background Image

Supported (quantity: 1, max. resolution: 1920 × 1200, min. resolution: 640 × 480, format: JPG/JPEG)

Screen

Screen type: LCD, dimension: 4.5 inch, resolution: 854 × 480

Working Temperature

0℃ to 50℃(32℉ to 122℉)

Storage Temperature

-10℃ to 50℃(14℉ to 122℉)

Storage Humidity

10% RH to 90% RH, no condensation

Working Humidity

10% RH to 90% RH, no condensation

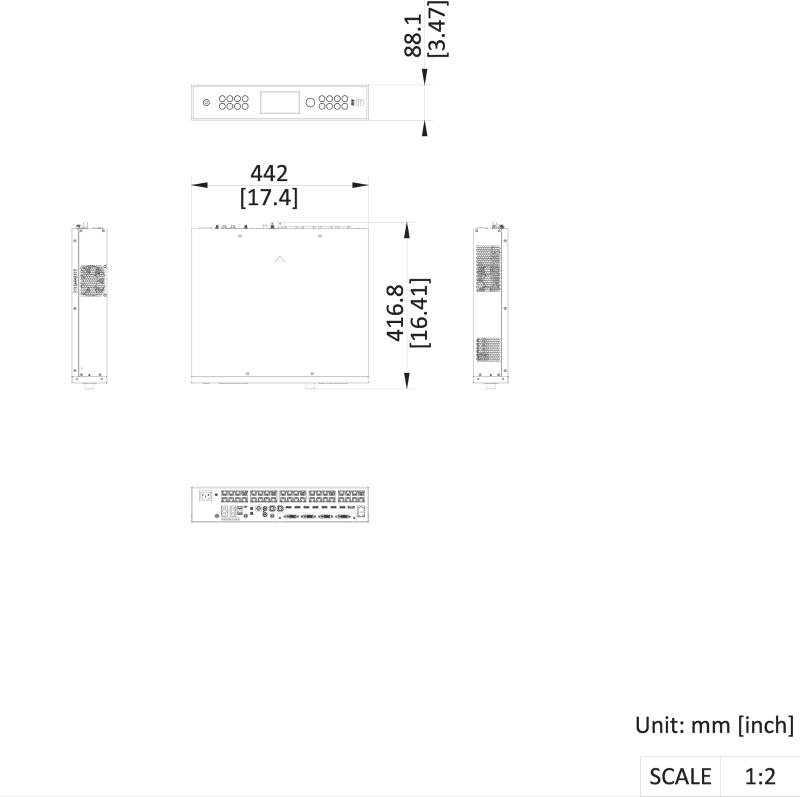

Dimensions (W × H × D)

442 mm × 88 mm × 417 mm (17.40 inch × 3.46 inch × 16.42 inch) (excluding mounting ears)

Packaging Size (W × H × D)

642 mm × 180 mm × 587 mm (25.28 inch × 7.09 inch × 23.11inch)

Net Weight

5.9 kg (13.01 lb)

Gross Weight

8.42 kg (18.56 lb)

Packing List

1 × AC power cord, 2 × terminal block, 1 × regulatory compliance and safety information manual, 1 × RF remote control

Product Type

LED controller

Audio Input Interface

Total 4: 1 × HDMI2.0+ 1× DP+1 × line-in+1 × 12G-SDI

Video Input Interface Type

1-out-of-2 selection (1 × HDMI2.0, 1 × DP1.2) +4 × DVI+1 × 12G-SDI

Video Input Interfaces

6

Max. Video Input Resolution

HDMI2.0/DP1.2/12G-SDI: 4K DVI: 1080P

Video Input Resolution

HDMI2.0/DP1.2 port: Max. resolution: 4096 × 2160@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 8.84 MP@60 Hz Max. width: 144 to 8192, alignment: 2 alignment Max. height: 144 to 8192, alignment: 1 alignment Supports HDCP 2.2. Interlacing signal input is not supported.,DVI port: Max. resolution: 1920 × 1080@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 2.07 MP@60 Hz Max. width: 144 to 2048, alignment: 2 alignment Max. height: 144 to 2048, alignment: 1 alignment Supports HDCP 1.4. Interlacing signal input is not supported.

Video Input Processing Feature

DP1.2/HDMI/12G-SDI2.0/ processing depth: 8 bit/10 bit Sampling format: RGB: 444, YUV: 444, YUV: 422,Built-in DVI processing depth: 8 bit Sampling format: RGB: 444, YUV: 444, YUV: 422

Max. Video Output Resolution

Mini loading mode: 15600000 Standard loading mode: 26000000

Loading Capacity for Video Output to LED

Mini loading mode: Single port load 650000, Width 144 - 16384, Alignment: multiple of 2, Height 64 - 16384, Alignment: multiple of 1, Max. load does not exceed 15600000; Standard loading mode: Single port load 2925000, Width 144 - 16384, Alignment: multiple of 2; Height 64 - 16384, Alignment: multiple of 1; Max. load does not exceed 26000000

LED Loading Interfaces

24

LED Loading Interface Type

RJ-45

Video Loop Output Interface

1-channel HDMI2.0+1-channel 12G-SDI loop output(DVI and HDMI ports correspond to 1-out-of-2 selection for signal loop outputs)

Video Loop Output Resolution

HDMI2.0/12G-SDI port: Max. resolution: 4096 × 2160@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution, total resolution not exceeding 8.84 MP@60 Hz. Max. width: 144 to 8192, width must be a multiple of 2. Max. height: 144 to 8192, height must be a multiple of 1. Supports HDCP2.2

Loading Mode

Mini loading mode: Single port max load 650000 Standard loading mode: Single port max load 2925000

Audio Output Interface

1 × 3.5 mm audio

Remote Control

Supported(RF remote control)

Indicator

Uses the button indicator lights and switch indicator lights.

Power Switch

Button switch Steady On: Device is powered on and running. Off: Device is not powered on or not started.

knob

Uses the knob to select the menu, adjust the parameters and confirm the operation.
