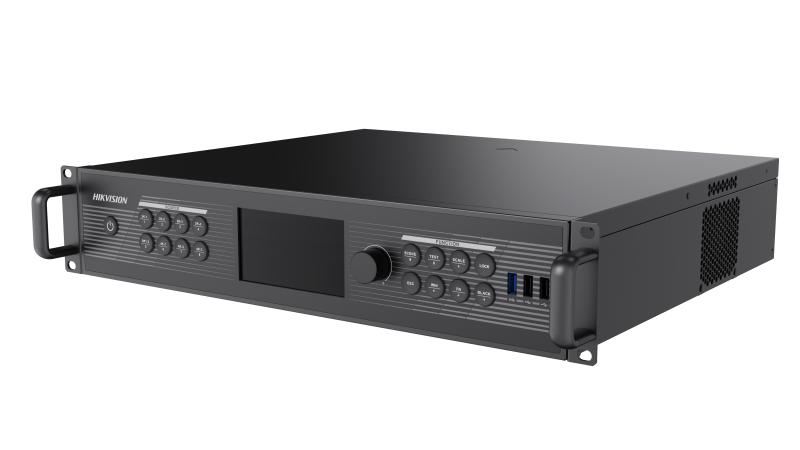

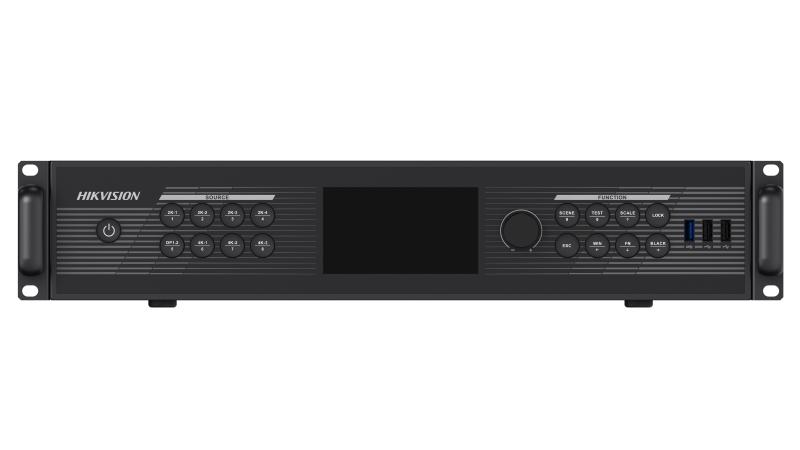

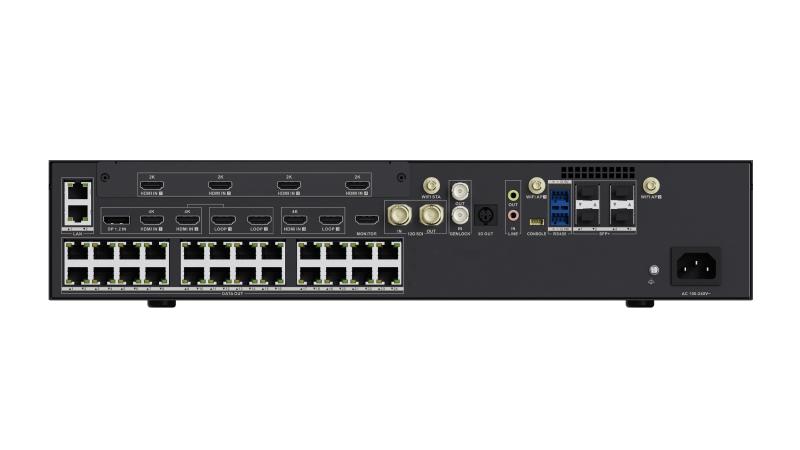

בקר LED DS-DT90P-09HDPSI24NO/U

מפרט טכני

Brightness Control

1 to 100 tunable (level-by-level white balance)

Input Frame Rate

25 Hz to 120 Hz

Grey Level

1024

Display Color

1 Gigapixel

Processing Depth

8 bit/10 bit

Image Scaling

Supported

Product Model

DS-DT90P-09HDPSI24NO/U

Chassis Height

2 U

Chassis Width

442 mm(17.4 inch)

Light Sensor Port

Supported

Average Consumption

110 W

Optical Interface

4 × 10G optical ports; The functionality of the optical interfaces varies depending on the optical port mode. In optical port transmit mode, OPT 1 to OPT 4 transmit data from Ethernet ports 1 to 8, 9 to 16, and 17 to 24, respectively. In optical port receive mode, OPT 1 to OPT 4 serve as optical inputs and Ethernet ports serve as outputs. Supports both single-mode and multi-mode transceiver modules: Transmission distance of single-mode duplex transceiver module ≤ 10 km; Transmission distance of multi-mode duplex transceiver module ≤ 300 m

3D Interface

1 × 3D port; To achieve 3D effect, use this port together with a 3D transmitter and compatible 3D glasses. After enabling 3D effect, when the video source format is side-by-side, top-and-bottom, or front/back frame, the output load capacity of the device is halved.

USB Interface

2 × USB 2.0 + 1 × USB 3.0

Genlock Interface

Genlock interface supports Bi-Level, Tri-Level, and Blackburst. IN: Sync signal input. LOOP: Sync signal loop output. The Genlock input supports frame rates from 23.98 Hz to 60 Hz. Standard Genlock signal generators support cascading of up to 20 devices.

Serial Interface

1 × debugging port (4-pin connector)+ 2× RS-485 port (green Phoenix contact) Baud rate: 115200 Data bit: 8

Power Interface

1, 100 VAC to 240 VAC, 50/60 Hz

Control Network Port

2 × 10/100/1000 Mbps auto-sensing Ethernet port (RJ-45),Used for connecting to external networks, supporting multi-device network cascade management.

Open Windows

Supports up to 7 video signal windows with source duplication (one-to-many). Maximum of 3 × 4K@60Hz + 4 × 2K@60Hz windows and duplication.

Layers per Device

Maximum support for 11 layers: 3 × 4K window + 4 × 2K window + 2 × split-screen window + 1 × subtitle window + 1 × background image window.

Scenes

10

Background Image

Supported (quantity: 1, max. resolution: 1920 × 1200, min. resolution: 640 × 480, format: JPG/JPEG)

Subtitles

1

Subtitle Width

32760

Subtitle Font

Supports Xiaomi font and custom font

Screen

Screen type: LCD, dimension: 4.5 inch, resolution: 854 × 480

Working Temperature

0℃ to 50℃(32℉ to 122℉)

Storage Temperature

-10℃ to 50℃(14℉ to 122℉)

Storage Humidity

10% RH to 90% RH, no condensation

Working Humidity

10% RH to 90% RH, no condensation

Dimensions (W × H × D)

442 mm × 88 mm × 417 mm (17.40 inch × 3.46 inch × 16.42 inch) (excluding mounting ears)

Packaging Size (W × H × D)

642 mm × 180 mm × 587 mm (25.28 inch × 7.09 inch × 23.11inch)

Net Weight

5.9 kg (13.01 lb)

Gross Weight

8.42 kg (18.56 lb)

Packing List

1 × AC power cord, 2 × terminal block, 1 × regulatory compliance and safety information manual, 3 × rod-shaped antenna, 1 × RF remote control

Product Type

LED controller

Audio Input Interface

Total 11: 3 × HDMI2.0+ 1× DP+4 × HDMI1.3+1 × line-in+1 × built-in Android+1 × 12G-SDI

Video Input Interface Type

2-out-of-4 selection (2 × HDMI2.0, 1 × DP1.2, 1 × built-in Android) +1 × HDMI2.0+4 × HDMI1.3+1 × 12G-SDI

Video Input Interfaces

9

Max. Video Input Resolution

HDMI2.0/DP1.2/built-in Android/12G-SDI: 4K HDMI1.3: 1080P

Video Input Resolution

HDMI2.0/DP1.2 port: Max. resolution: 4096 × 2160@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 8.84 MP@60 Hz Max. width: 144 to 8192, alignment: 2 alignment Max. height: 144 to 8192, alignment: 1 alignment Supports HDCP 2.2. Interlacing signal input is not supported.,Built-in Android port: Max. resolution: 4096 × 2160@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 8.84 MP@60 Hz Max. width: 144 to 4096, alignment: 2 alignment Max. height: 144 to 4096, alignment: 1 alignment Supports HDCP 1.4. Interlacing signal input is not supported.,12G-SDI port: Supports input from ST-424 (3G), ST-292 (HD), and ST-259 (SD) standard video sources; Compliant with SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 425M-A, and SMPTE 425M-B protocols; Max. input resolution: 4096 × 2160@60Hz; Supports LOOP output and 10-bit video input; Input resolution and bit depth settings are not supported.,HDMI 1.3 port: Max. resolution: 1920 × 1080@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 2.07 MP@60Hz Max. width: 144 to 2048, alignment: 2 alignment Max. height: 144 to 2048, alignment: 1 alignment Supports HDCP 1.4. Interlacing signal input is not supported.

Video Input Processing Feature

DP1.2/HDMI2.0/12G-SDI processing depth: 8 bit/10 bit Sampling format: RGB: 444, YUV: 444, YUV: 422,Built-in Android processing depth: 8 bit Sampling format: RGB: 444, YUV: 444, YUV: 422,Built-in HDMI1.3 processing depth: 8 bit Sampling format: RGB: 444, YUV: 444, YUV: 422

Built-in Android Resolution

4K

Max. Video Output Resolution

Mini loading mode: 15600000 Standard loading mode: 26000000

Loading Capacity for Video Output to LED

Mini loading mode: Single port load 650000, Width 144 - 16384, Alignment: multiple of 2, Height 64 - 16384, Alignment: multiple of 1, Max. load does not exceed 15600000; Standard loading mode: Single port load 2925000, Width 144 - 16384, Alignment: multiple of 2; Height 64 - 16384, Alignment: multiple of 1; Max. load does not exceed 26000000

LED Loading Interfaces

24

LED Loading Interface Type

RJ-45

Video Loop Output Interface

3-channel HDMI2.0+1-channel 12G-SDI loop output(Two HDMI ports correspond to quad selection for two signal loop outputs)

Video Loop Output Resolution

HDMI2.0/12G-SDI port: Max. resolution: 4096 × 2160@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution, total resolution not exceeding 8.84 MP@60 Hz. Max. width: 144 to 8192, width must be a multiple of 2. Max. height: 144 to 8192, height must be a multiple of 1. Supports HDCP2.2

Video Live View Output Interfaces

1

Type of Video Live View Output Interface

HDMI 1.3

Video Live View Output Resolution

1080p@60 Hz

Loading Mode

Mini loading mode: Single port max load 650000 Standard loading mode: Single port max load 2925000

Audio Output Interface

1 × 3.5 mm audio

System

Android 12

Memory Capacity

4 GB

Storage Capacity

64 GB

CPU

4-core 64-bit ARM cortex-A55 2.0 GHz

Wi-Fi

Supported, STA: 2.4 GHz AP: 2.4 GHz/5 GHz

Bluetooth

Supported (Bluetooth 4.0)

Antenna

3 × rod-shaped antenna

Remote Control

Supported(RF remote control)

Button

8 buttons for 4K/2K video input signals; 8 function buttons: SCALE button: Full-screen scaling ESC button: Backspace LOCK button: Lock TEST button: Test image SCENE button: Scene switch for V series LED controller, program switch for P series LED controller Win button: Window button FN: Toggle button BLACK: Black screen button Up/Down/Left/Right: Multipurpose 0-9 number keys: Multipurpose

Program Material Type

Video, image, audio, document, text, stream media, clock

Program Playback

Supports play, stop, fast forward, and rewind in the material window. Supports play and stop in program playback.

Playback Attribute

Supports configuration of window size, position, and playback time. Supports configuration of programs and schedule. Supports real-time playback control and asynchronous signal transmission configuration.

Video Playback Performance

Supports 1 channel of 4K@60, 4 channels of 1080p@60, or 6 channels of 720p@60 multimedia video playback.

WonderCast Client

Supported

Indicator

Uses the button indicator lights and switch indicator lights.

Power Switch

Button switch Steady On: Device is powered on and running. Off: Device is not powered on or not started.

knob

Uses the knob to select the menu, adjust the parameters and confirm the operation.
