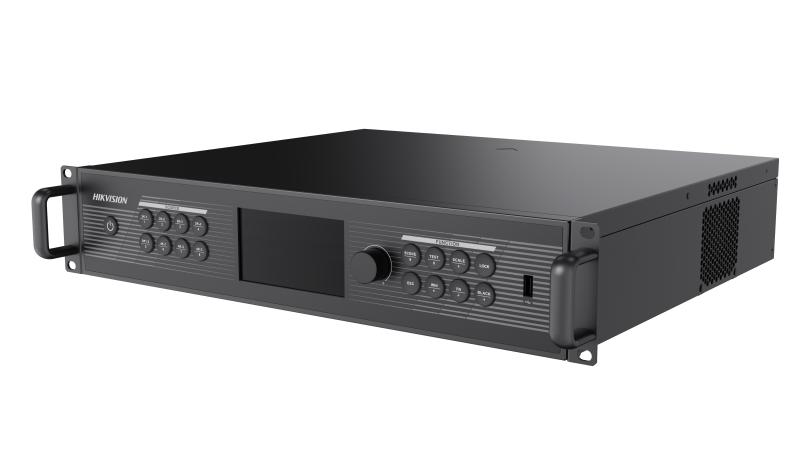

בקר LED DS-DT90V-09HDPSI24NO/U

מפרט טכני

Brightness Control

1 to 100 tunable (level-by-level white balance)

Input Frame Rate

25 Hz to 120 Hz

Grey Level

1024

Display Color

1 Gigapixel

Processing Depth

8 bit/10 bit

Image Scaling

Supported

Product Model

DS-DT90V-09HDPSI24NO/U

Chassis Height

2 U

Chassis Width

442 mm(17.4 inch)

Light Sensor Port

Supported

Average Consumption

110 W

Optical Interface

4 × 10G optical ports; The functionality of the optical interfaces varies depending on the optical port mode. In optical port transmit mode, OPT 1 to OPT 4 transmit data from Ethernet ports 1 to 8, 9 to 16, and 17 to 24, respectively. In optical port receive mode, OPT 1 to OPT 4 serve as optical inputs and Ethernet ports serve as outputs. Supports both single-mode and multi-mode transceiver modules: Transmission distance of single-mode duplex transceiver module ≤ 10 km; Transmission distance of multi-mode duplex transceiver module ≤ 300 m

3D Interface

1 × 3D port; To achieve 3D effect, use this port together with a 3D transmitter and compatible 3D glasses. After enabling 3D effect, when the video source format is side-by-side, top-and-bottom, or front/back frame, the output load capacity of the device is halved.

USB Interface

1 × USB 2.0

Genlock Interface

Genlock interface supports Bi-Level, Tri-Level, and Blackburst. IN: Sync signal input. LOOP: Sync signal loop output. The Genlock input supports frame rates from 23.98 Hz to 60 Hz. Standard Genlock signal generators support cascading of up to 20 devices.

Serial Interface

1 × debugging port (4-pin connector)+ 2× RS-485 port (green Phoenix contact) Baud rate: 115200 Data bit: 8

Power Interface

1, 100 VAC to 240 VAC, 50/60 Hz

Control Network Port

2 × 10/100/1000 Mbps auto-sensing Ethernet port (RJ-45),Used for connecting to external networks, supporting multi-device network cascade management.

Open Windows

Supports up to 7 video signal windows with source duplication (one-to-many). Maximum of 3 × 4K@60Hz + 4 × 2K@60Hz windows and duplication.

Layers per Device

Maximum support for 11 layers: 3 × 4K window + 4 × 2K window + 2 × split-screen window + 1 × subtitle window + 1 × background image window.

Scenes

10

Background Image

Supported (quantity: 1, max. resolution: 1920 × 1200, min. resolution: 640 × 480, format: JPG/JPEG)

Subtitles

1

Subtitle Width

32760

Subtitle Font

Supports Xiaomi font and custom font

Screen

Screen type: LCD, dimension: 4.5 inch, resolution: 854 × 480

Working Temperature

0℃ to 50℃(32℉ to 122℉)

Storage Temperature

-10℃ to 50℃(14℉ to 122℉)

Storage Humidity

10% RH to 90% RH, no condensation

Working Humidity

10% RH to 90% RH, no condensation

Dimensions (W × H × D)

442 mm × 88 mm × 417 mm (17.40 inch × 3.46 inch × 16.42 inch) (excluding mounting ears)

Packaging Size (W × H × D)

642 mm × 180 mm × 587 mm (25.28 inch × 7.09 inch × 23.11inch)

Net Weight

5.9 kg (13.01 lb)

Gross Weight

8.42 kg (18.56 lb)

Packing List

1 × AC power cord, 2 × terminal block, 1 × regulatory compliance and safety information manual, 1 × RF remote control

Product Type

LED controller

Audio Input Interface

Total 10: 3 × HDMI2.0+ 1× DP+4 × HDMI1.3+1 × line-in+1 × 12G-SDI

Video Input Interface Type

2-out-of-3 selection (2 × HDMI2.0, 1 × DP1.2) +1 × HDMI2.0+4 × HDMI1.3+1 × 12G-SDI

Video Input Interfaces

8

Max. Video Input Resolution

HDMI2.0/DP1.2/12G-SDI: 4K HDMI1.3: 1080P

Video Input Resolution

HDMI2.0/DP1.2 port: Max. resolution: 4096 × 2160@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 8.84 MP@60 Hz Max. width: 144 to 8192, alignment: 2 alignment Max. height: 144 to 8192, alignment: 1 alignment Supports HDCP 2.2. Interlacing signal input is not supported.,HDMI1.3 port: Max. resolution: 1920 × 1080@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 2.07 MP@60 Hz Max. width: 144 to 2048, alignment: 2 alignment Max. height: 144 to 2048, alignment: 1 alignment Supports HDCP 1.4. Interlacing signal input is not supported.,12G-SDI port: Supports input from ST-424 (3G), ST-292 (HD), and ST-259 (SD) standard video sources; Compliant with SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 425M-A, and SMPTE 425M-B protocols; Max. input resolution: 4096 × 2160@60Hz; Supports LOOP output and 10-bit video input; Input resolution and bit depth settings are not supported.

Video Input Processing Feature

DP1.2/HDMI2.0/12G-SDI processing depth: 8 bit/10 bit Sampling format: RGB: 444, YUV: 444, YUV: 422,Built-in HDMI1.3 processing depth: 8 bit Sampling format: RGB: 444, YUV: 444, YUV: 422

Max. Video Output Resolution

Mini loading mode: 15600000 Standard loading mode: 26000000

Loading Capacity for Video Output to LED

Mini loading mode: Single port load 650000, Width 144 - 16384, Alignment: multiple of 2, Height 64 - 16384, Alignment: multiple of 1, Max. load does not exceed 15600000; Standard loading mode: Single port load 2925000, Width 144 - 16384, Alignment: multiple of 2; Height 64 - 16384, Alignment: multiple of 1; Max. load does not exceed 26000000

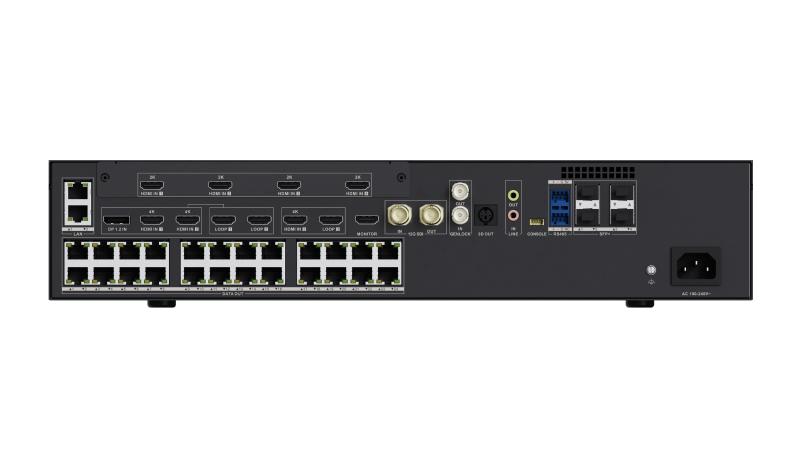

LED Loading Interfaces

24

LED Loading Interface Type

RJ-45

Video Loop Output Interface

3-channel HDMI2.0+1-channel 12G-SDI loop output(Two HDMI ports correspond to 2-out-of-3 selection for signal loop outputs)

Video Loop Output Resolution

HDMI2.0/12G-SDI port: Max. resolution: 4096 × 2160@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution, total resolution not exceeding 8.84 MP@60 Hz. Max. width: 144 to 8192, width must be a multiple of 2. Max. height: 144 to 8192, height must be a multiple of 1. Supports HDCP2.2

Video Live View Output Interfaces

1

Type of Video Live View Output Interface

HDMI 1.3

Video Live View Output Resolution

1080p@60 Hz

Loading Mode

Mini loading mode: Single port max load 650000 Standard loading mode: Single port max load 2925000

Audio Output Interface

1 × 3.5 mm audio

Remote Control

Supported(RF remote control)

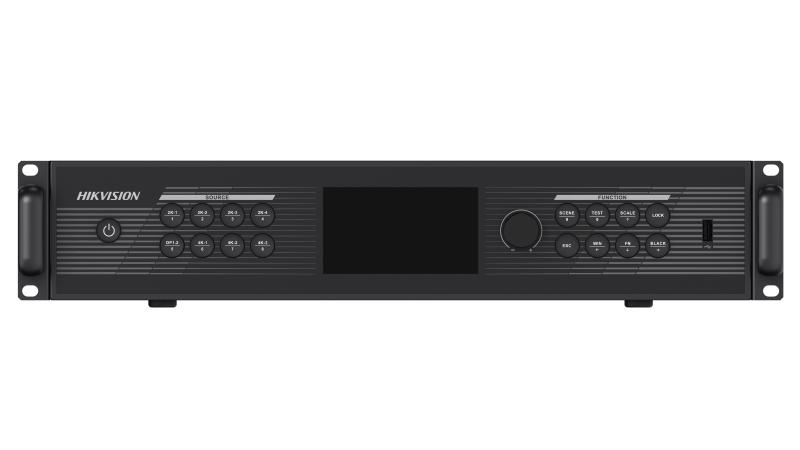

Button

8 buttons for 4K/2K video input signals; 8 function buttons: SCALE button: Full-screen scaling ESC button: Backspace LOCK button: Lock TEST button: Test image SCENE button: Scene switch for V series LED controller, program switch for P series LED controller Win button: Window button FN: Toggle button BLACK: Black screen button Up/Down/Left/Right: Multipurpose 0-9 number keys: Multipurpose

Indicator

Uses the button indicator lights and switch indicator lights.

Power Switch

Button switch Steady On: Device is powered on and running. Off: Device is not powered on or not started.

knob

Uses the knob to select the menu, adjust the parameters and confirm the operation.
