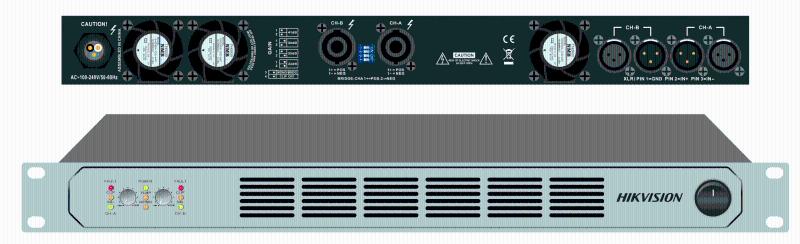

DS-QAPAR25-2 — Professional Amplifier 250W 2-Zone

מפרט טכני

סדרה

Pro Amplifier

Frequency Response

Typical values +0dB, -0.5dB (10% rated output power, 8Ω, 20Hz-20kHz)

Switch

Bridge mode, Connect mode, Stereo mode, gain selection, limiter switch

Rated Power

8Ω/Stereo: 2×250W 4Ω/Stereo: 2×425W 2Ω/Stereo: 2×723W 16Ω/Bridge: 1×500W 8Ω/Bridge: 1×850W 4Ω/Bridge: 1×1445W

THD And SNR

Typical value: 0.01% (10% rated output power, 1 kHz, 8Ω)

Input Impedance (Balanced)

20kΩ (balanced), 10kΩ (non-balanced)

Maximum Input Level

14V

SNR (A-Weighted)

≥100dB(A-Weighted，20Hz-20kHz，8Ω)

Input Range

0.80V/35dB 1.12V/32dB 1.59V/29dB 2.24V/26dB

Audio

XLR four inputs, SPEAKON four outputs

Power

90∽260VAC，50/60Hz

Dimension

483x44x370mm (19x1.73x14.56inch)
