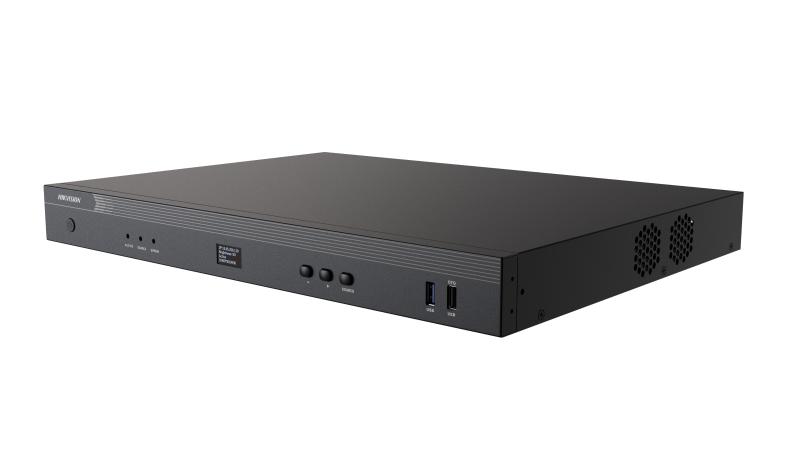

בקר LED DS-TB12

מפרט טכני

Brightness Control

1 to 100 tunable (level-by-level white balance)

Input Frame Rate

25 Hz to 60 Hz

Grey Level

1024

Display Color

1 Gigapixel

Processing Depth

10 bit

Image Scaling

Supported

Product Model

DS-TB12

Chassis Height

1 U

Chassis Width

440 mm(17.32 inch)

Average Consumption

29 W

USB Interface

1 × USB 2.0 + 1 × USB 3.0

Serial Interface

1 × debugging serial port (4-pin connector) + 1 × RS-485 serial port for central control device (green Phoenix contact) + 1 × RS-485 serial port for light sensor (green Phoenix contact) Baud rate: 115200, data bit: 8

Power Interface

1, 100 VAC to 240 VAC, 50/60 Hz

Control Network Port

2 × 10/100/1000 Mbps self-adaptive Ethernet port (RJ-45) Connects to the external network and supports multi-device network cascade management.

Scenes

10

Background Image

Supported (quantity: 1, max. resolution: 1920 × 1200, min. resolution: 640 × 480, format: JPG/JPEG)

Screen

128 × 64, OLED screen

Working Temperature

-20℃ to 60℃(-4℉ to 140℉)

Storage Humidity

10% RH to 90% RH, no condensation

Working Humidity

10% RH to 90% RH, no condensation

Storage Temperature

-20℃ to 60℃(-4℉ to 140℉)

Packaging Size (W × H × D)

589 mm × 103 mm × 410 mm (23.19 inch × 4.06 inch × 16.14inch)

Net Weight

3.24 kg (7.14 lb)

Gross Weight

4.42 kg (9.74 lb)

Dimensions (W × H × D)

440 mm × 44.5 mm × 320.8 mm (17.32 inch × 1.75 inch × 12.63 inch)

Packing List

1 × AC power cord, 2 × mounting bracket, 2 × terminal block, 1 × regulatory compliance and safety information manual, 4 × rubber feet, 3 × rod-shaped Wi-Fi antenna, 1 × remote control

Product Type

LED controller

Audio Input Interface

1 × HDMI 2.0 + 1 × built-in Android

Video Input Interfaces

2

Video Input Interface Type

1 × HDMI 2.0 + 1 × built-in Android

Max. Video Input Resolution

HDMI 2.0: 4K

Video Input Resolution

HDMI2.0 port: Max. resolution: 4096 × 2160@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 8.84 MP@60 Hz Max. width: 144 to 8192, alignment: multiple of 2 Max. height: 144 to 8192,alignment: multiple of 1 Supports HDCP 2.2. Interlacing signal input is not supported.

Video Input Processing Feature

Processing depth: 10 bit Sampling format: RGB: 444 YUV: 444 YUV: 422 YUV: 420

Built-in Android Resolution

4K

Max. Video Output Resolution

7800000

Loading Capacity for Video Output to LED

Single port load 650000, Width 144 - 8192, Height 64 - 8192, Width must be a multiple of 2 and height must be a multiple of 1, Max. load cannot exceed 7800000

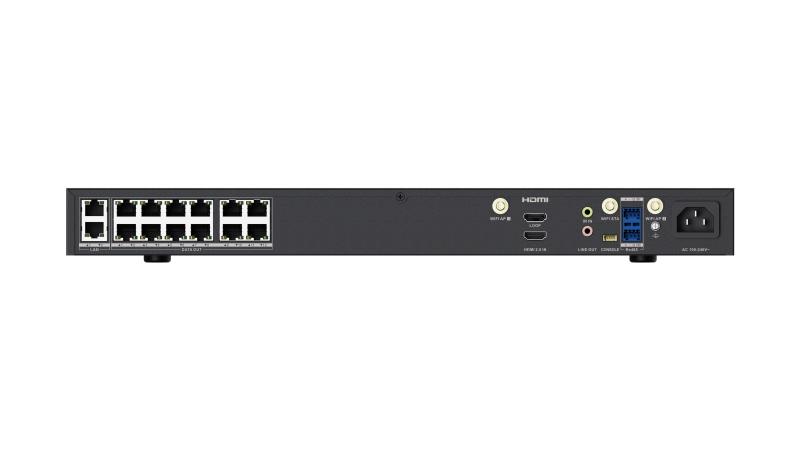

LED Loading Interfaces

12

LED Loading Interface Type

RJ-45

Video Loop Output Interface

1 × HDMI 2.0

Video Loop Output Resolution

HDMI2.0 port: Max. resolution: 4096 × 2160@60 Hz Min resolution: 320 × 180@60 Hz Output resolution matches the input video resolution. Max. width: 144 to 8192, alignment: multiple of 2 Max. height: 144 to 8192, alignment: multiple of 1 Supports HDCP 2.2.

Audio Output Interface

1 × 3.5 mm audio

CPU

4-core 64-bit ARM cortex-A55 2.0 GHz

Memory Capacity

4 GB

Storage Capacity

64 GB

Bluetooth

Supported (Bluetooth 4.0)

Antenna

3 × rod-shaped antenna

Remote Control

Supported(IR & RF)

Wi-Fi

STA 2.4 GHz, AP 2.4&5 GHz

Operating System

Android 12

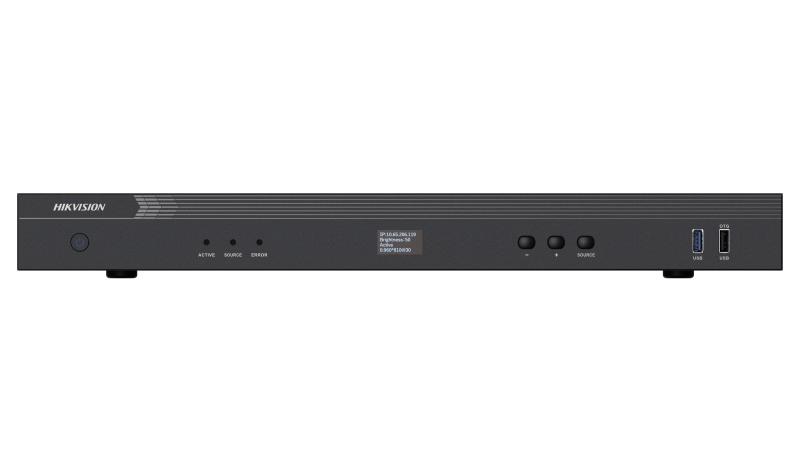

Button

+: increase brightness -: decrease brightness Source: change signal source

Power Switch

Button switch

Program Material Type

Video, image, music, document, text, stream media, clock, network camera

Program Playback

Supports start, stop, fast forward, and rewind of media in the material window. Supports start and stop of program playback.

Playback Attribute

Supports configuration of window size, position, and playback time. Supports program creation and schedule configuration. Supports real-time broadcast control and asynchronous signal transmission configurations.

Video Playback Performance

Supports multimedia video playback of 1 channel at 4K@60 Hz, 4 channels at 1080p@60 Hz, or 6 channels at 720p@60 Hz.

Indicator

Active: The device is running. Source: The signal source is connected. Error: The device operation exception occurs.

IR Input

1 × 3.5 mm connector Supports the access of IR remote control.
