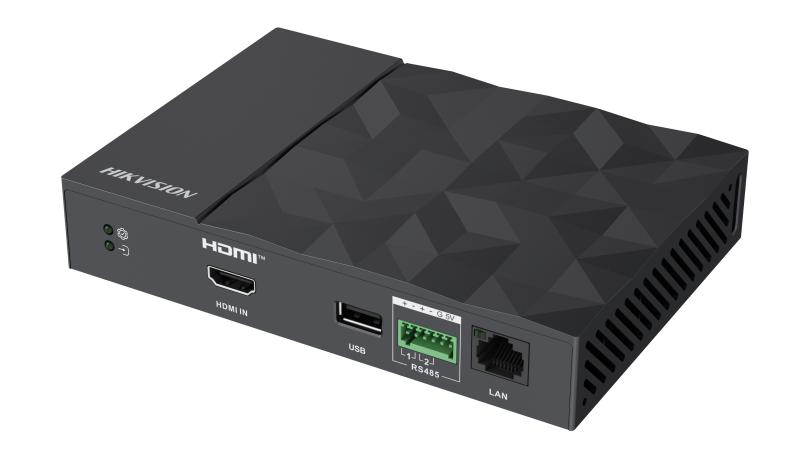

בקר LED DS-TC02

מפרט טכני

Brightness Control

1 to 100 tunable (level-by-level white balance)

Input Frame Rate

25 Hz to 60 Hz

Grey Level

256

Display Color

16 MP

Processing Depth

8 bit

Image Scaling

Supported

Product Model

DS-TC02

Chassis Height

28.9 mm(1.14 inch)

Chassis Width

156 mm(6.14 inch)

Average Consumption

11 W

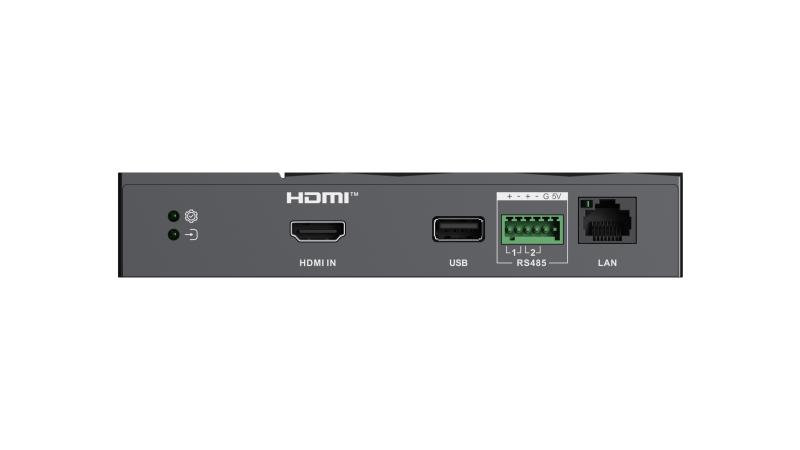

USB Interface

1 × USB 2.0

Serial Interface

1 × RS-485 serial port for central control device (green Phoenix contact, baud rate: 115200, data bit: 8)+1 × RS-485 serial port for temperature humidity sensor (green Phoenix contact, baud rate: 115200, data bit: 8)

Power Interface

1 × 12V, Φ2.1

Control Network Port

1 × 10/100/1000 Mbps auto-sensing Ethernet port (RJ-45),Connects to the external network.

Background Image

Supported (quantity: 1, max. resolution: 1920 × 1200, min. resolution: 640 × 480, format: JPG/JPEG)

Working Temperature

-20℃ to 60℃(-4℉ to 140℉)

Storage Humidity

10% RH to 90% RH, no condensation

Working Humidity

10% RH to 90% RH, no condensation

Storage Temperature

-20℃ to 60℃(-4℉ to 140℉)

Packaging Size (W × H × D)

210 mm × 85 mm × 127 mm (8.27 inch × 3.35 inch × 5inch)

Net Weight

0.18 kg (0.4 lb)

Gross Weight

0.31 kg (0.68 lb)

Dimensions (W × H × D)

156 mm × 28.9 mm × 110 mm (6.14 inch × 1.14 inch × 4.33 inch)

Packing List

1 × DC adapter, 1 × terminal block, 1 × regulatory compliance and safety information manual

Product Type

LED controller

Audio Input Interface

1 × HDMI input with embedded audio

Video Input Interface Type

HDMI1.3

Video Input Interfaces

1

Max. Video Input Resolution

1080p

Video Input Processing Feature

Processing depth: 8 bit Sampling format: RGB: 444 YUV: 444 YUV: 422

Video Input Resolution

HDMI1.3 port: Max. resolution: 1920 × 1080@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 2.07 MP@60 Hz Max. width: 320 to 2048, alignment: multiple of 4 Max. height: 180 to 2048, alignment: multiple of 2 Supports HDCP 1.4. Interlacing signal input is not supported.

Built-in Android Resolution

Same as output resolution

Max. Video Output Resolution

1300000

Loading Capacity for Video Output to LED

Single port load 650000, Width 144 - 2048, Height 64 - 2048, Width must be a multiple of 2 and height must be a multiple of 1, Max. load cannot exceed 1300000

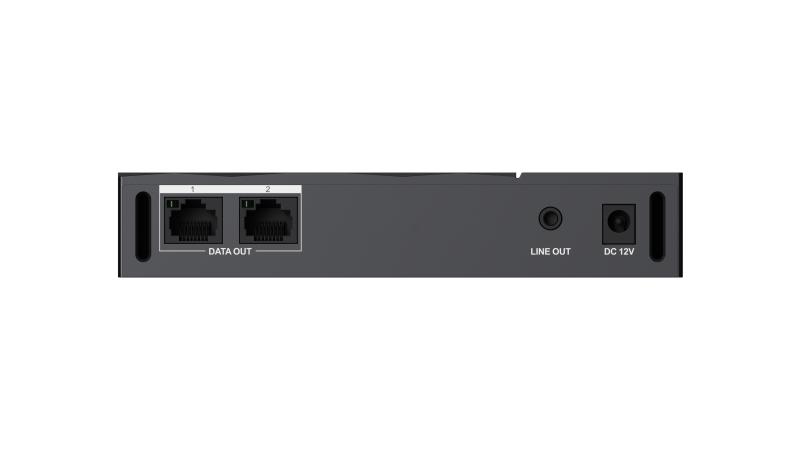

LED Loading Interfaces

2

LED Loading Interface Type

RJ-45

Audio Output Interface

1 × 3.5 mm audio

Remote Control

Supported(RF)

Indicator

Active: The device is running. Source: The signal source is connected.

Power Switch

Not supported
