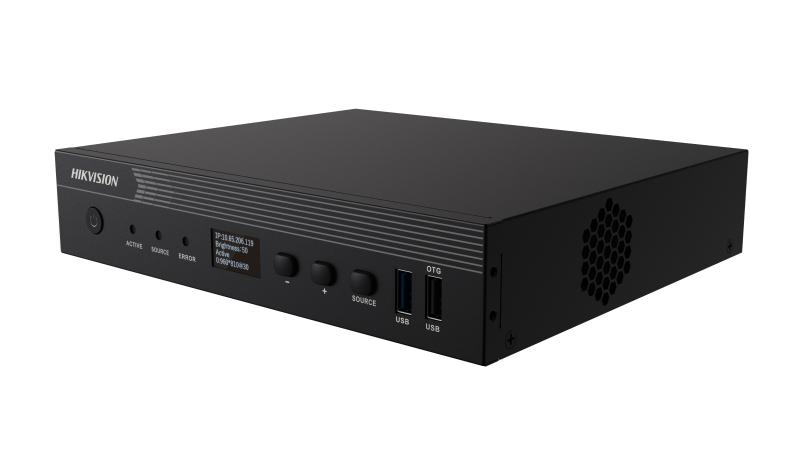

בקר LED DS-TU06

מפרט טכני

Brightness Control

1 to 100 tunable (level-by-level white balance)

Input Frame Rate

25 Hz to 60 Hz

Grey Level

256

Display Color

16 MP

Processing Depth

8 bit

Image Scaling

Supported

Product Model

DS-TU06

Chassis Height

1 U

Chassis Width

Half width

Average Consumption

16.5 W

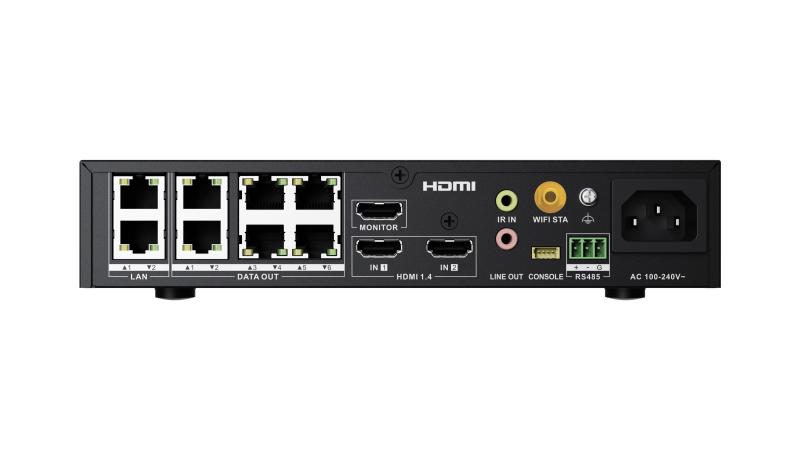

USB Interface

1 × USB 2.0 + 1 × USB 3.0

Serial Interface

1 × debugging serial port (4-pin connector) + 1 × RS-485 serial port for central control device (green Phoenix contact) Baud rate: 115200, data bit: 8

Power Interface

1, 100 VAC to 240 VAC, 50/60 Hz

Control Network Port

2 × 10/100/1000 Mbps self-adaptive Ethernet port (RJ-45) Connects to the external network and supports multi-device network cascade management.

Open Windows

3 signal source windows + 2 image windows + 1 scrolling text window + 1 background window

Layers per Device

7

Scenes

10

Background Image

Supported (quantity: 1, max. resolution: 1920 × 1200, min. resolution: 640 × 480, format: JPG/JPEG)

Subtitles

Total quantity: 1

Subtitle Width

32760

Subtitle Font

Supports Xiaomi font and custom font

Screen

128 × 64, OLED screen

Working Temperature

-20℃ to 60℃(-4℉ to 140℉)

Storage Humidity

10% RH to 90% RH, no condensation

Working Humidity

10% RH to 90% RH, no condensation

Storage Temperature

-20℃ to 60℃(-4℉ to 140℉)

Packaging Size (W × H × D)

353 mm × 89 mm × 237 mm (13.9 inch × 3.5 inch × 9.33inch)

Net Weight

1.05 kg (2.31 lb)

Gross Weight

1.64 kg (3.62 lb)

Dimensions (W × H × D)

210 mm × 42 mm × 180 mm (8.27 inch × 1.65 inch × 7.09 inch)

Packing List

1 × AC power cord, 1 × mounting bracket, 1 × terminal block, 1 × regulatory compliance and safety information manual, 1 × rod-shaped Wi-Fi antenna, 1 × remote control

Product Type

LED controller

Audio Input Interface

2 × HDMI 1.4 + 1 × built-in Android

Video Input Interface Type

2 × HDMI 1.4 + 1 × built-in Android

Video Input Interfaces

3

Max. Video Input Resolution

1920 × 1200

Video Input Resolution

HDMI1.4 port: Max. resolution: 1920 × 1200@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 2.6 MP@60 Hz Max. width: 144 to 4096, alignment: multiple of 2 Max. height: 144 to 4096,alignment: multiple of 1 Supports HDCP 1.4. Interlacing signal input is not supported.,Built-in Android Max. resolution: 1920 × 1200@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 2.6 MP@60 Hz Max. width: 144 to 4096, alignment: multiple of 2 Max. height: 144 to 4096, alignment: multiple of 1 Supports HDCP 1.4. Interlacing signal input is not supported.

Video Input Processing Feature

Processing depth: 8 bit Sampling format: RGB: 444 YUV: 444 YUV: 422

Max. Video Output Resolution

3900000

Loading Capacity for Video Output to LED

Single port load 650000, Width 144 - 5120, Height 64 - 5120, Width must be a multiple of 2 and height must be a multiple of 1, Max. load cannot exceed 3900000

LED Loading Interfaces

6

LED Loading Interface Type

RJ-45

Video Live View Output Interfaces

1

Type of Video Live View Output Interface

HDMI 1.4

Video Live View Output Resolution

720p@60 Hz

Audio Output Interface

1 × 3.5 mm audio

CPU

4-core 64-bit ARM cortex-A55 2.0 GHz

Memory Capacity

4 GB

Storage Capacity

64 GB

Bluetooth

Supported (Bluetooth 4.0)

Antenna

1 × rod-shaped antenna

Remote Control

Supported(IR & RF)

Wi-Fi

2.4 GHz

Operating System

Android 12

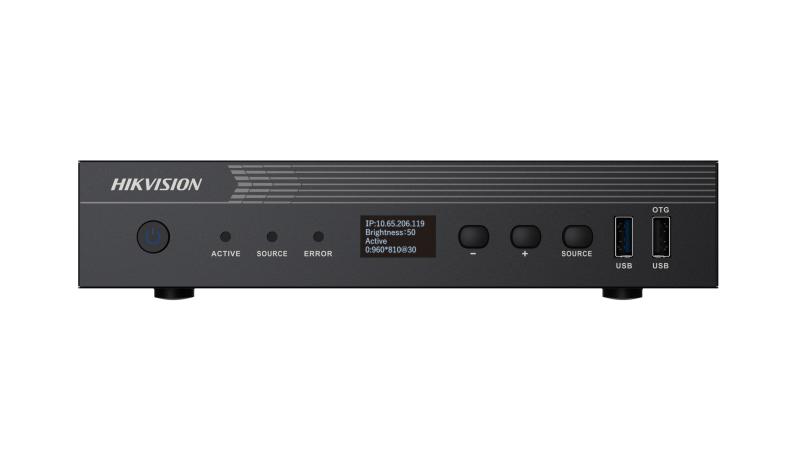

Button

+: increase brightness -: decrease brightness Source: change signal source

Power Switch

Button switch

Program Material Type

Video, image, music, document, text, stream media, clock, network camera, HDMI signal source

Program Playback

Supports start, stop, fast forward, and rewind of media in the material window. Supports start and stop of program playback.

Playback Attribute

Supports configuration of window size, position, and playback time. Supports program creation and schedule configuration. Supports real-time broadcast control and asynchronous signal transmission configurations.

Video Playback Performance

Supports multimedia video playback of 1 channel at 4K@60 Hz, 4 channels at 1080p@60 Hz, or 6 channels at 720p@60 Hz.

WonderCast Client

Supported

Indicator

Active: The device is running. Source: The signal source is connected. Error: The device operation exception occurs.

IR Input

1 × 3.5 mm connector Supports the access of IR remote control.
