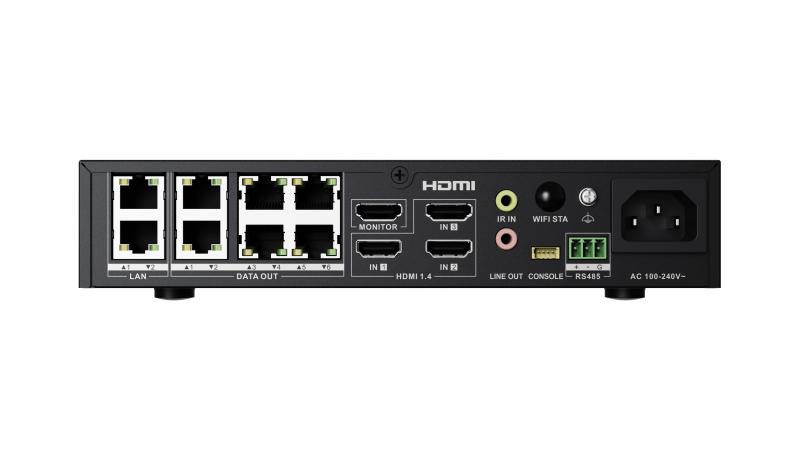

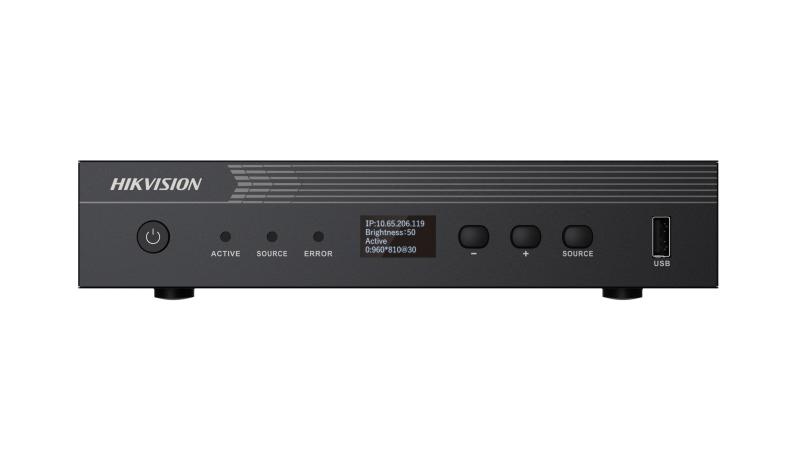

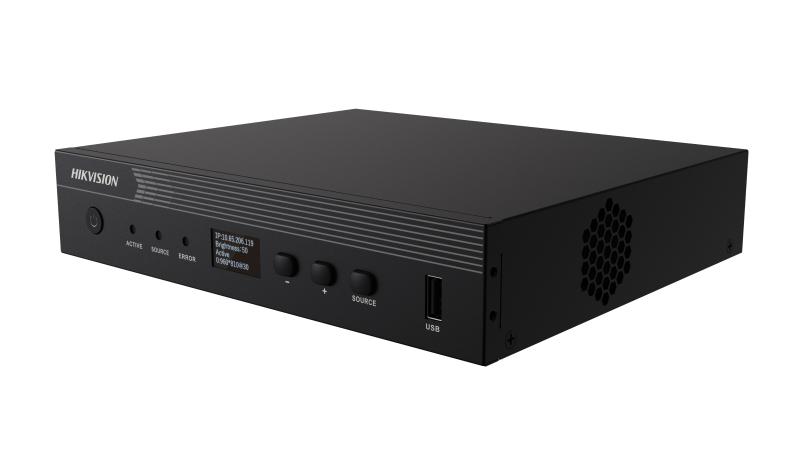

בקר LED DS-TV06

מפרט טכני

Brightness Control

1 to 100 tunable (level-by-level white balance)

Input Frame Rate

25 Hz to 60 Hz

Grey Level

256

Display Color

16 MP

Processing Depth

8 bit

Image Scaling

Supported

Product Model

DS-TV06

Chassis Height

1 U

Chassis Width

Half width

Average Consumption

16.5 W

USB Interface

1 × USB 2.0

Serial Interface

1 × debugging serial port (4-pin connector) + 1 × RS-485 serial port for central control device (green Phoenix contact) Baud rate: 115200, data bit: 8

Power Interface

1, 100 VAC to 240 VAC, 50/60 Hz

Control Network Port

2 × 10/100/1000 Mbps self-adaptive Ethernet port (RJ-45) Connects to the external network and supports multi-device network cascade management.

Open Windows

3 signal source windows + 2 image windows + 1 scrolling text window + 1 background window

Layers per Device

7

Scenes

10

Background Image

Supported (quantity: 2, max. resolution: 1920 × 1200, min. resolution: 640 × 480, format: JPG/JPEG)

Subtitles

1

Subtitle Width

32760

Subtitle Font

Supports Xiaomi font and custom font

Screen

128 × 64, OLED screen

Working Temperature

-20℃ to 60℃(-4℉ to 140℉)

Storage Humidity

10% RH to 90% RH, no condensation

Working Humidity

10% RH to 90% RH, no condensation

Storage Temperature

-20℃ to 60℃(-4℉ to 140℉)

Packaging Size (W × H × D)

353 mm × 89 mm × 237 mm (13.9 inch × 3.5 inch × 9.33inch)

Net Weight

0.91 kg (2.01 lb)

Gross Weight

1.48 kg (3.26 lb)

Dimensions (W × H × D)

210 mm × 42 mm × 177.4 mm (8.27 inch × 1.65 inch × 6.98 inch)

Packing List

1 × AC power cord, 1 × connecting bracket, 1 × mounting bracket, 1 × terminal block, 1 × regulatory compliance and safety information manual, 1 × remote control

Product Type

LED controller

Audio Input Interface

3 × HDMI input with embedded audio

Video Input Interfaces

3

Video Input Interface Type

HDMI 1.4

Max. Video Input Resolution

1080p

Video Input Resolution

HDMI1.4 port: Max. resolution: 1920 × 1200@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 2.6 MP@60 Hz Max. width: 144 to 4096, alignment: multiple of 2 Max. height: 144 to 4096, alignment: multiple of 1 Supports HDCP 1.4. Interlacing signal input is not supported.

Video Input Processing Feature

Processing depth: 8 bit Sampling format: RGB: 444 YUV: 444 YUV: 422

Max. Video Output Resolution

3900000

Loading Capacity for Video Output to LED

Single port load 650000, Width 144 - 5120, Height 64 - 5120, Width must be a multiple of 2 and height must be a multiple of 1, Max. load cannot exceed 3900000

LED Loading Interfaces

6

LED Loading Interface Type

RJ-45

Video Live View Output Interfaces

1

Type of Video Live View Output Interface

HDMI 1.4

Video Live View Output Resolution

720p@60 Hz

Audio Output Interface

1 × 3.5 mm audio

Remote Control

Supported(IR & RF)

Button

+: increase brightness -: decrease brightness Source: change signal source

Power Switch

Button switch

Indicator

Active: The device is running. Source: The signal source is connected. Error: The device operation exception occurs.

IR Input

1 × 3.5 mm connector Supports the access of IR remote control.
